CRD-XP
Page 4 of 16 Subject to technical changes CRD-XP_2005-12_EN

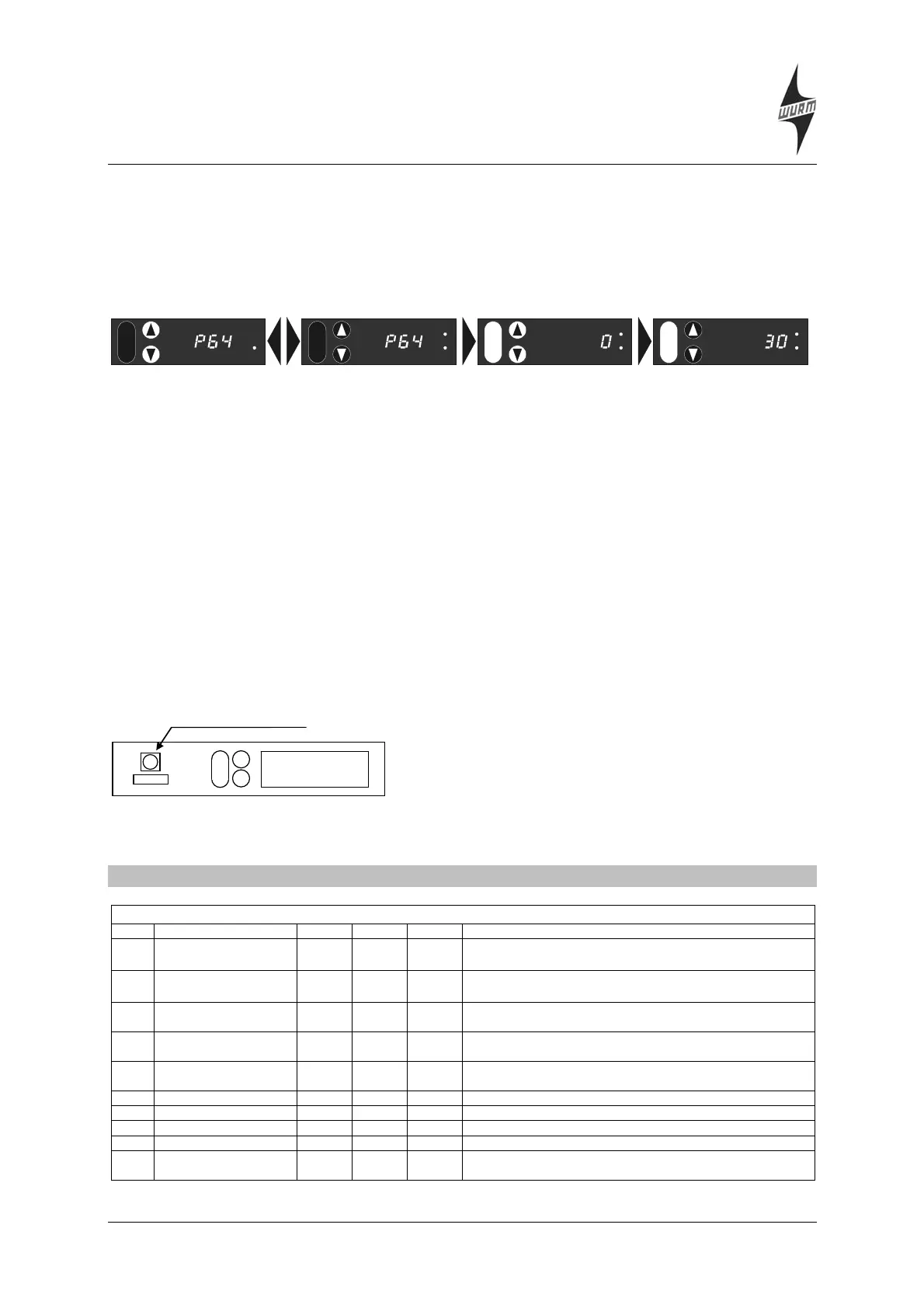

Adjusting set values
1. Select the parameter to be adjusted (having previously enabled the advanced level if necessary).
2. Set value adjustment enabled.
Press all three keys down simultaneously for 5 seconds. The "Set value adjustment enabled" LED
flashes.
3. Change the values using the ▲ or ▼ keys to change values.
P
P
P
P
5 Sek.
When changing the parameters, it is not necessary to re-enable access to make further set value
adjustments.
Actual values are only displayed, they cannot be adjusted even if the
"Set value adjustment
enabled" LED is flashing.
4. To disable set value adjustment, press all three keys simultaneously again for 5 seconds.
If no key is pressed within 2 minutes, the display automatically returns to the standard level and
set value adjustment is disabled. The return is always to the temperature display which is defined
by parameter P60.
Set address
Fundamentally, one can proceed as described above to set the device address to Parameter P64. But
additionally, there is the possibility of changing directly to Parameter P64 with the help of the service
button arrayed behind the front plate. For this, the service button must be briefly actuated 3 times. The
advanced level is automatically released.
Service button
8:88
3 Description of parameters
Standard level: Actual values and set values
No. Parameter Plant Min. Max. Description
P00 Control actual value -50°C +70°C
Current actual value of temperature control
Temperature of control probe F1
P01 Current control set
value
-50°C +70°C
Display of the actual set value of the control in consideration
of shift P13 and sharp set value P14
P02 Set value 7°C -50°C +70°C Input of basic set value for the control
(Setting range is defined with P11 and P12 advanced level)
P03 Actual value
Reg/Control probe F1
-50°C +65°C Temperature of control probe F1
P04 Actual value
Limit probe F2
-50°C +65°C Temperature of defrost limit probe F2
P05 Not used
P06 Defrost time min. Duration of last defrost
P07 Melting time min. Duration of last melting phase
P08 Operating time % Operating time during last 60 minutes
P09 Manual defrost OFF On Manual start and stop of a defrost => Chapter 6
Manual defrost must be enabled via parameter P65!
