Improper use
The personal protection switch must not be used
with:
• Refrigerators or similar applications (no auto-
matic reactivation following power failure).
• Machines with high activation currents.
• IT power networks (isolating transformers, cur-
rent generators, etc.) The personal protection
switch will not function without wiring that
includes a protective earth conductor.
Technical Data
Item 0774 610 001
Rated voltage: 230 V AC / 50 Hz
Rated current: 16 A
Rated leakage current: 30 mA
Ambient temperature: 25°C to +45°C
Tightening torque:
— Housing screw 180 Ncm
— Strain relief: 80 Ncm
— Contact screw: 80 Ncm
Cable diameter: Ø 9–14 mm
Degree of protection: IP 55
Dimensions (WxHxD): 54x57x239 mm
Device elements (g. I)
1 Bend relief
2 IN port
3 OUT port
4 ON / OFF switch
5 LED (red)
6 LED (green)

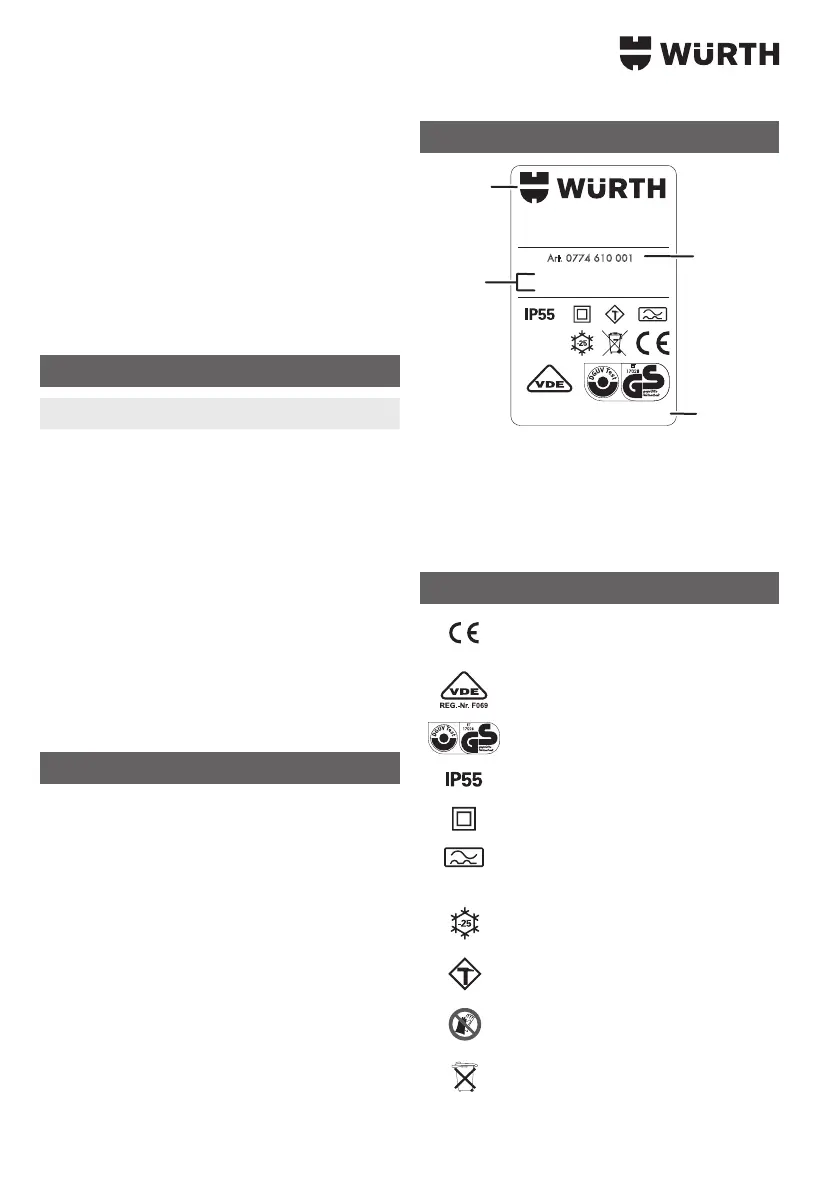

Type plate
YYYY MM
REG.-Nr. F069
Adolf Würth GmbH & Co. KG
Reinhold-Würth-Straße 12–17
74653 Künzelsau
Art. 0774 610 001
U
n
230V~ / f
n
50Hz
I
n
16A / I∆
n
30mA
1702
3
4
1
2
1 Manufacturer
2 Technical data
3 Item number
4 Production date
Symbols on the device
Compliance with
EU directives
VDE mark
17028
GS mark of conformity
Dust-proof/resistant to water spray
Protection class II (insulated)
The RCD trips both with AC residual
current faults and also with pulsing
DC residual currents.
Residual current circuit breaker for
use down to -25 °C.
For use in hostile environments
Do not dispose of the device in
