TRANSMITTER MOUNTING OPTIONS
Attaching the Beltpack to Clothing

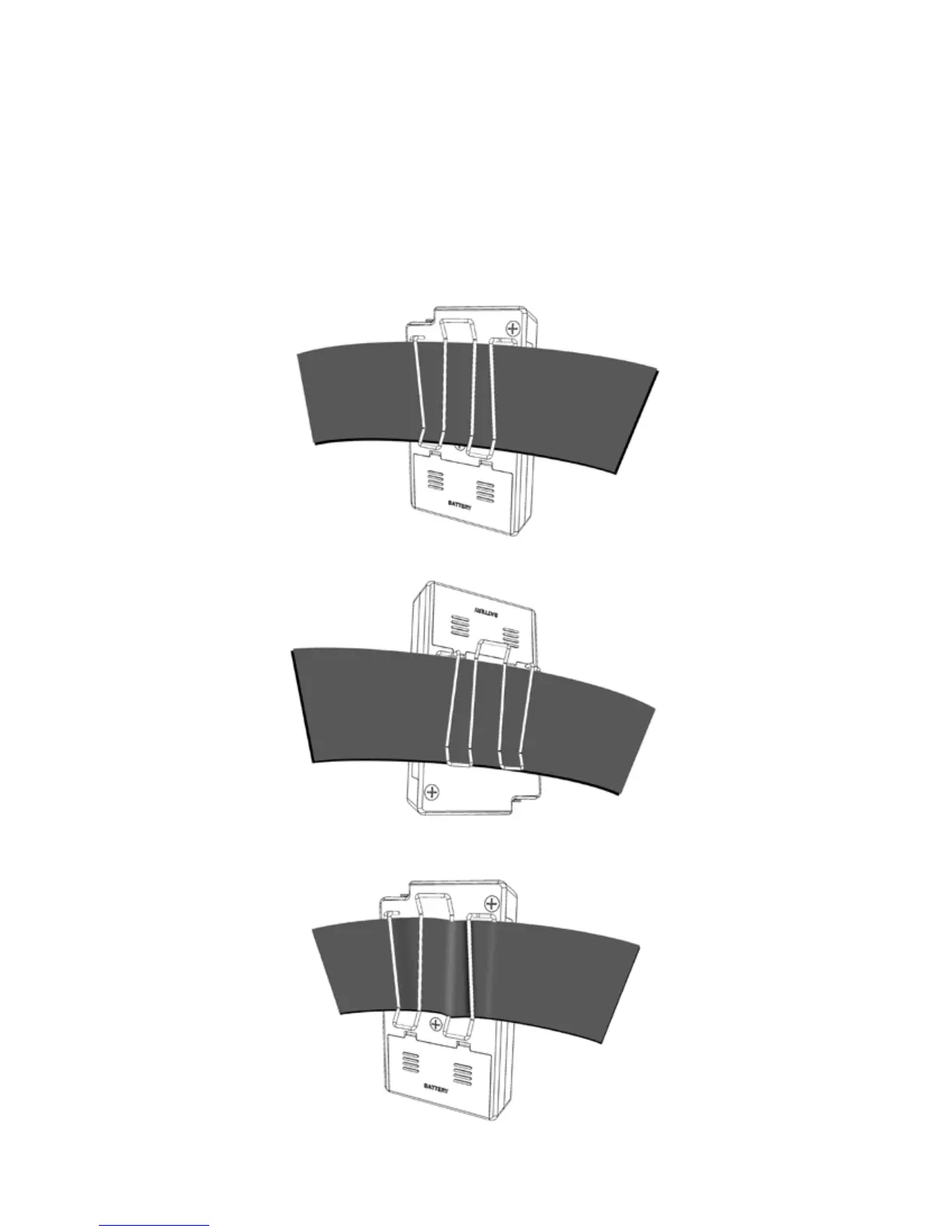

1. The bodypack transmitter is attached to clothing (e.g. guitar strap, belt, waistband) with the supplied belt clip as shown
in figure 14.
2. The clip is detachable so that you can also attach the bodypack transmitter with the input jack facing downwards. To do
so, remove the clip and remount it reversing the orientation as shown in figure 15.
3 For thinner nylon-type guitar straps you can secure the transmitter by weaving the strap through the clip as shown in
figure 16.
10
FIGURE 14
FIGURE 15
FIGURE 16
