XDR95 DIGITAL UHF WIRELESS SYSTEM COMPONENTS

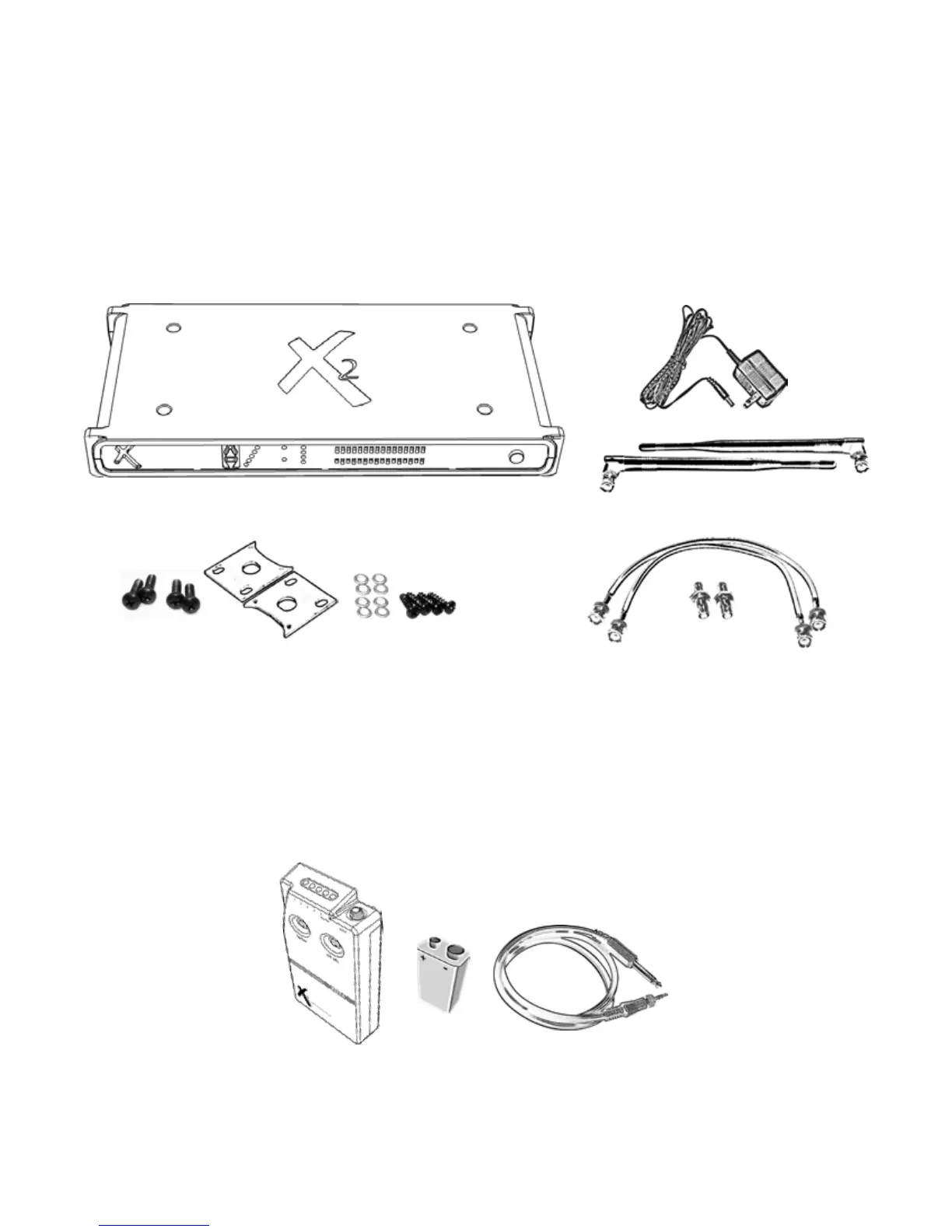

System Components (see figure 1):
• (1) XDR4 Digital UHF receiver
• (1) XAC4 (9V DC 500mA power supply for XDR4)
• (2) 1/2 wave antenna
• (1) rackmounting kit (includes rack ears and the necessary mounting hardware (see installation instructions on page 5)
• (1) front-mount antenna kit (includes necessary hardware - see front-mount antenna installation instructions on page 5)
2
FIGURE 1
Bodypack systems also include (see figure 2):
• (1) XDT4 Digital UHF transmitter
• (1) 9V Alkaline Battery
• 1/4” to 1/8” locking connector instrument cable - or lavaliere microphone - or - headset microphone
FIGURE 2
