Connecting the device to a power supply
Ensure that the power cable is unplugged before connecting further components.
Components already connected to the device should also be unplugged from the po-
wer supply.
› Make sure connections have been made accurately and not reversed, this means for example
left to left and right to right.
Connecting analog end devices
› Only use standard, shielded audio cables when connecting audio sources. Other cables may
cause interference. Only connect devices equipped with the appropriate jacks, in order to avoid
distortion and mismatching, which in turn could cause damage to the device. Before connec-
ting jacks, make sure the correct terminal has been selected. Audio cables/plugs, as well as the
terminals on most devices, are normally red and white to help distinguish what plug is to be
connected to what jack. Connection cables are not included in delivery and must be purchased
separately at your local dealer.
› You have the opportunity to use the following jacks for end devices:
Phono › This connection is only intended for record players!
Tape/Aux, DVD/CD, Tuner, DAB › This connection is for connecting devices, such as a DVD
or CD player, to the respective markings. These markings
serve in general as a way of helping you make the proper
connections. From a technical point of view you can also
connect a tuner to the DVD/CD or DAB jack.

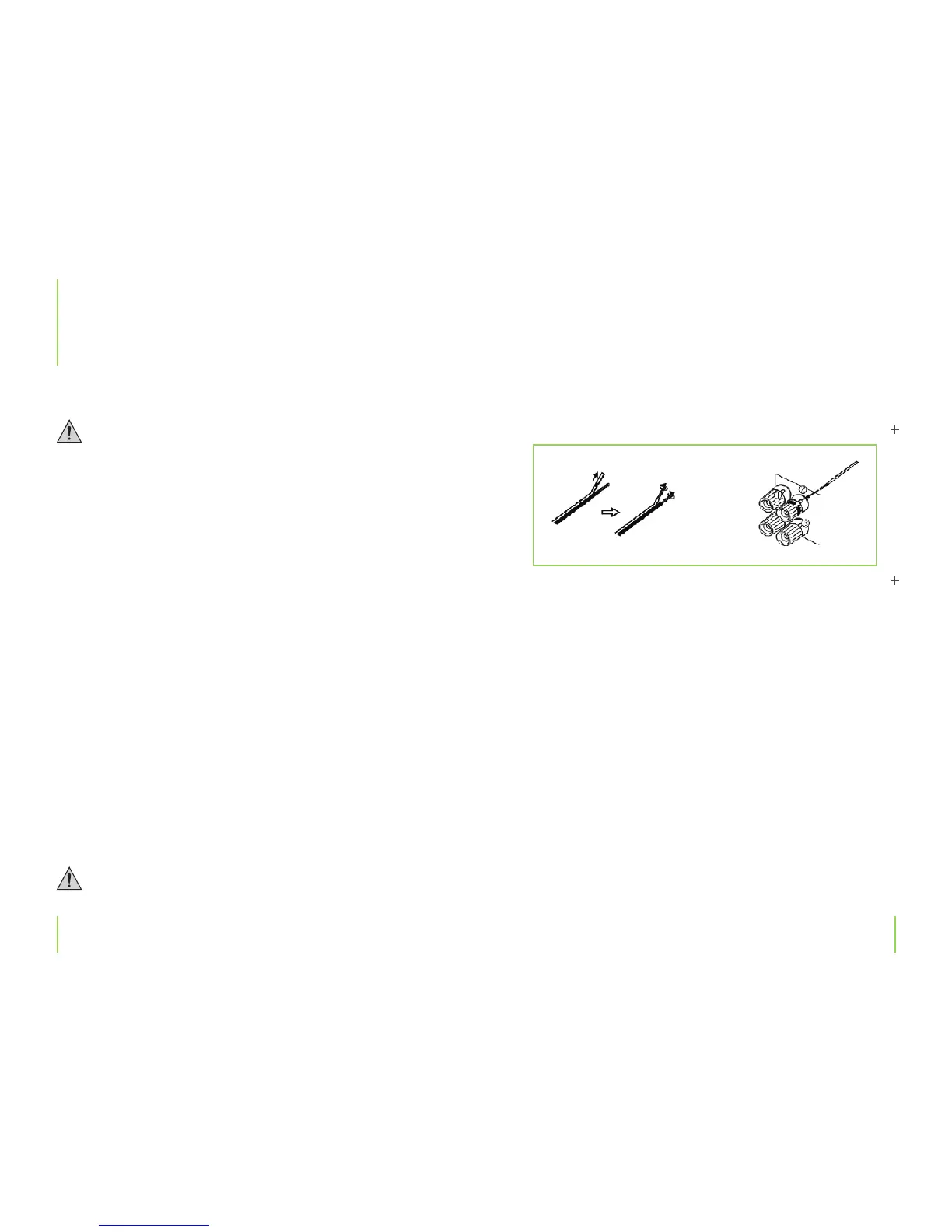

Connecting speakers
A two-core wire connection is required to connect the speakers. Deisolate all wiring
points. Ensure that cables can not be damaged by any sharp edges.
Chapter 5 ConnectionsChapter 5 Connections
Only use speakers with a su cient power rating (2 x 40 watts RMS at 8 ohm and 2 x
50 watts RMS at 4 ohm).
› Connect the loudspeakers directly to the ampli er. Never use an earphone adapter or distribu-
tion box. In case of doubt, consult a specialist for further information.
› Make sure that the loudspeakers are correctly polarized, i.e. that plus to plus terminals and mi-
nus to minus terminals correspond.
› The ampli er has been developed for operation with loudspeakers that have an impedance
rating of 4 to 16 ohms.
› Never use loudspeakers with a lower impedance rating.
› Speakers should only be connected to these respective outputs.
› Connect the positive (+) terminal of the left speaker to the red speaker terminal.
› Connect the negative (–) terminal of the left speaker to the black speaker terminal.
› Connect the positive (+) terminal of the right speaker to the red speaker terminal.
› Connect the negative (–) terminal of the right speaker to the black speaker terminal.
5
Connections
