FC Backup Power
ESC (Electronic Speed Controller)
P30 Plant Protection UAS
Main structural components of P30 Plant Protection UAS are as follows:
9 8 7
(Above) Figure 1.

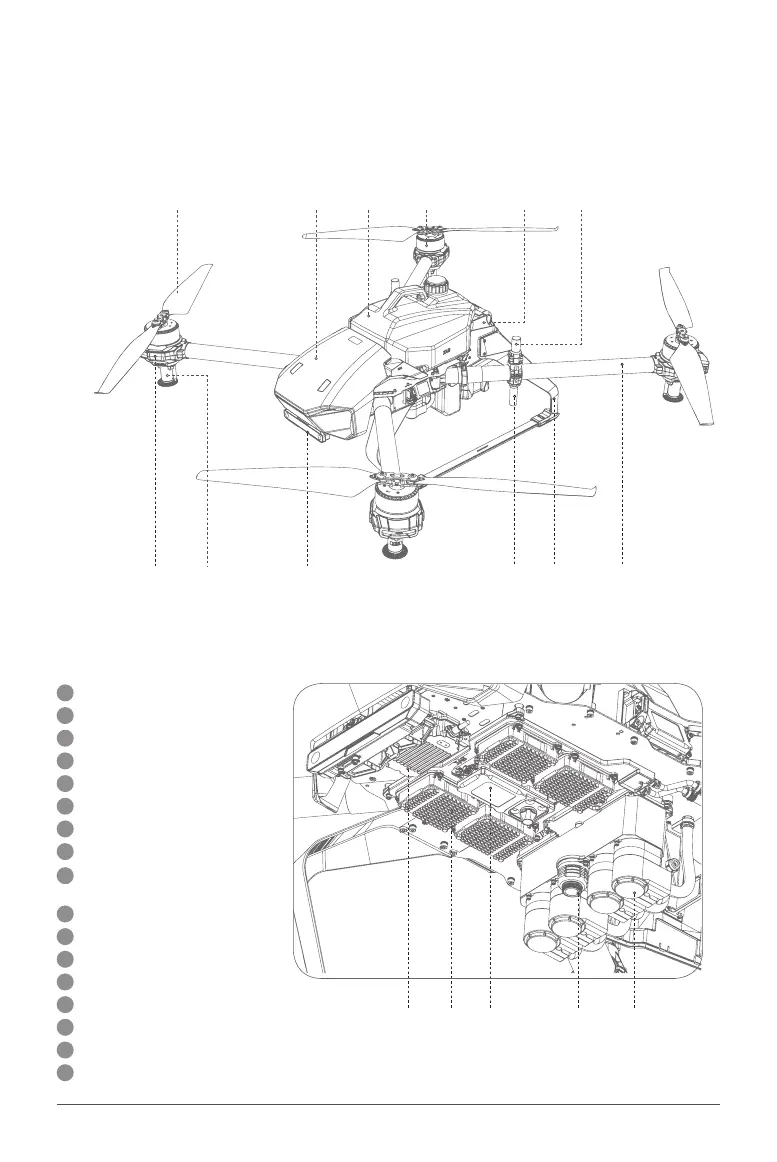

Airframe module structure
(Top View)
(Below) Figure 2.
Airframe module structure (Bottom View)
Propeller
RTK antenna (one on each side)
Smart battery
2.4/5.8GHz dual-frequency
antenna (one on each side)
Tripod
Liquid pump/set
Searchlight
Terrain sensor
XCope*
Spraying status Indicator
Nozzle
Arm
Head cover
Motor
Liquid container
