Xantrex Digital echo-charge User Manual

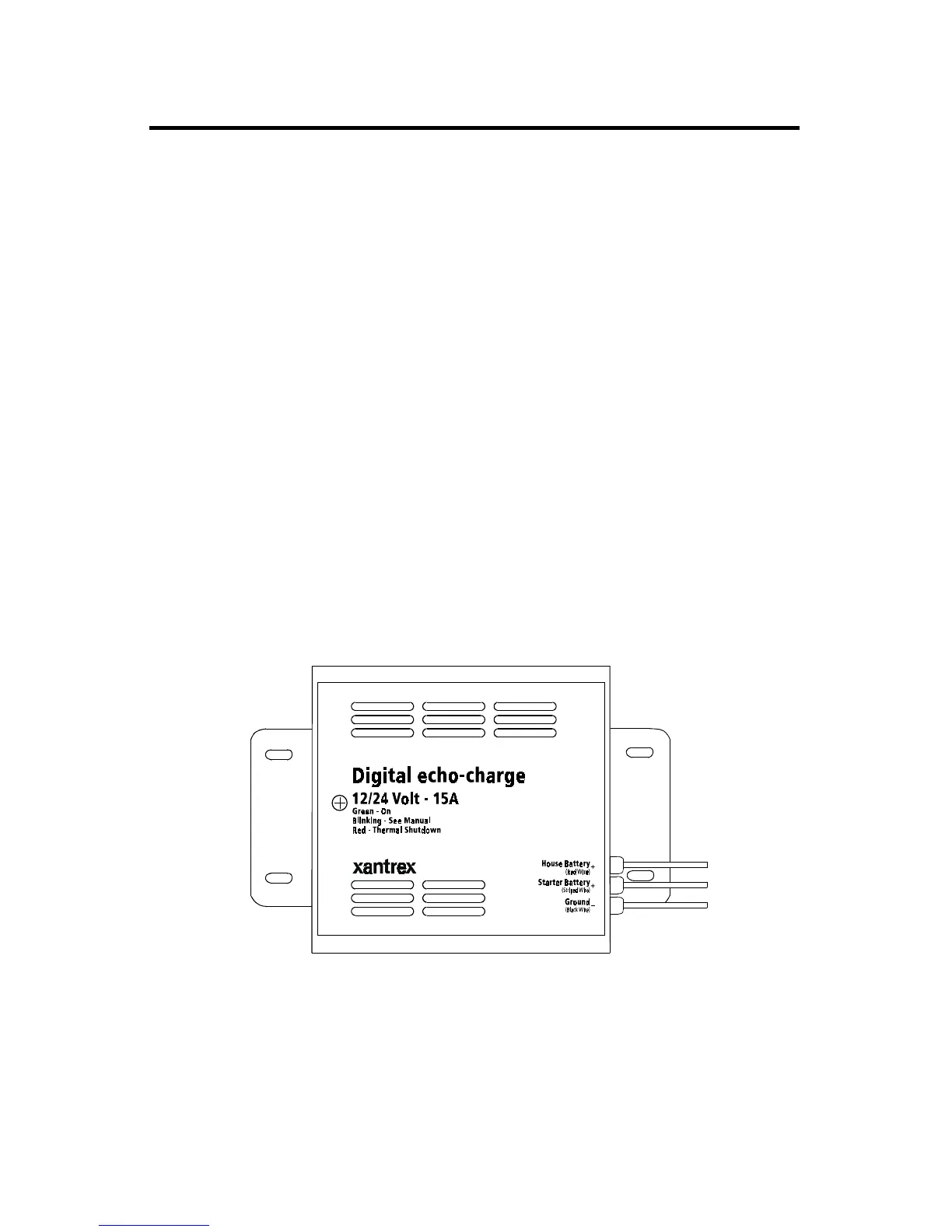

The Xantrex Digital echo-charge is specially developed for charging an
auxiliary battery with Freedom
TM
or Fleet Power
®
Inverter/Chargers or with
any charging source. The Digital echo-charge automatically switches ON
and OFF, charging a starter or auxiliary battery without affecting the main
house battery bank. The maximum charge current is 15 amps when the
starting battery is 1/2 volt to 1 volt DC less than the house battery. The
Digital echo-charge is designed to work on 12 VDC or 24 VDC systems.
The Digital echo-charge is a voltage-follower, following the three-stage
charge modes of the Freedom Charger. This method protects the starter
battery from over-charging and ensures a long life for the battery. If using
another charge source, the Digital echo-charge will follow the charge
stages of the source. Refer to the source’s Owner’s Manual for charge
modes.
The Digital echo-charge unit is complete with:
• 2 feet of 16 gauge wire with ring terminal (quantity 1)
• 2 feet of 16 gauge wire with ring terminal and 20 amp in-line fuse (quantity 2)
• Digital echo-charge Owner’s Manual
INTRODUCTION
3
