24
2.0 INSTALLATION
©2000 Xantrex Technology Inc.
Installing a Battery Temperature Sensor
A battery temperature sensor (BTS) option can easily be installed in the system to ensure
proper charging of the batteries based on temperature. Installing a BTS extends battery life by
preventing overcharging in warm temperatures and undercharging in cold temperatures.
Installing the sensor:
Run the battery temperature sensor wire in the DC conduit (if used) and route the RJ11
connector end to the BATTERY SENSE jack located on the front of the inverter.
Secure the sensor to one of the batteries located in the center the battery pack.

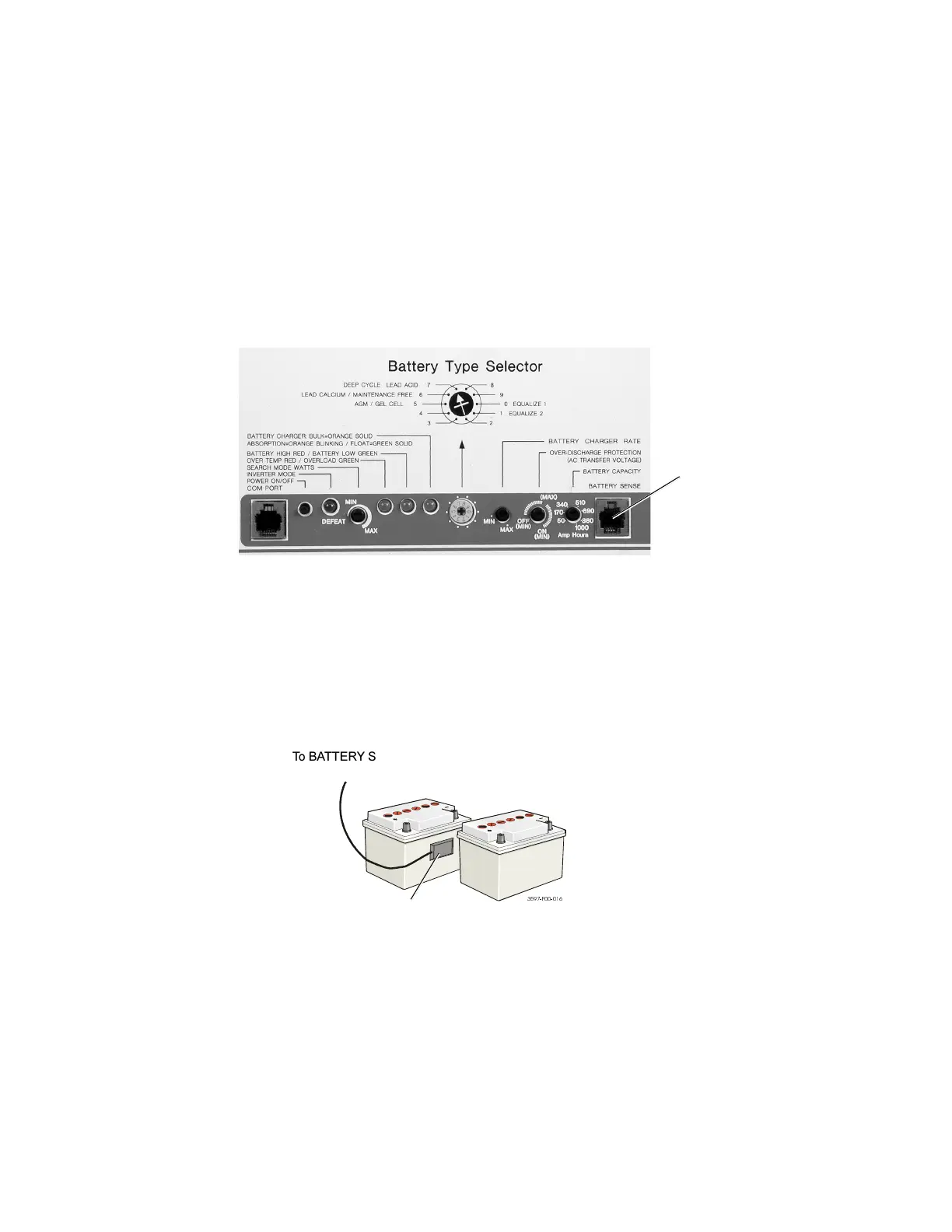

Figure 20
BTS (RJ11) Jack Location
Figure 21
BTS Installed on Battery
)
To BATTERY SENSE
jack
BTS connected to
battery
BATTERY SENSE
(RJ11) Jack
