2.0 INSTALLATION
©2000 Xantrex Technology Inc.
Generators (continued)
Manual Transfer
Switch
Utility Service
Panel
Manual
Start
Generator
Inverter
Sub-panel
Utility Power
120 VAC
Generator
Power
To AC Load
HOT
NEUTRAL
HOT
NEUTRAL
Isolated
Neutral Bus
Isolated
Neutral Bus
Isolated
Neutral Bus
Bonded Neutral/
Ground Bus
House
Ground
HOT
NEUTRAL
HOT
NEUTRAL
GROUND
UTILITY HOT
CONTACT
GENERATOR
HOT CONTACT
975-0012-008
COMMOMN
CONTACT
(to inverter)
AC Input
AC Output
Main Utility
Circuit
Breaker
Inverter Circuit
Breaker
N
E
U
T
R
A
L
G
R
O
U
N
D
Bond
Wire
U
G
C
Main Input
Breaker

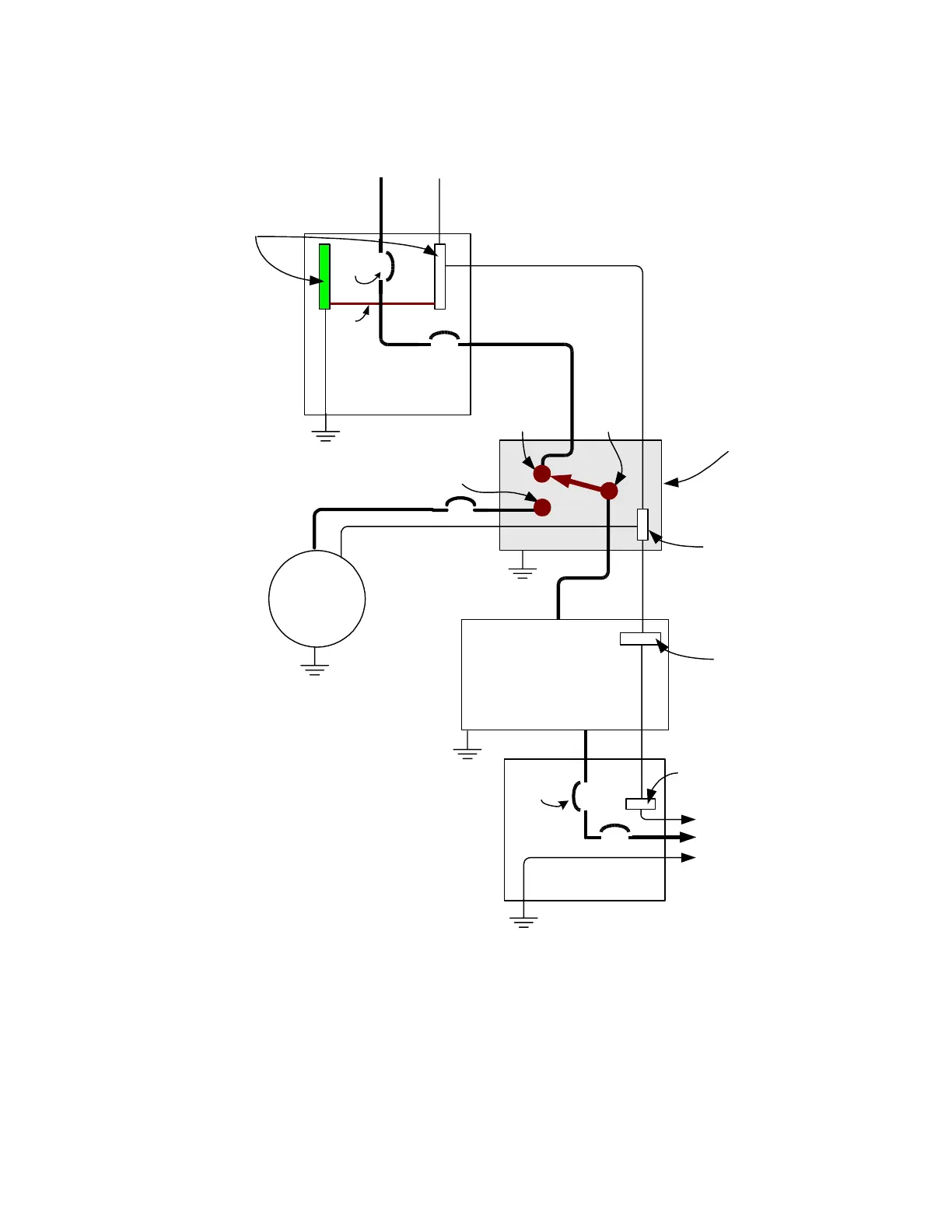

Figure 27
Basic 120 VAC Utility/Generator Block Diagram
