3.0 OPERATION
39
©2000 Xantrex Technology Inc.

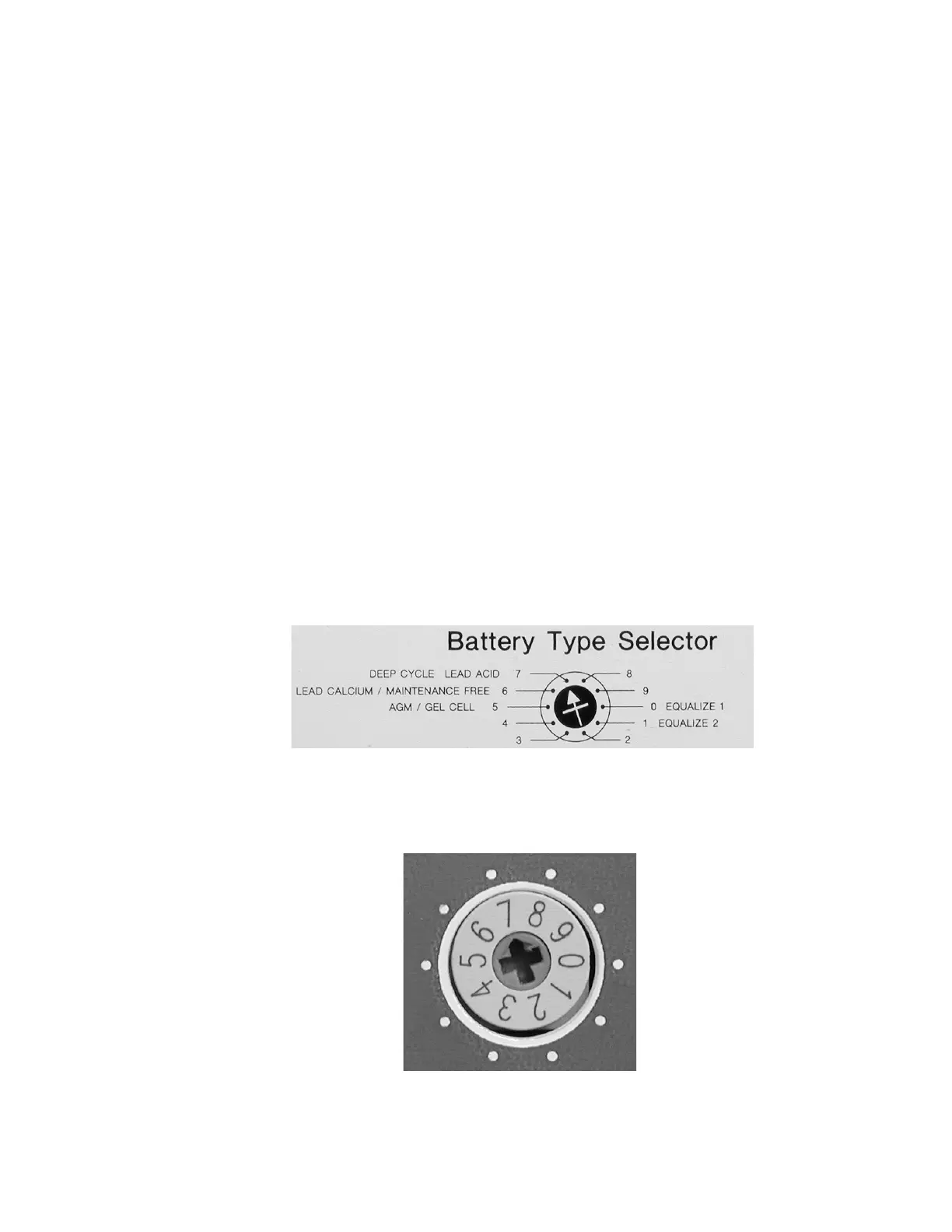

Figure 34
Battery Type Selector Graphic
Figure 35
Battery Type Selector Adjustment
Front Panel Controls and Indicators (continued)
Switch Positions (continued)
4GEL Cell 2
Recommended for gel cell batteries that specify high float voltages. Check with the
batterys manufacturer.
5GEL Cell 1
Typical gel cell setting.
6PbCa - Lead Calcium
Use this setting for sealed type car batteries.
7Deep Cycle Lead Acid
Factory setting for typical deep cycle lead acid batteries.
8NiCad 1
Use for NiCad battery systems.
9NiCad 2
Recommended for use with nickel iron batteries.
