Back Panel (DC End)
2–7
Back Panel (DC End)

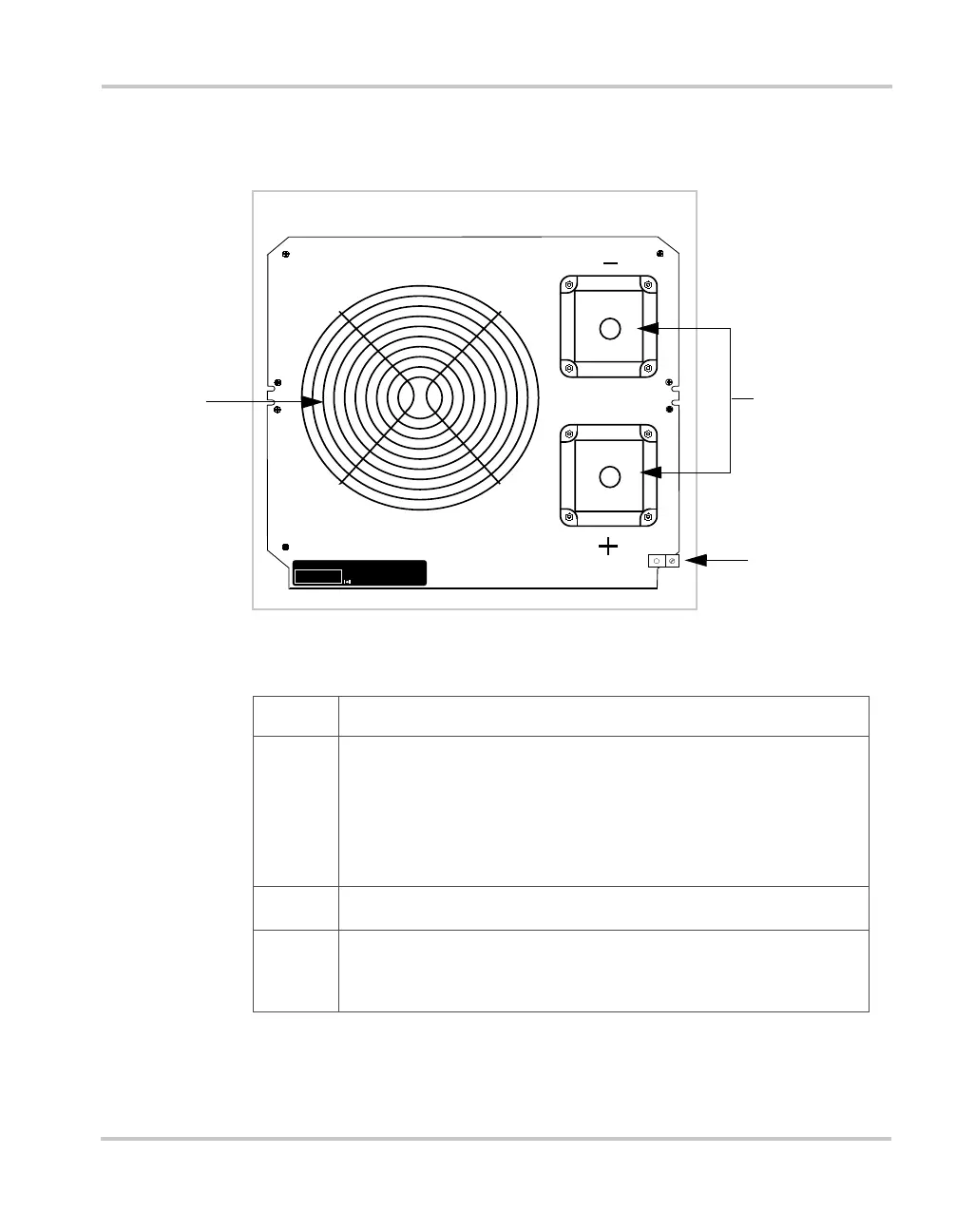

Figure 2-3 Back Panel: DC End
②
③
①
Feature Description
➀
➀➀
➀
Ventilation Openings For safety and proper operation of the
inverter, these openings (and the openings on the front of the
inverter) must not be obstructed. When the inverter is mounted,
these ventilation openings must not point up or down. In other
words, neither the front panel (AC end) nor the back panel (DC end)
should point up or down.
➁
➁➁
➁
Positive (Red) and Negative (Black) DC Cabling Terminals
➂
➂➂
➂
Chassis Ground Lug Connects to earth ground, to vehicle chassis,
or to DC grounding bus or engine’s negative bus (in marine
installations).
