12 Xantrex PROwatt™ SW Sine Wave Inverter Owner’s Guide
Installation
Cabling Procedure
Consult the following configurations and determine a match
specific to your installation and follow the installation procedure
“To connect the battery cables:” that comes next.
To connect the battery cables:
1. Make sure the inverter is off and assemble the terminated
cables (cables with connectors) that you bought.
2. Line up the connectors that will join the cables to the battery,
battery selector switch, and fuse (or circuit breaker).

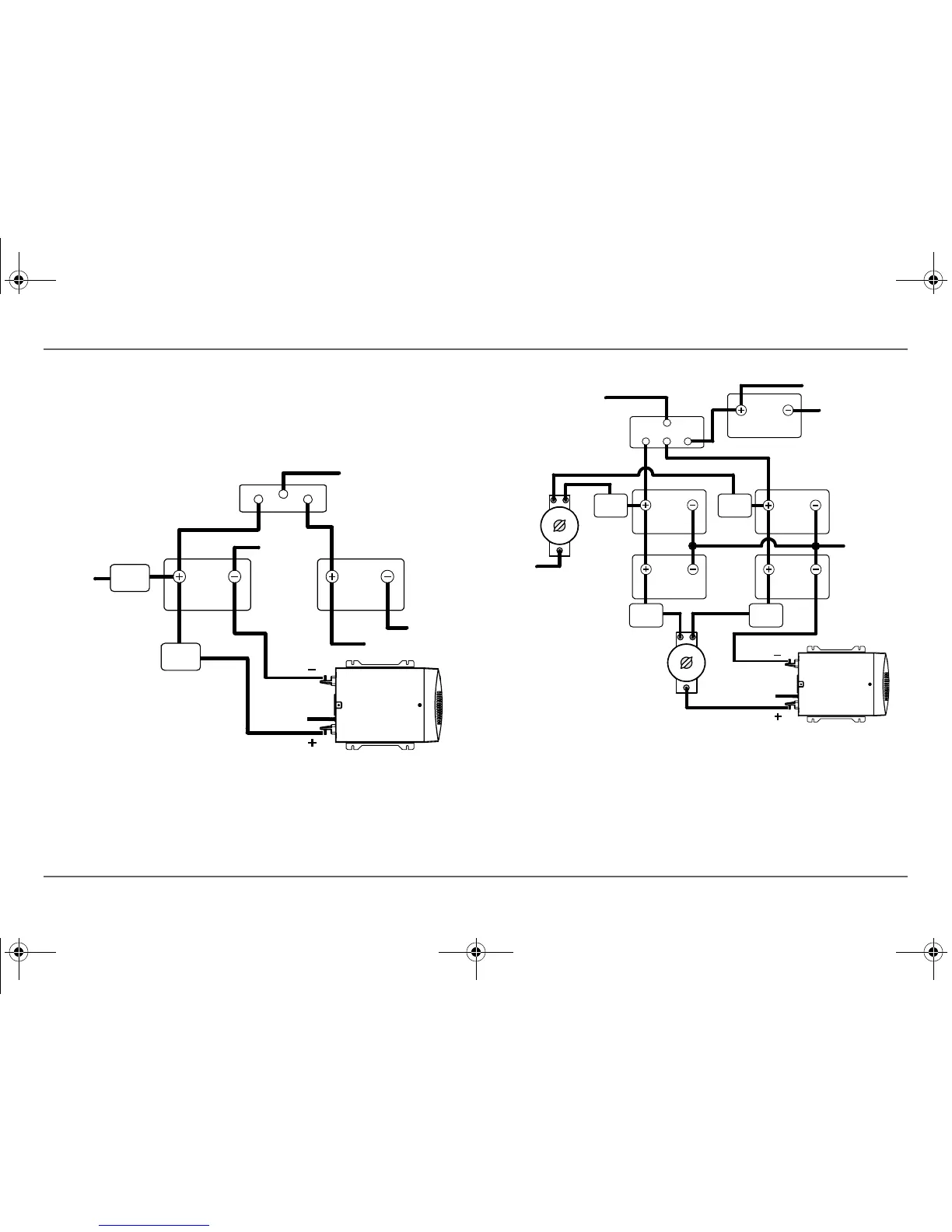

Figure 4 Configuration for Normal Loads
TO OTHER
DC LOADS
FUSE OR
CIRCUIT
BREAKER
FUSE OR
CIRCUIT
BREAKER
GROUND TO
VEHICLE
CHASSIS
GROUND TO
VEHICLE
CHASSIS
VEHICLE
STARTING
BATTERY
FROM ALTERNATOR
OR CHARGER
GROUND TO
VEHICLE
CHASSIS
DEEP-CYCLE
AUXILIARY
BATTERY
ISOLATOR
TO VEHICLE
Figure 5 Configuration for Heavy Loads
ALL
OFF 2
1
ALL
OFF 2
1
TO OTHER
DC LOADS
GROUND TO
VEHICLE
CHASSIS
GROUND TO
VEHICLE
CHASSIS
BATTERY
SELECTOR
SWITCH
BATTERY
SELECTOR
SWITCH
VEHICLE
STARTING
BATTERY
FROMALTERNATOR
OR CHARGER
DEEP-CYCLE
BATTERY
DEEP-CYCLE
BATTERY
DEEP-CYCLE
BATTERY
DEEP-CYCLE
BATTERY
ISOLATOR
TO VEHICLE
GROUND TO
VEHICLE
CHASSIS
FUSE OR
CIRCUIT
BREAKER
FUSE OR
CIRCUIT
BREAKER
FUSE OR
CIRCUIT
BREAKER
FUSE OR
CIRCUIT
BREAKER
PROWatt SW Inverter NA.book Page 12 Wednesday, August 5, 2009 2:24 PM
