Xantrex Trace C60 User Manual

©2000 Xantrex Technology Inc.
DC Load Control Mode Cabling
· Connect the positive battery cable to the terminal marked BAT POSITIVE
on the controller.
· Connect the negative battery cable to the terminal marked COMMON
NEGATIVES.
· Connect a cable between the PV POS/LOAD terminal on the controller and
the positive terminal on the DC load.
· Connect a cable between the controllers COMMON NEGATIVES terminal
and to the negative terminal of the load.

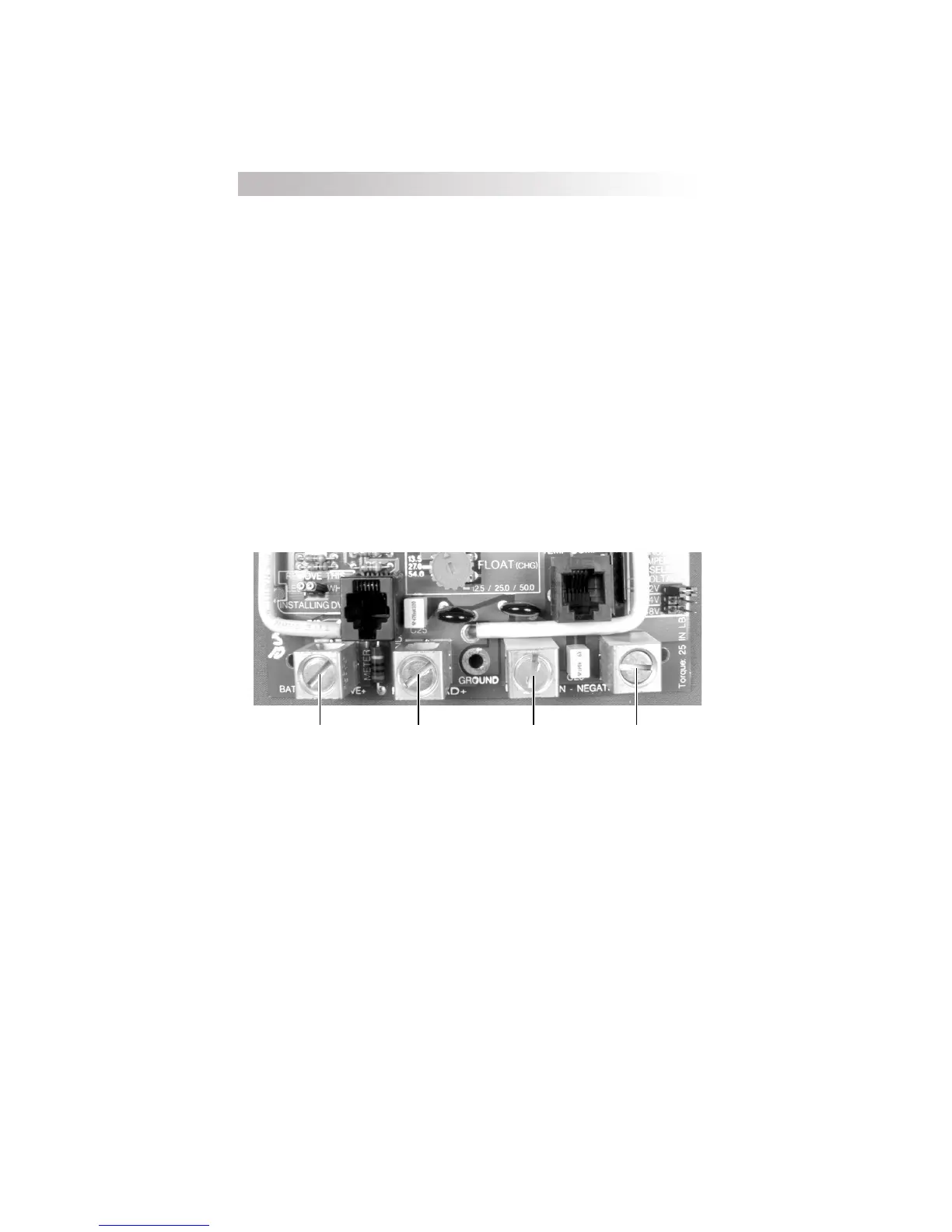

Battery Positive + Battery Negative DC Load Positive + DC Load Negative 
Figure 9
Load Control Wiring
20
3.0 INSTALLATION
