Xantrex Trace C60 User Manual

©2000 Xantrex Technology Inc.
Voltage
This jumper determines the voltage of the system that the controller will be
used with. Connect the two pins adjacent to the legend for the voltage of your
system: 12, 24, 48. Factory setting is 12 volts for the C35, C40 and C60. The
maximum DC voltage allowed is 125 VDC for a C40, and 55 VDC for the C35
and C60.
If the optional LCD meter (DVM/C40 or CM/R) is attached to the C-Series
controller, be sure to set the jumper on the back of it for the appropriate system
voltage. The jumper for limiting power consumption and dimming the CM display
is also located on the back of the LCD Displays.
3.0 INSTALLATION
26

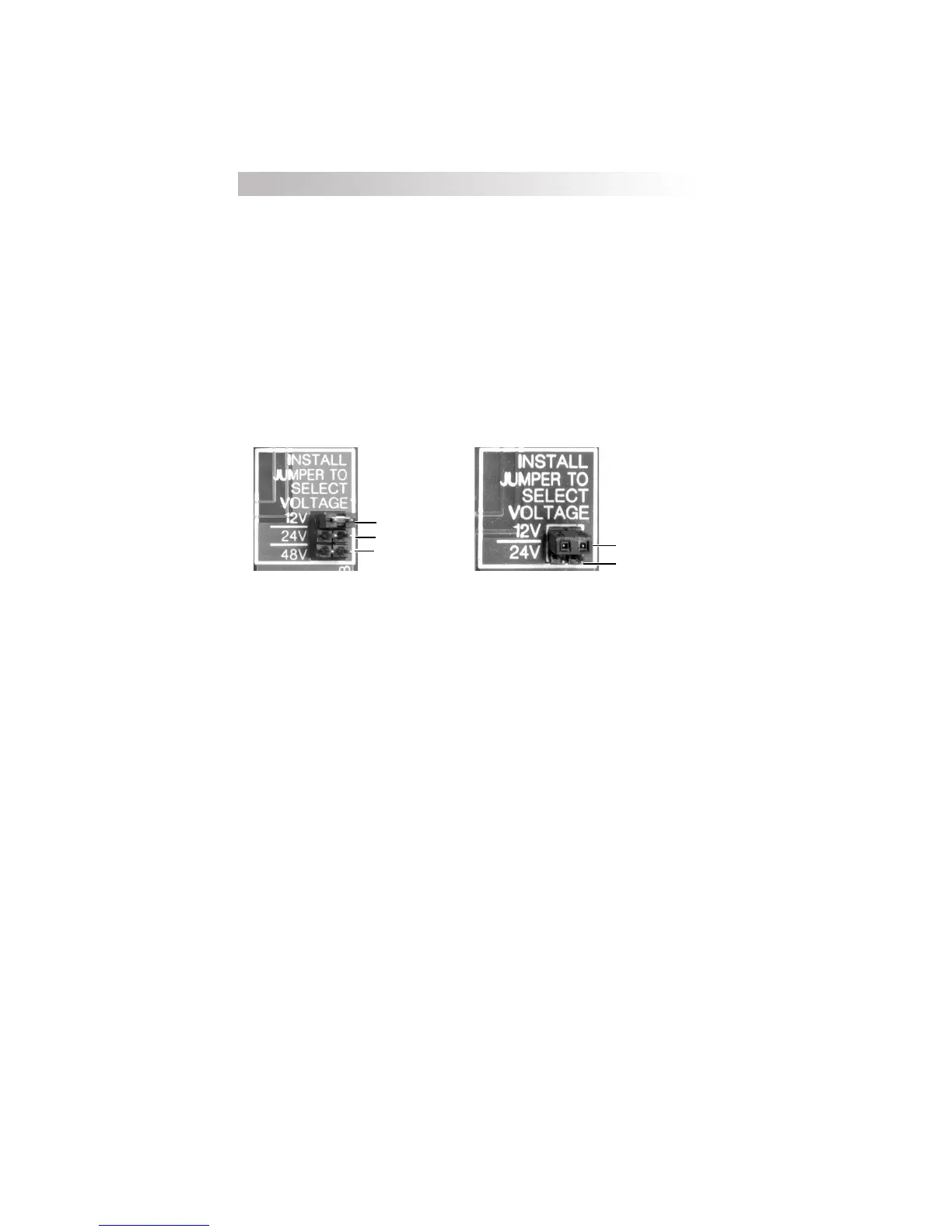

Figure 16
Voltage Selection Jumper
12 Volt Position
24 Volt Position
12 Volt Position
24 Volt Position
48 Volt Position
C40 C35 and C60
