Xenosys L2S15 - MAIN BODY & BATTERY FUNCTIONS; Main Body (LED Control Unit)

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
9
Front View
3. List of Components
No.
Components
Main function & Page
Qty.
Reference
①
LED Control Unit (LCU15)
Refer to page 9
1
②
Battery Pack (BTP15)
Refer to page 10
2
Expendables
③
Remote Controller (RC15)
Refer to page 11
1
④
LED Lens Module (LLM1582)
Refer to page 12
1
⑤
Charger (LCH15)
Refer to page 12
1
⑥
Power Supply (BPM010S05)
Refer to page 13
1
⑦
Power Cord (LPC)
-
1
⑧
Battery (AAA)
Battery for remote controller
2
Expendables
⑨
Anti-curing Filter
Anti-curing for photo polymerization(Only for 74 & 82mm)
1
Optional
⑩
LED Lens Module (LLM1574)
Field of View: Ø74 mm @WD400mm
1
Optional
⑪
LED Lens Module (LLM1566)
Field of View: Ø66 mm @WD400mm
1
Optional
FUCNTIONS

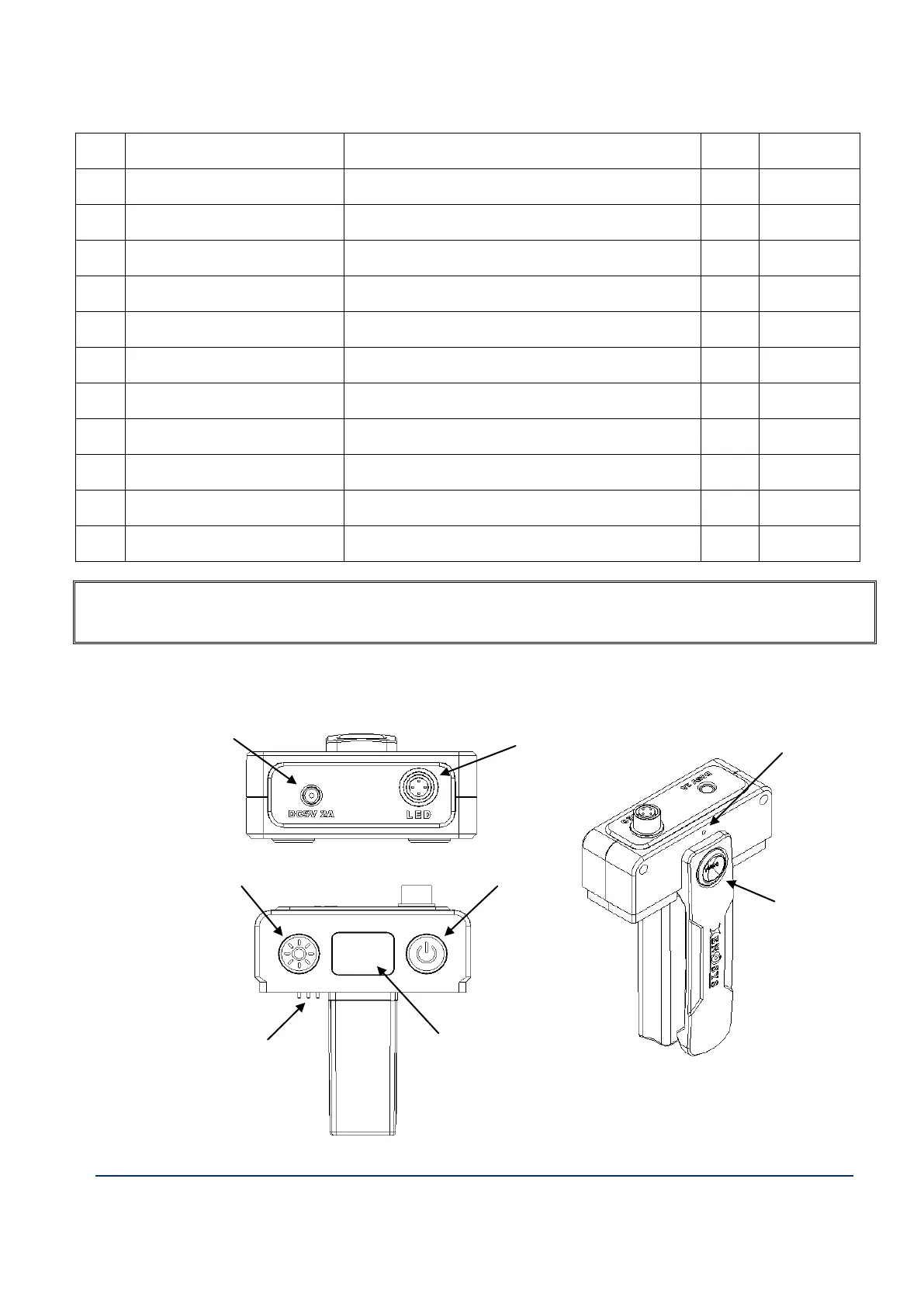

1. Main Body (LED Control Unit, LCU15)
Top View
Isometric View
④
⑤
⑥
⑦
⑧
③
②
①
