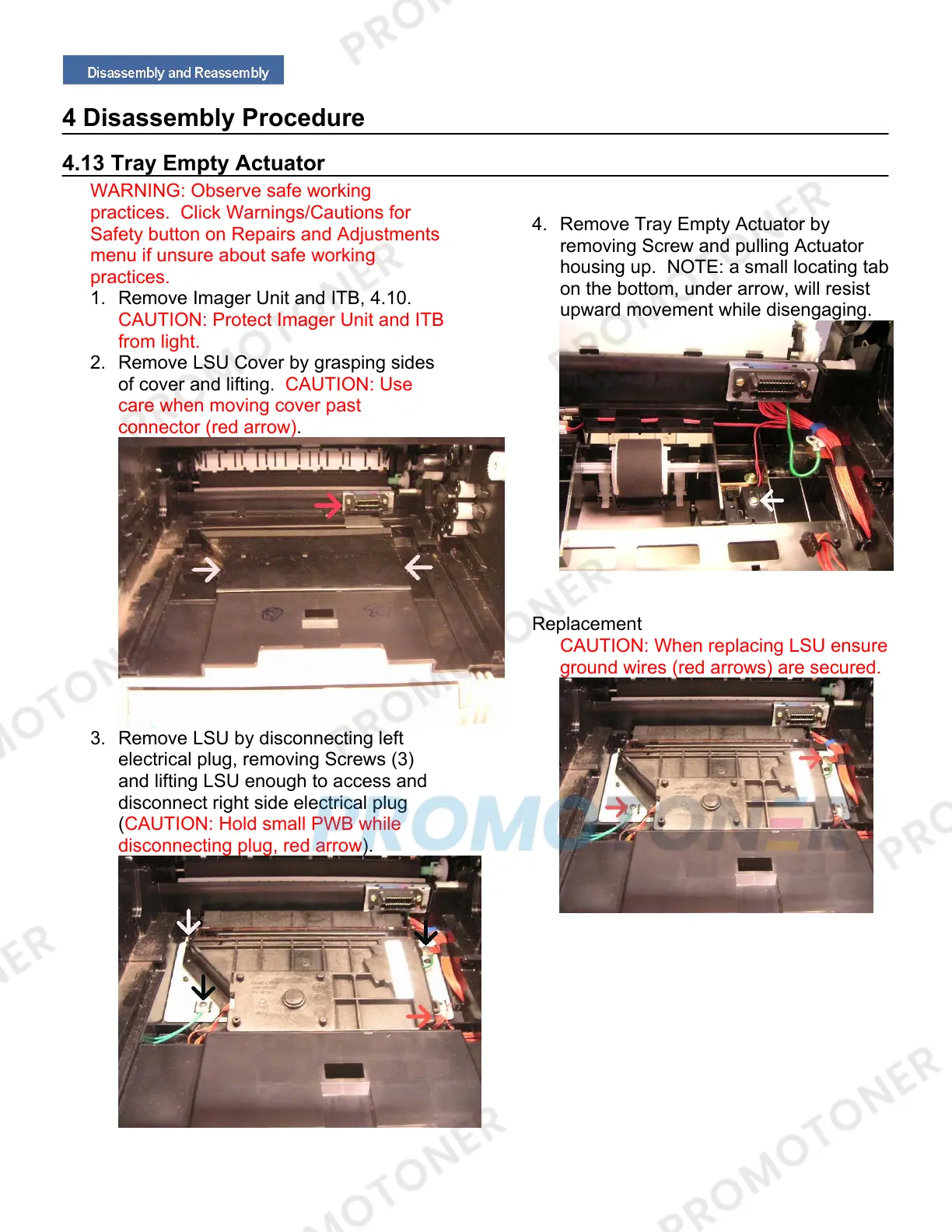

4 Disassembly Procedure
4.13 Tray Empty Actuator
WARNING: Observe safe working
practices. Click Warnings/Cautions for
Safety button on Repairs and Adjustments
menu if unsure about safe working
practices.
1. Remove Imager Unit and ITB, 4.10.
CAUTION: Protect Imager Unit and ITB
from light.
2. Remove LSU Cover by grasping sides
of cover and lifting. CAUTION: Use
care when moving cover past
connector (red arrow).
3. Remove LSU by disconnecting left
electrical plug, removing Screws (3)
and lifting LSU enough to access and
disconnect right side electrical plug
(CAUTION: Hold small PWB while
disconnecting plug, red arrow).
4. Remove Tray Empty Actuator by
removing Screw and pulling Actuator
housing up. NOTE: a small locating tab
on the bottom, under arrow, will resist
upward movement while disengaging.
Replacement
CAUTION: When replacing LSU ensure
ground wires (red arrows) are secured.
