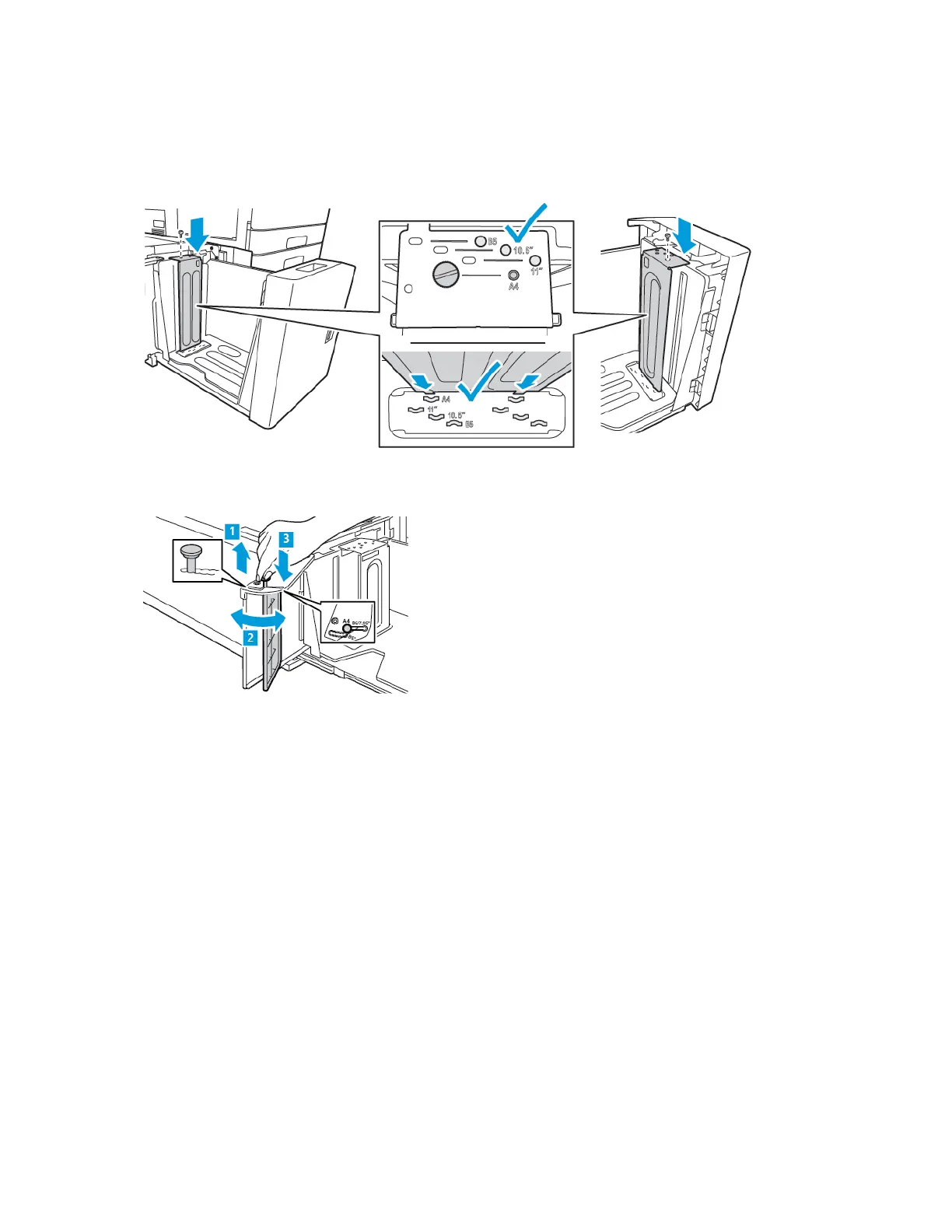

3. For the rear spacer plate, place the tabs at the bottom of the plate into the slots that correspond
with the correct paper size. Slide down the spacer plate, then engage the peg on the top of the
tray with the matching hole in the spacer plate. To secure the spacer plate, install the screw.
Repeat the procedure for the spacer plate at the front of the tray.
4. On the top of the side gate, lift the pin, then guide it into the required paper size in the slot. To
lock the side gate into place, release the pin.
5. Load paper, close the side gate, then close the tray.
6. At the control panel, select the correct type and color.
7. To confirm the settings, touch Confirm.
For information about loading paper in Tray 6, refer to Loading Paper in Tray 6.
Xerox
®
AltaLink
®
B81XX Series Multifunction Printer
User Guide
35
Getting Started

Xerox AltaLink B8155 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Maximum Print Resolution	1200 x 2400 dpi
Automatic Document Feeder	Yes
Monthly Duty Cycle	Up to 300, 000 pages
Memory	4 GB
Control Panel	10.1-inch color touchscreen
Paper Output Capacity	500 sheets
Scan Resolution	Up to 600 x 600 dpi
Fax	Optional
Fax Compression	MH, MR, MMR, JBIG
Operating System Compatibility	Windows, Mac OS, Linux
Hard Drive	320 GB
Connectivity	Ethernet, USB
Media Sizes	A4, A5, B5, Legal, Letter, Executive
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Print Speed	Up to 55 ppm
