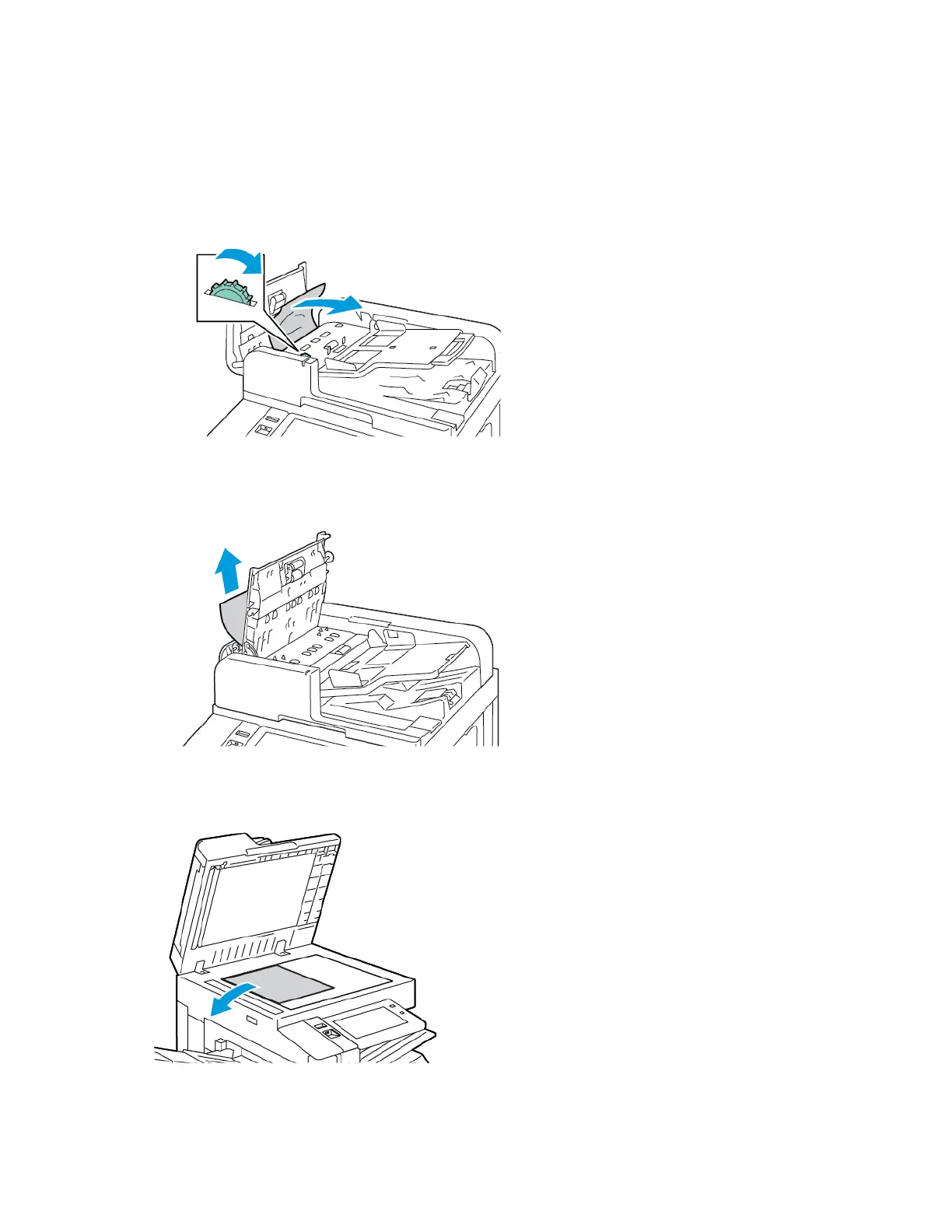

3. Clear the document feeder area. The instructions vary depending on your printer model:
• If the message on the control panel instructs you to turn the green wheel, turn the wheel in
the direction shown. Turning the green wheel moves the original document out of the feeder.
Remove the jammed document in the direction shown, then close the document feeder top
cover.
• If the message on the control panel instructs you to clear the document feeder left cover
area, remove the jammed original document in the direction shown. Close the document
feeder top cover, then close the document feeder left cover.
4. Lift the document feeder, then remove the original document from the document glass.
286
Xerox
®
AltaLink
®
C81XX Series Color Multifunction Printer
User Guide
Troubleshooting
