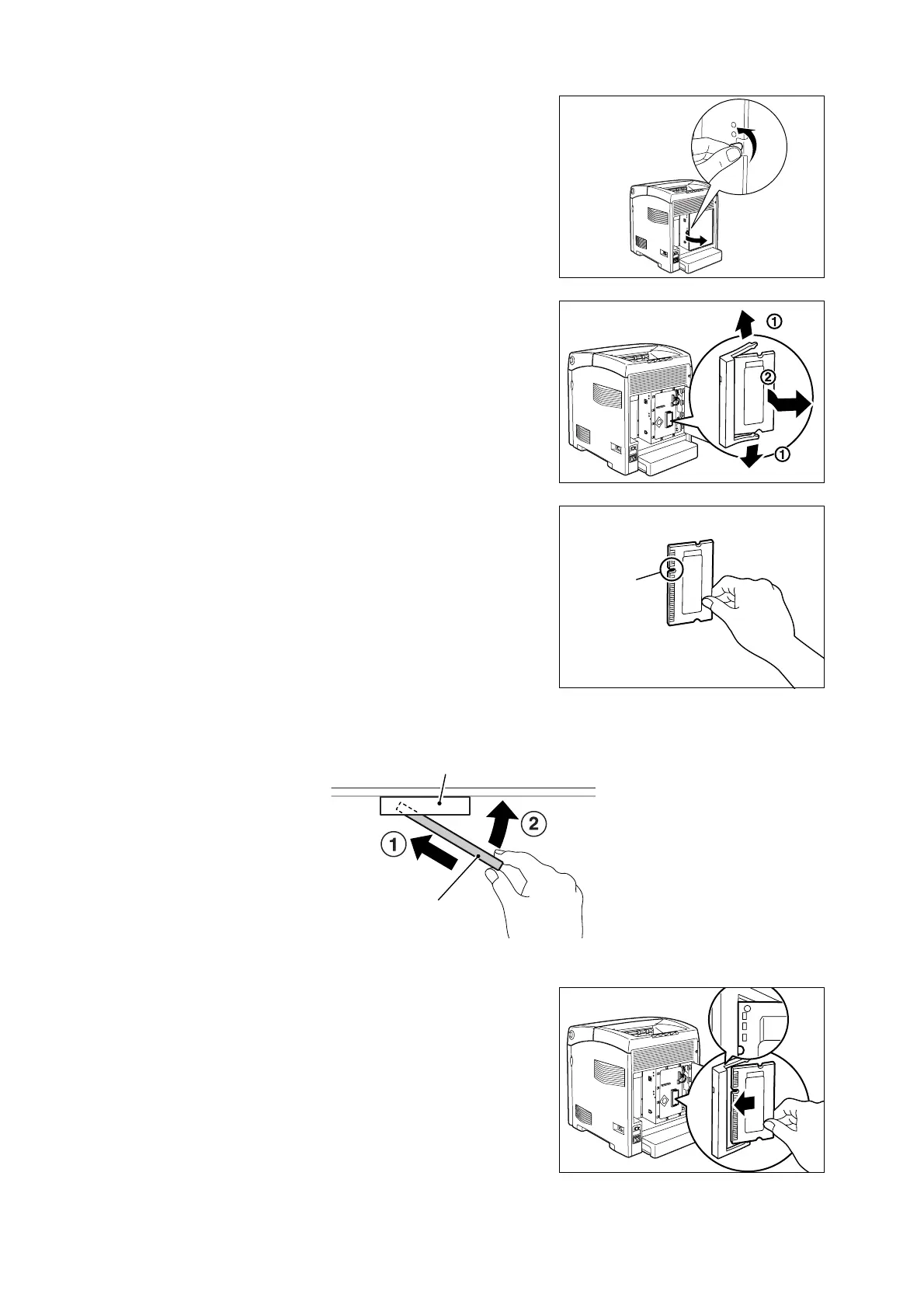

A.5 Installing Additional Memory 181
2. Loosen the screw on the control board
cover of the printer, and open the cover.
3. If another memory card is already installed,
push the retaining clips on both ends in the
outward direction. After the memory card
pops up, pull it out at an angle.
4. Hold the new memory card so that the
notch on the card comes above the center
of the card.
5. Use the following steps to install the memory card to the printer.
1) Align the notch on the new memory card
with the projection on the RAM slot, and
insert the memory card at an angle into
the slot.
Important
• Make sure to insert the memory card securely until the
terminal area cannot be seen.
notch
RAM slot
memory card
To Next Page
