Xerox Duplex - Securing the New ADF Pad

Xerox
®
Duplex Portable Scanner Maintenance
34 User Guide

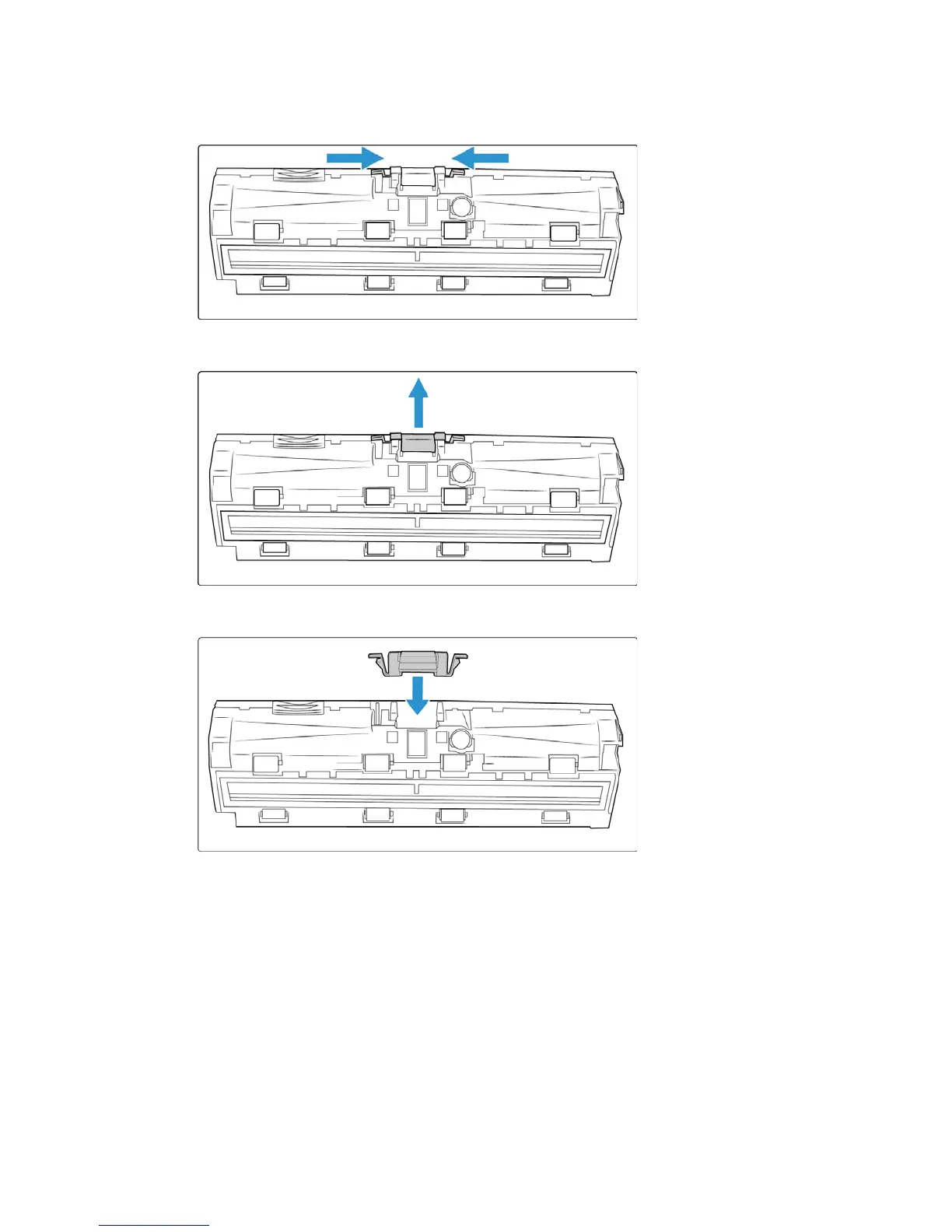

3. Squeeze the plastic clamp that holds the pad assembly in place.
4. Lift the pad up and out of the scanner.
5. Place the new ADF pad in the scanner.
6. Press down on the ADF pad until you hear a "click" when it locks in place.
