Xerox Phaser 3400 - Loading Optional Tray 2

Reference Guide 3
Loading the optional trays

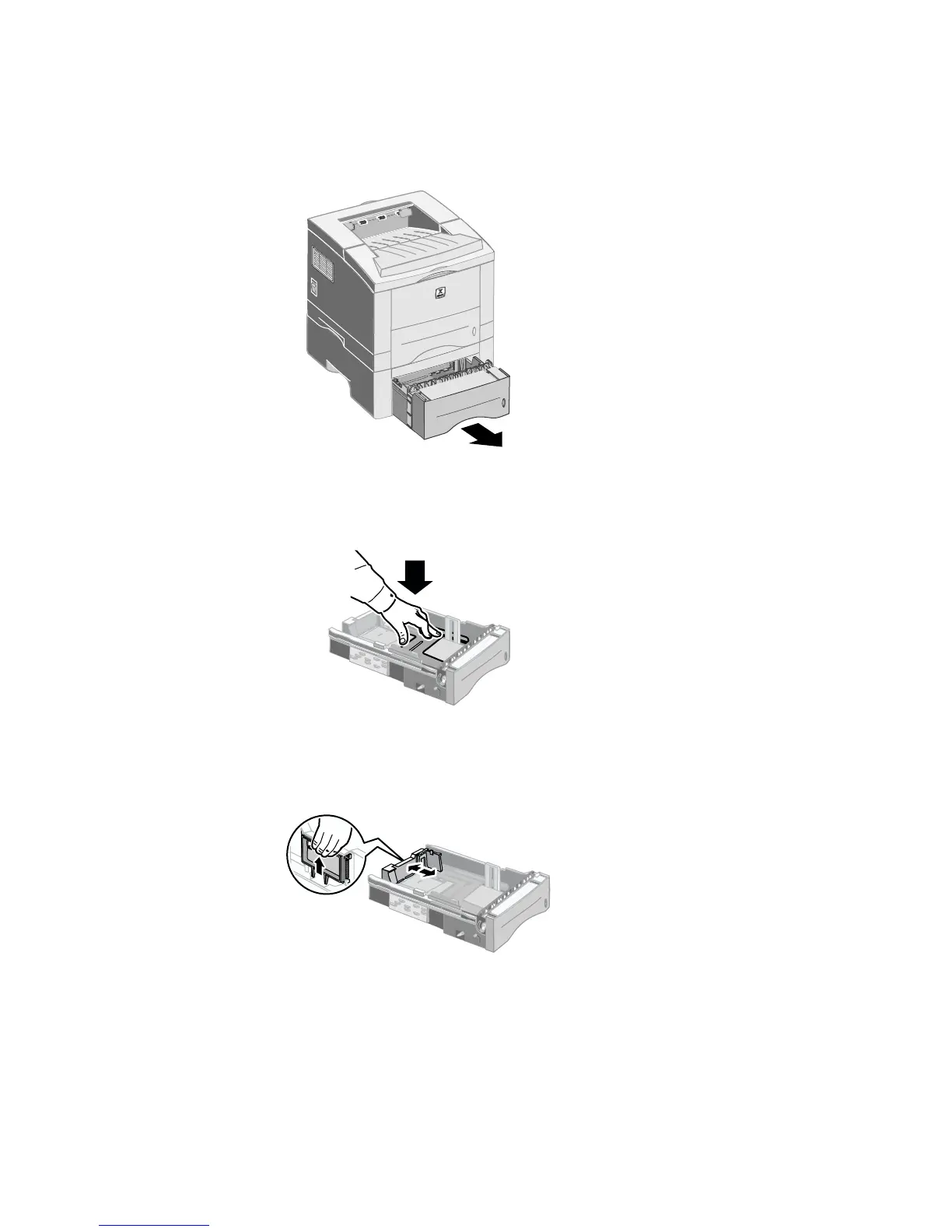

Loading optional Tray 2
1.
Remove the tray.
2. Push the metal (bottom) plate down until it locks into place.
3.
If necessary, adjust the tray length to match the length of the paper. Pull up on the tab
on the back of the tray, then pull the back of the tray to the desired length.
1710-59
1710-60
1710-61
