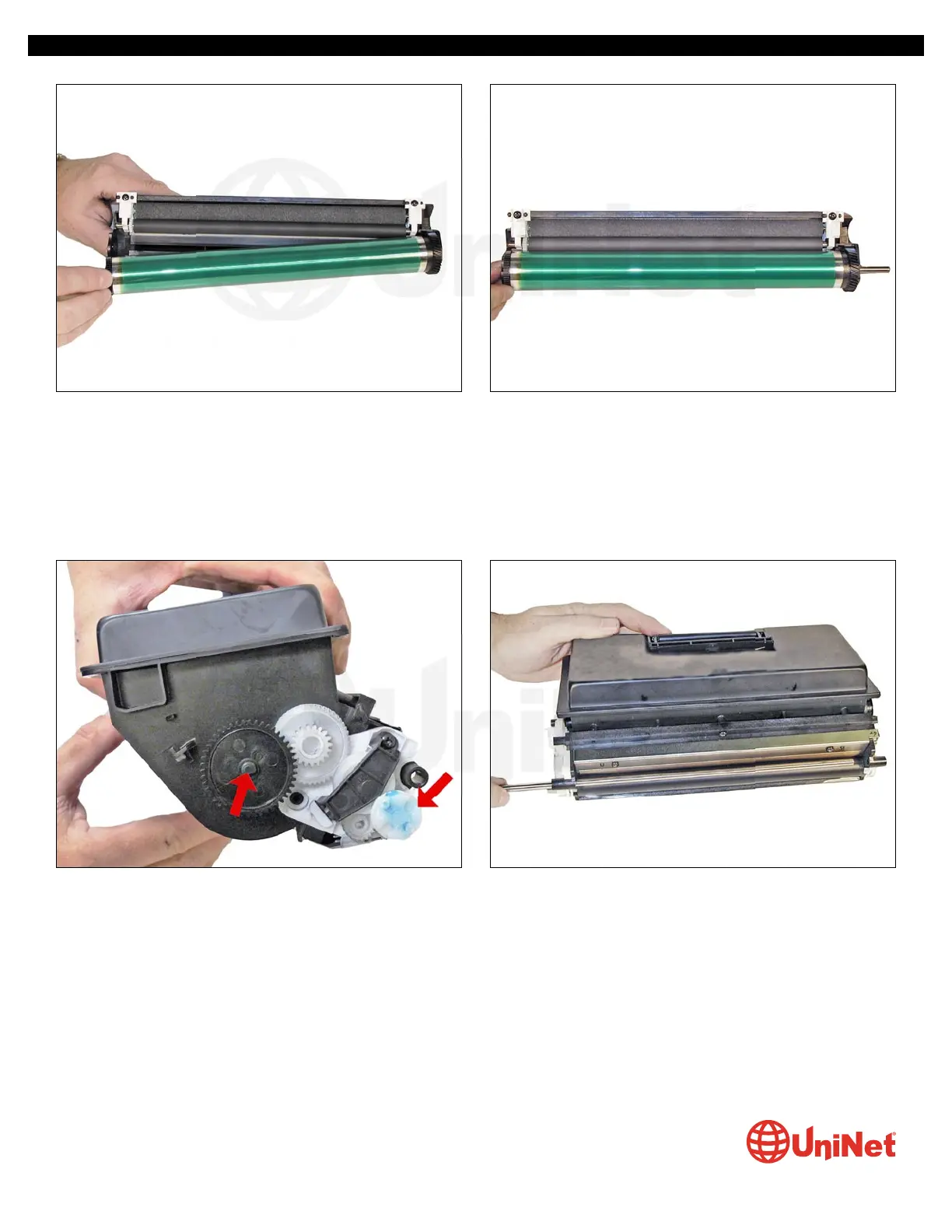

21. Install the drum and drum axle (large gear to the non-gear side of the PCR).
Slide the drum axle through the large gear side. Keep the conductive grease to the large gear side.
Place the waste hopper aside.
22. On the toner hopper, remove the large black gear and
small white gear from the developer roller shaft.
23. Slide out the metal bar.
