Xerox Phaser 8560 - Service Parts Disassembly; Y-Axis Belt and Motor Disassembly

8-8 Phaser 8400/8500/8550/8560 Color Printer Service Manual
Service Parts Disassembly
Imaging
Y-Axis Belt, Y-Axis Tension Spring, and Y-Axis Motor
(PL 2.0.4) (PL 2.0.14) (PL 4.0.4)
W
arn
i
ng
The use of safety glasses is recommended for this procedure.
1. Remove the Left Side Cover (page 8-6).
2. Relieve tension on the belt by pulling the end of the spring arm toward the
front of the printer using your fingers.
3. Slide the belt off the pulley.
4. Using a spring hook or pliers, remove the Y-Axis Tension Spring from the
chassis retainer and spring arm. Brace the printer to keep it from moving
during removal of the spring.
Caution
This is a strong spring that can cause damage if it slips during removal;
use care when removing.
5. Move the wires out of the way.
6. Disconnect the motor harness.

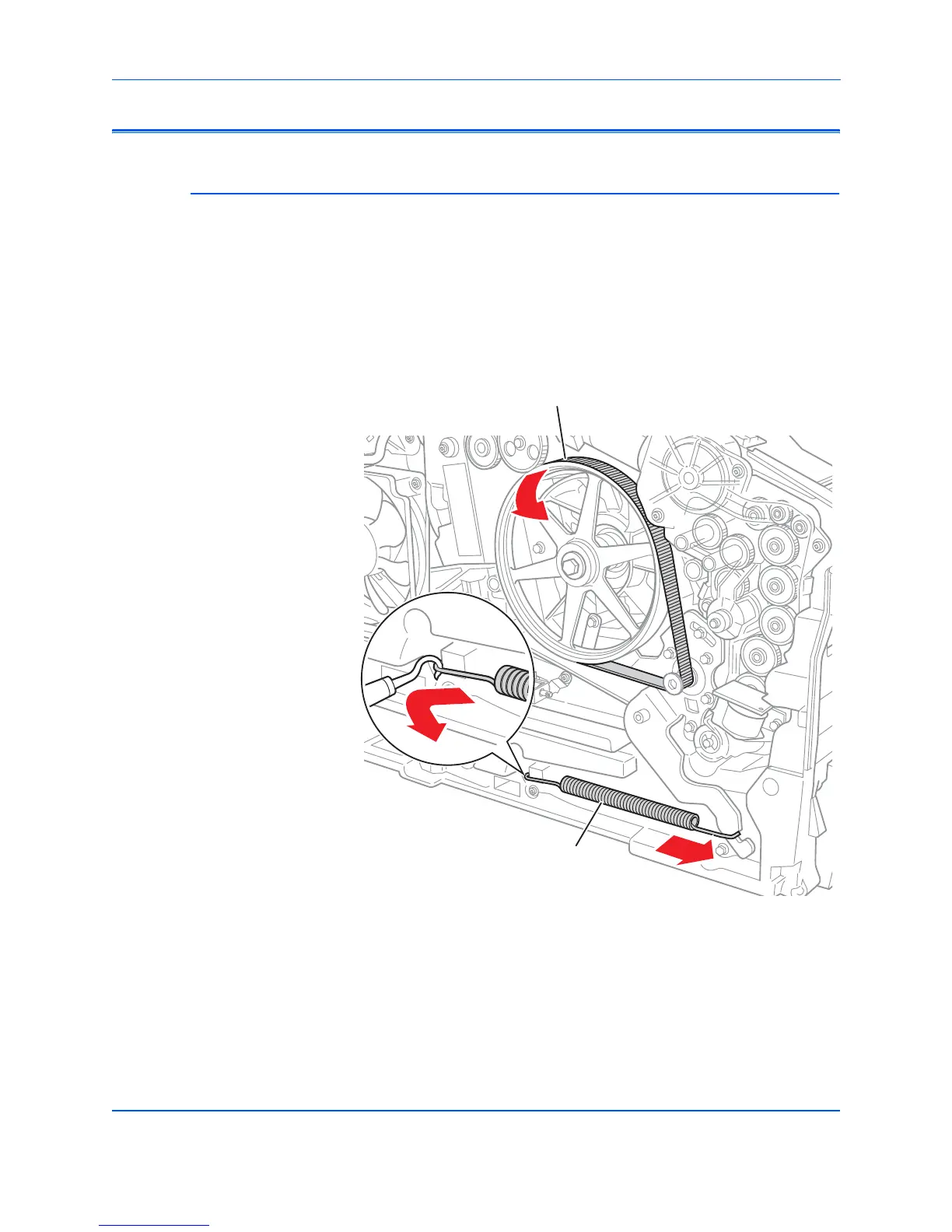

s8500-070
3
4
2
Y-Axis Belt
Y-Axis Tension Spring
