Xerox Phaser 8560 Service Manual

Phaser 8400/8500/8550/8560 Color Printer Service Manual 8-7
Service Parts Disassembly
Ink Loader (PL1.0.8)
1. Remove the Right Side Cover (page 8-5).
2. Remove the Left Side Cover (page 8-6).
3. Remove the Exit Cover (page 8-6).

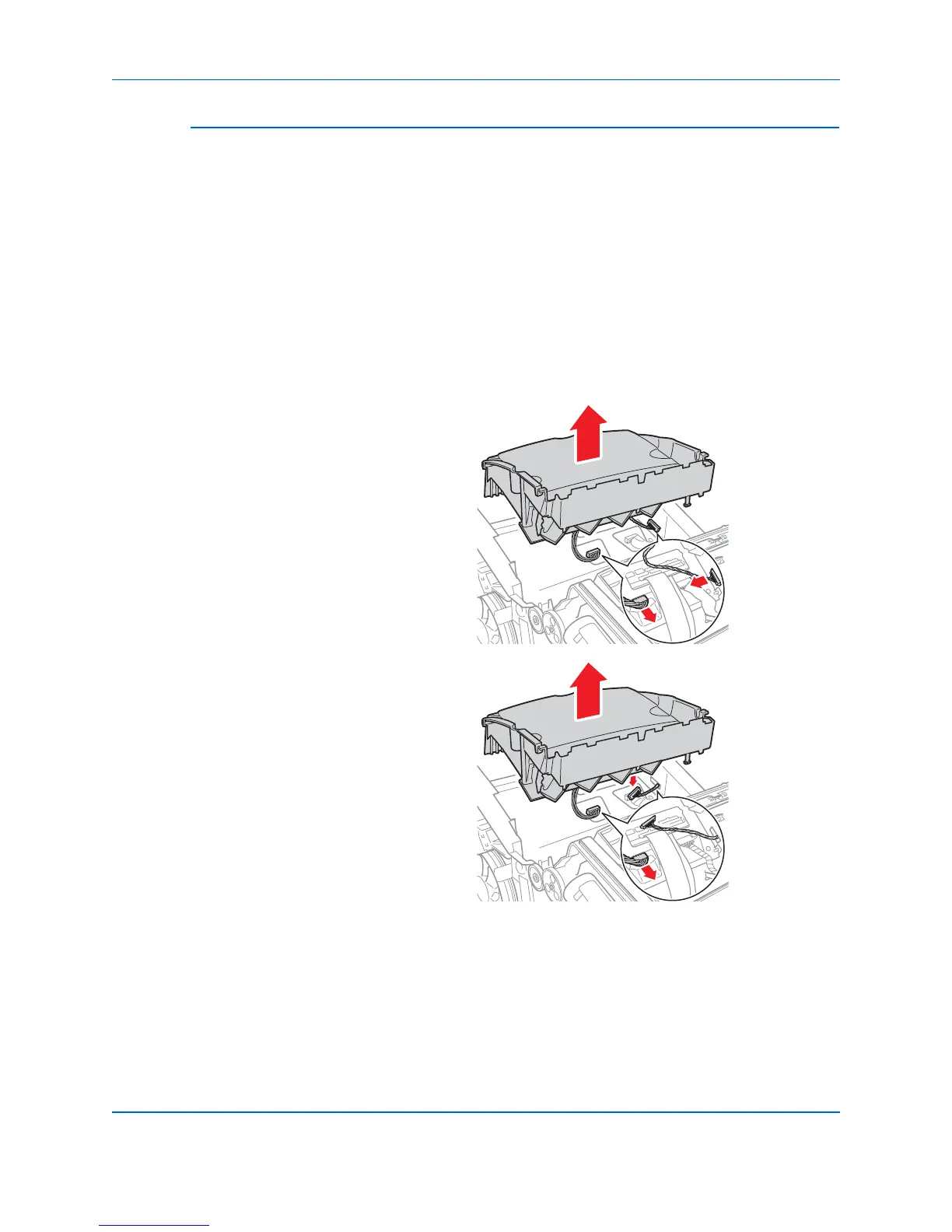

4. Lift the Ink Loader clear of the chassis and hold it in position against the
rear of the chassis to allow access to the connectors. For 8400, the Ink
Loader disconnects from the printer frame. For 8500/8550/8560, the
harness that plugs into the right side frame disconnects directly from the
Ink Loader.
Note
Hooks on the bottom of the Ink Loader allow it to hang on the rear of
the printer chassis while the connectors are removed.
5. Disconnect the 2 connectors from the printer and remove the Ink Loader.
R
ep
l
acemen
t
N
o
t
e
For the 8400, route the gray harness from the chassis between the
Ink Loader and printer side. The harness from the Ink Loader must be
routed towards the left side (see inset). For the 8500/8550/8560, the
harness comes from the side of the chassis and plugs directly into the
Ink Loader. After replacing the 8500/8550/8560 Ink Loader, reset the
ink stick count, using the Hidden Service Menu.
s8500-069
8400
8500/8550/8560

Xerox Phaser 8560 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (color, normal)	5 s
Print speed (black, normal quality, A4/US Letter)	3 ppm
Print speed (color, normal quality, A4/US Letter)	30 ppm
Maximum internal memory	1 MB
Sound power level (standby)	33 dB
Sound pressure level (printing)	54 dB
Maximum duty cycle	85000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c
Maximum input capacity	625 sheets
Paper tray 2 input capacity	525 sheets
Multi-Purpose tray input capacity	100 sheets
Power requirements	110 - 240 V, 50/60 Hz
Networking features	10/100BaseTX
Standard media sizes	140 x 216 mm - 216 x 356 mm
Power consumption (active)	230 W
Compatible operating systems	Linux, Mac OS X 10.2 +, Novell NetWare 3.x +, Windows 2000 +
Envelopes sizes	C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Glossy paper, Labels, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	IPv6
Sustainability certificates	ENERGY STAR
Power consumption (PowerSave)	43 W
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	10 - 32 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	406 x 533.4 x 368 mm
