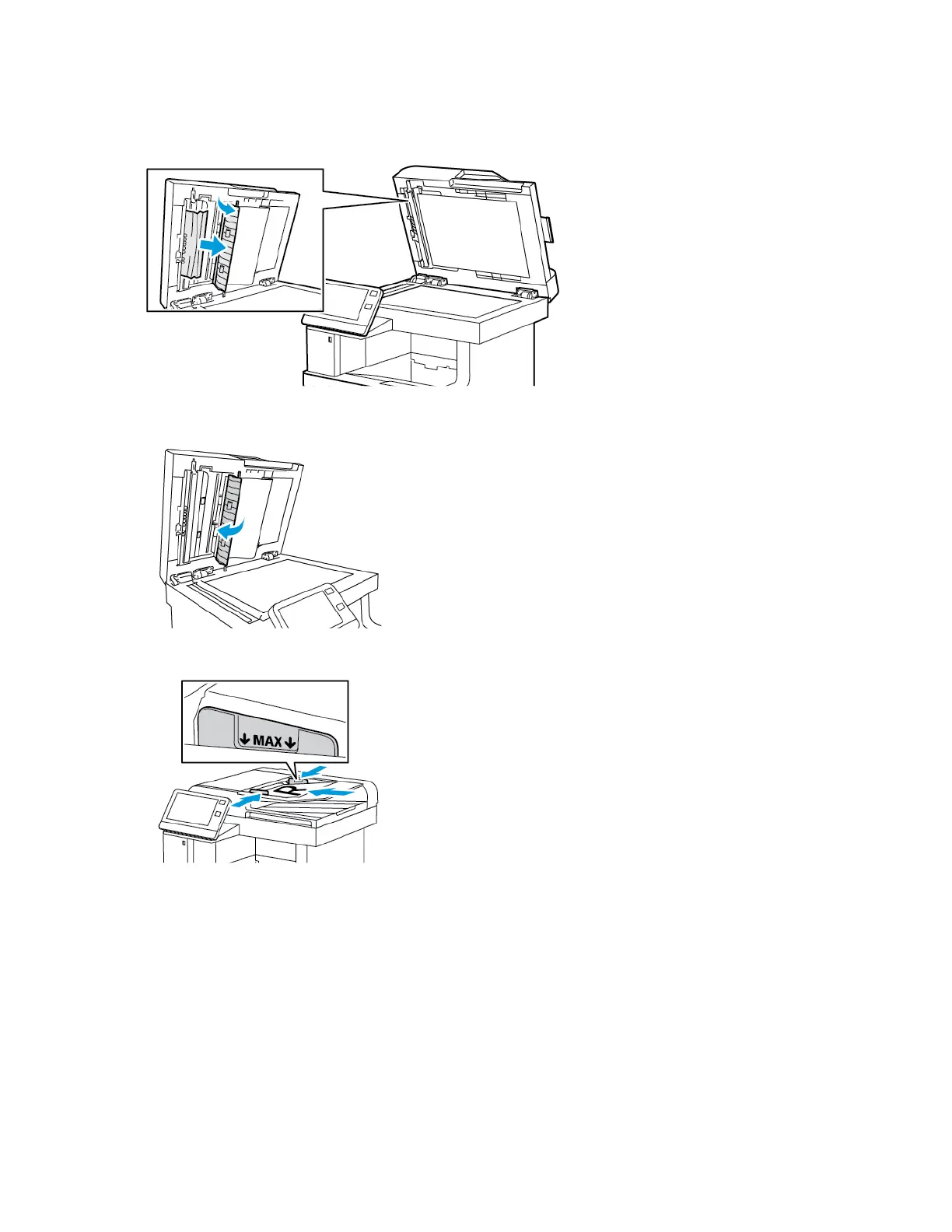

3. To access the jammed paper, open the Second-Side Scanning Access Cover, then remove any
jammed paper.
4. Close the Second-Side Scanning Access Cover.
5. Close the Document Cover, then reload the document in the Duplex Automatic Document Feeder.
To prevent paper jams:
• Do not load original documents above the MAX fill line.
• Adjust the paper guides so that they fit against the original documents.
• Use only supported paper. For more information, refer to Document Feeder Guidelines.
216
Xerox
®
VersaLink
®
C505 Color Multifunction Printer
User Guide
Troubleshooting
