LLooaaddiinngg LLaabbeellss iinn TTrraayy 11

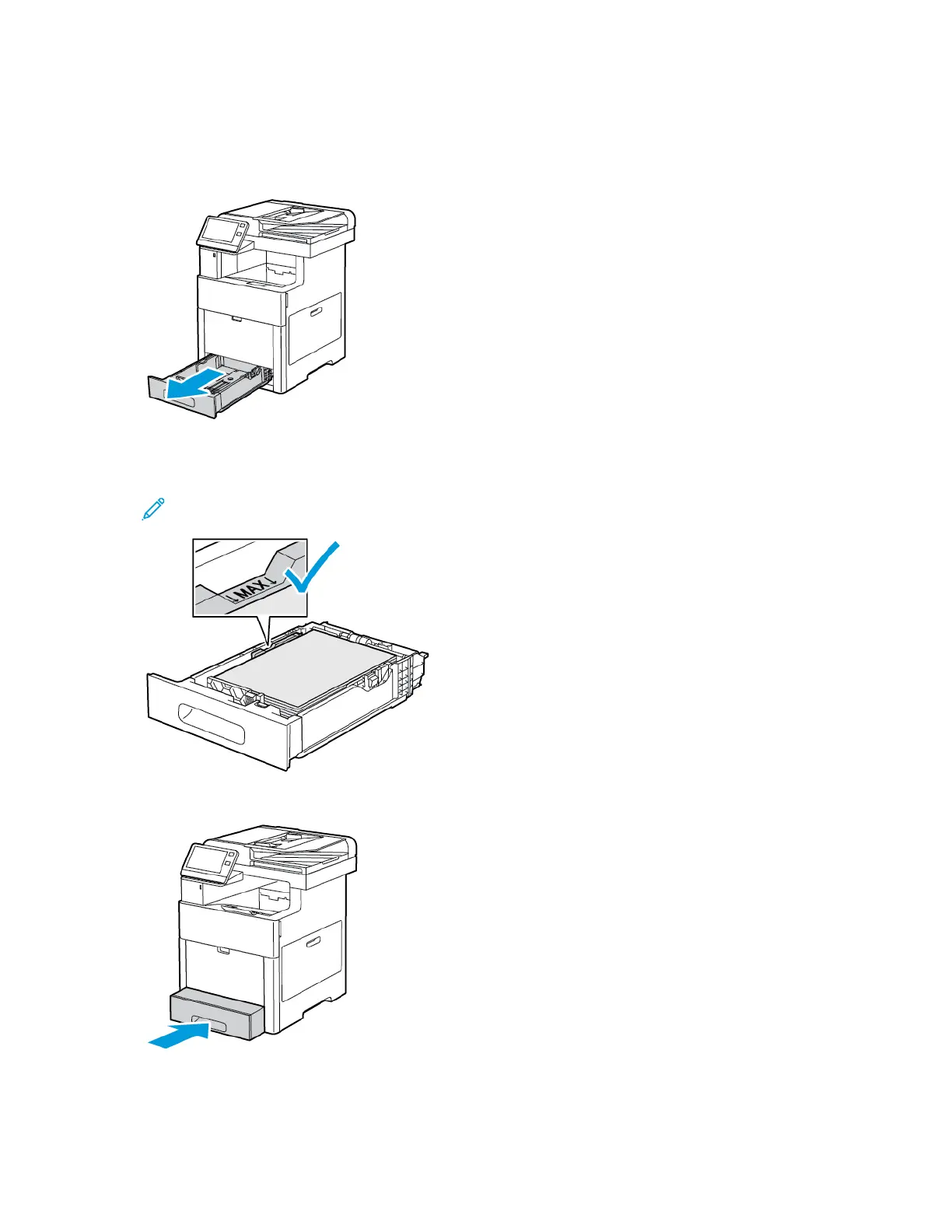

1. To remove the tray from the printer, pull out the tray until it stops. Lift the front of the tray
slightly, then pull it out.
2. Adjust the paper length and width guides.
3. Load the label sheets in the tray, face up.
Note: Do not load paper above the maximum fill line. Overfilling can cause paper jams.
4. Slide the tray back into the printer.
178
Xerox
®
VersaLink
®
C605 Color Multifunction Printer
User Guide
Paper and Media
