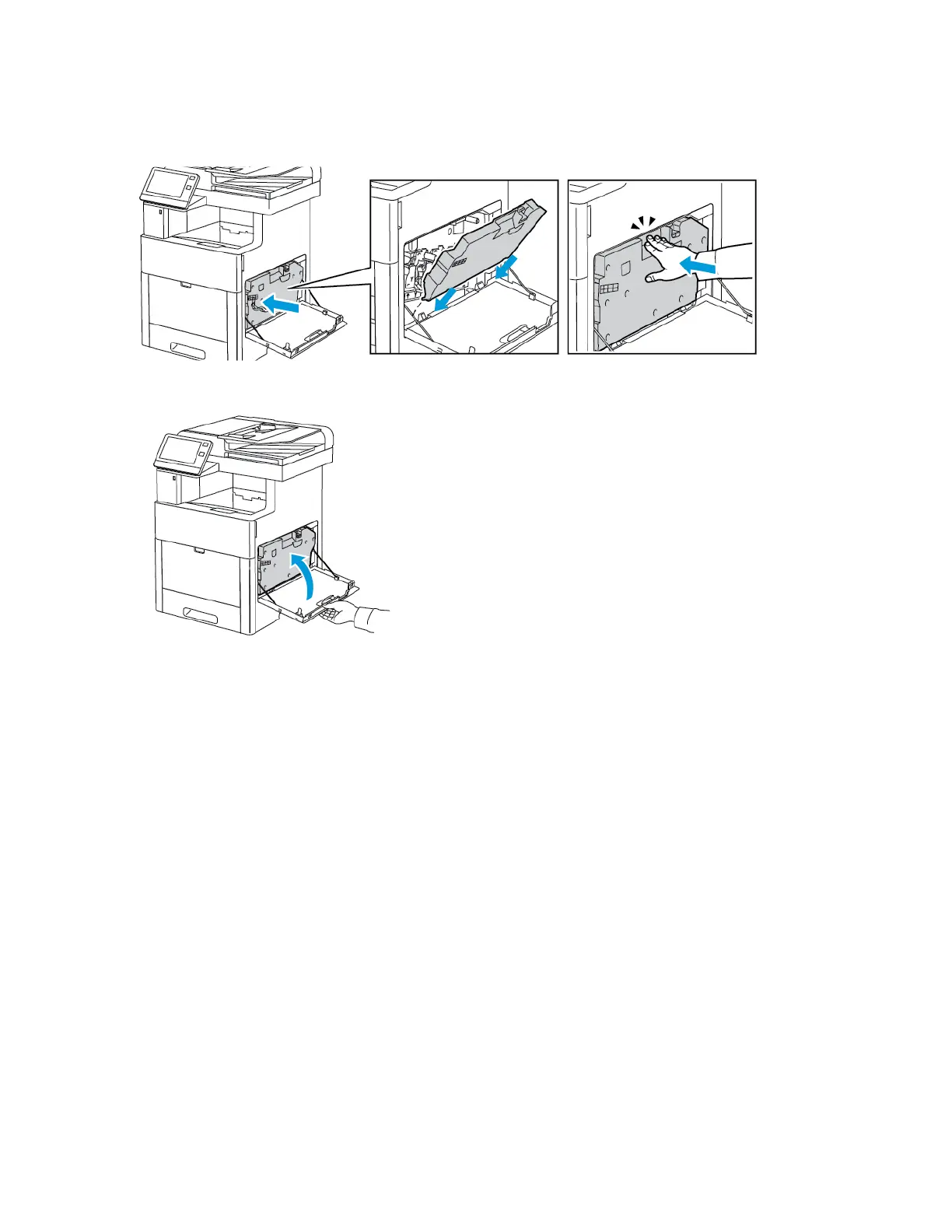

10.
T
o
reinsert
the
waste
cartridge,
lower
the
bottom
of
the
cartridge
into
position.
T
o
lock
the
cartridge
into
place,
push
the
top
f
orward
until
the
latch
clicks
into
place.
11.
Close
the
right-side
door.
Xerox
®
V
ersaLink
®
C605
Color
Multifunction
Printer
User
Guide
189
Maintenance
188
190
