Xerox WorkCentre 6027 MFP

Parts List
Phaser 6020/6022 and WorkCentre 6025/6027 MFP
Service Manual
5-45

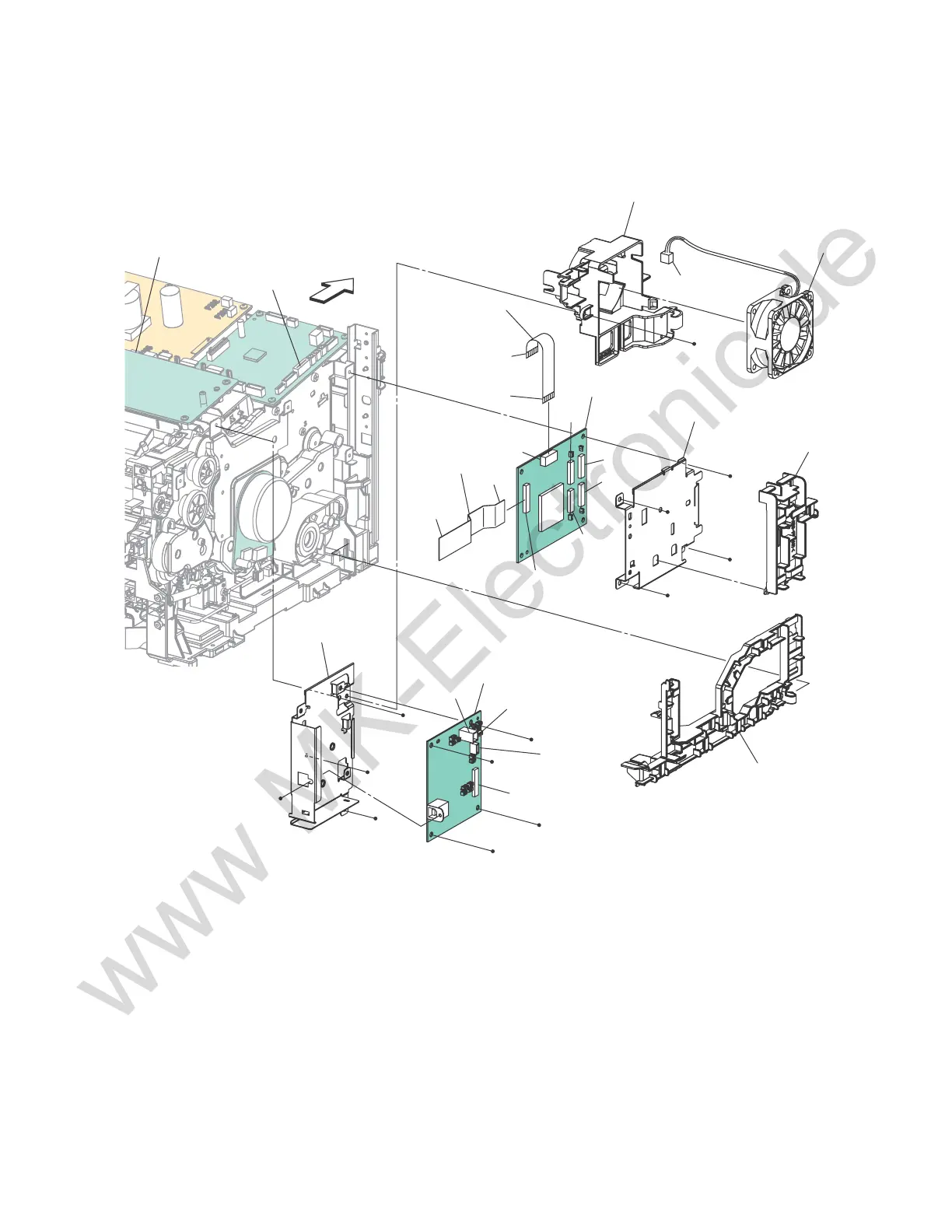

PL 7.1 Electrical (1/2)
s6020-632
Front
1
8
10
9
2
3
4
5
6
7
(J205)
(J1)
(J23)
(J10)
(J1)
(P1)
(P2)
(P3)
(P5)
(P4)
(P9)
(P8)
(P1)
(P112)
SM2
SM2
SM2
SM2
(P205)
(P23)
SM2
SM2
SM2
SM2
SM2
SM2
SM2
SM7
SM2
(P11)
