2

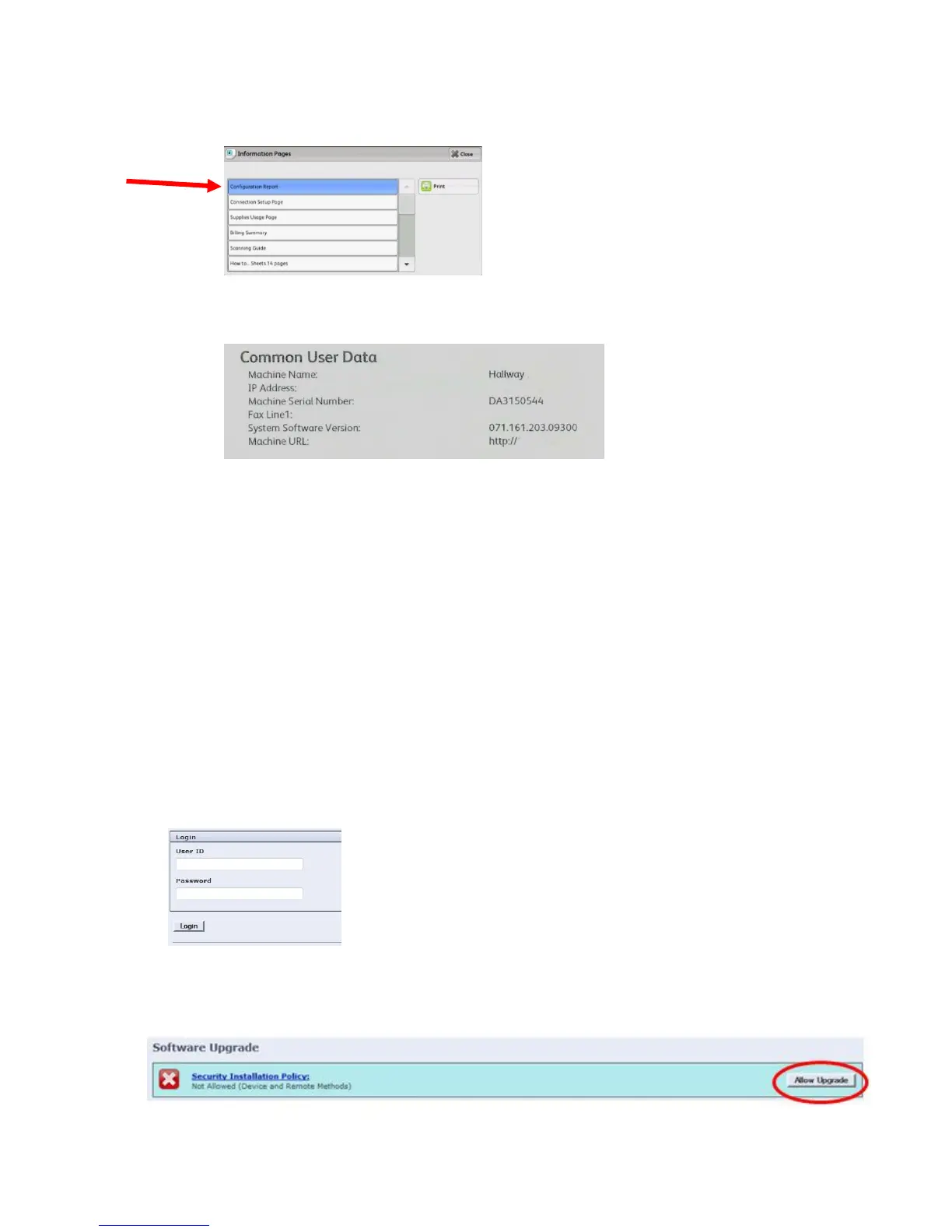

c. Select Configuration Report, and then press the Print button.
d. Find your System Software Version under the section titled Common User
Data.
2. Record the IP address: ____________________.
3. Record the software version: _______________________.
ALERT! Print and keep a configuration report for reference until
after the software update has been completed.
Install Upgrade File “WorkCentre_6655-system-
sw#073110xxxxxxx#.DLM
1. Open a new Web Browser window and enter the WorkCentre’s IP Address, using the format
"http://xx.xxx.xxx.xx".
2. Select the Properties tab located at the top of the page.
3. A Login screen may be displayed, use the System Administrator’s username and password.
4. Select the General Setup option, then select Software Upgrade.
5. If Software Upgrade is disabled, it will need to be enabled. Select the Allow Upgrade
button.
To Next Page
