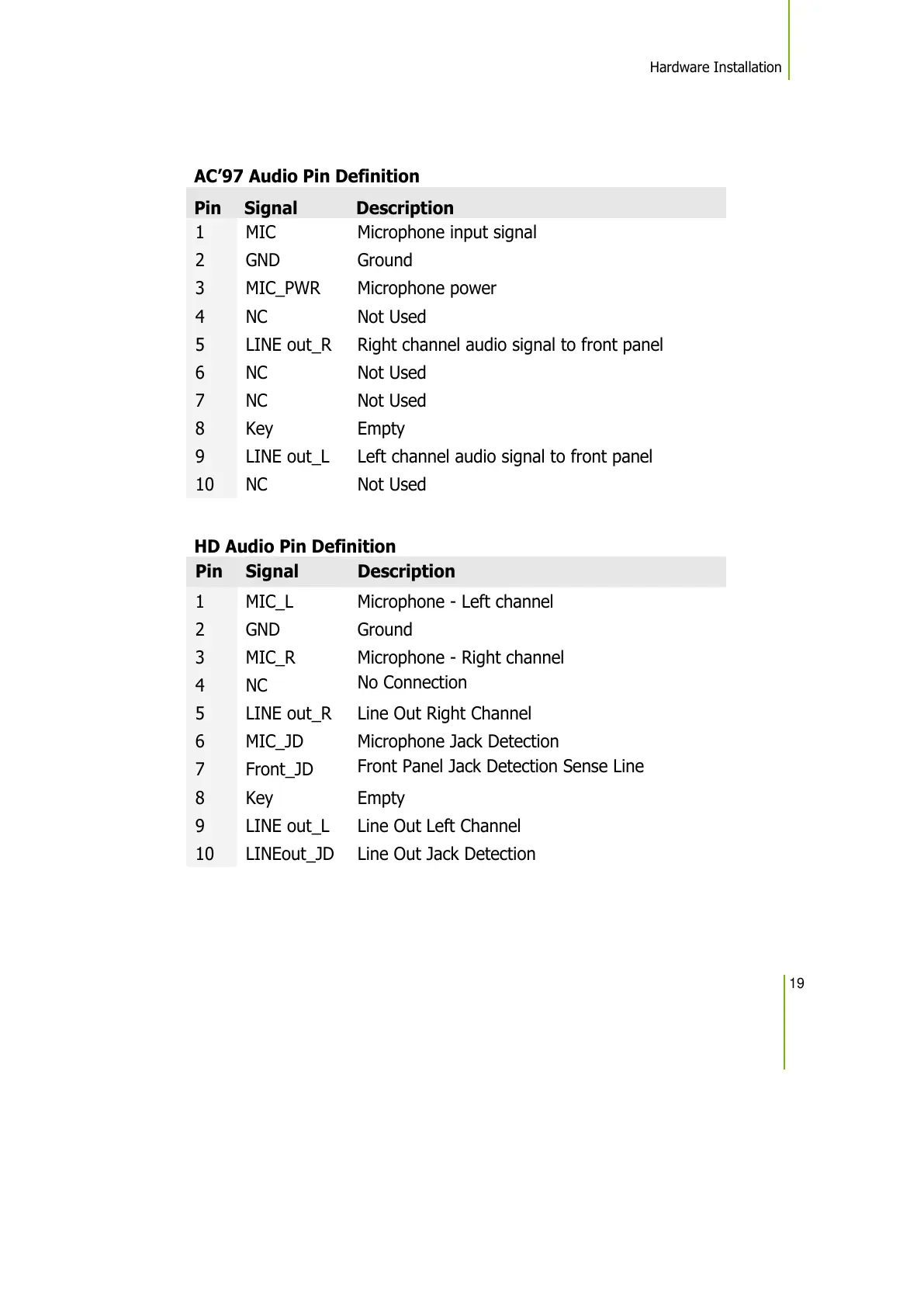

Hardware Installation

AC’97 Audio Pin Definition

Pin Signal Description

1 MIC Microphone input signal

2 GND Ground

3 MIC_PWR Microphone power

4 NC Not Used

5 LINE out_R Right channel audio signal to front panel

6 NC Not Used

7 NC Not Used

8 Key Empty

9 LINE out_L Left channel audio signal to front panel

10 NC Not Used

HD Audio Pin Definition

Pin Signal Description

1 MIC_L Microphone - Left channel

2 GND Ground

3 MIC_R Microphone - Right channel

4 NC

No Connection

5 LINE out_R Line Out Right Channel

6 MIC_JD Microphone Jack Detection

7 Front_JD

Front Panel Jack Detection Sense Line

8 Key Empty

9 LINE out_L Line Out Left Channel

10 LINEout_JD Line Out Jack Detection
