Xhorse KEY TOOL PLUS - Page 9

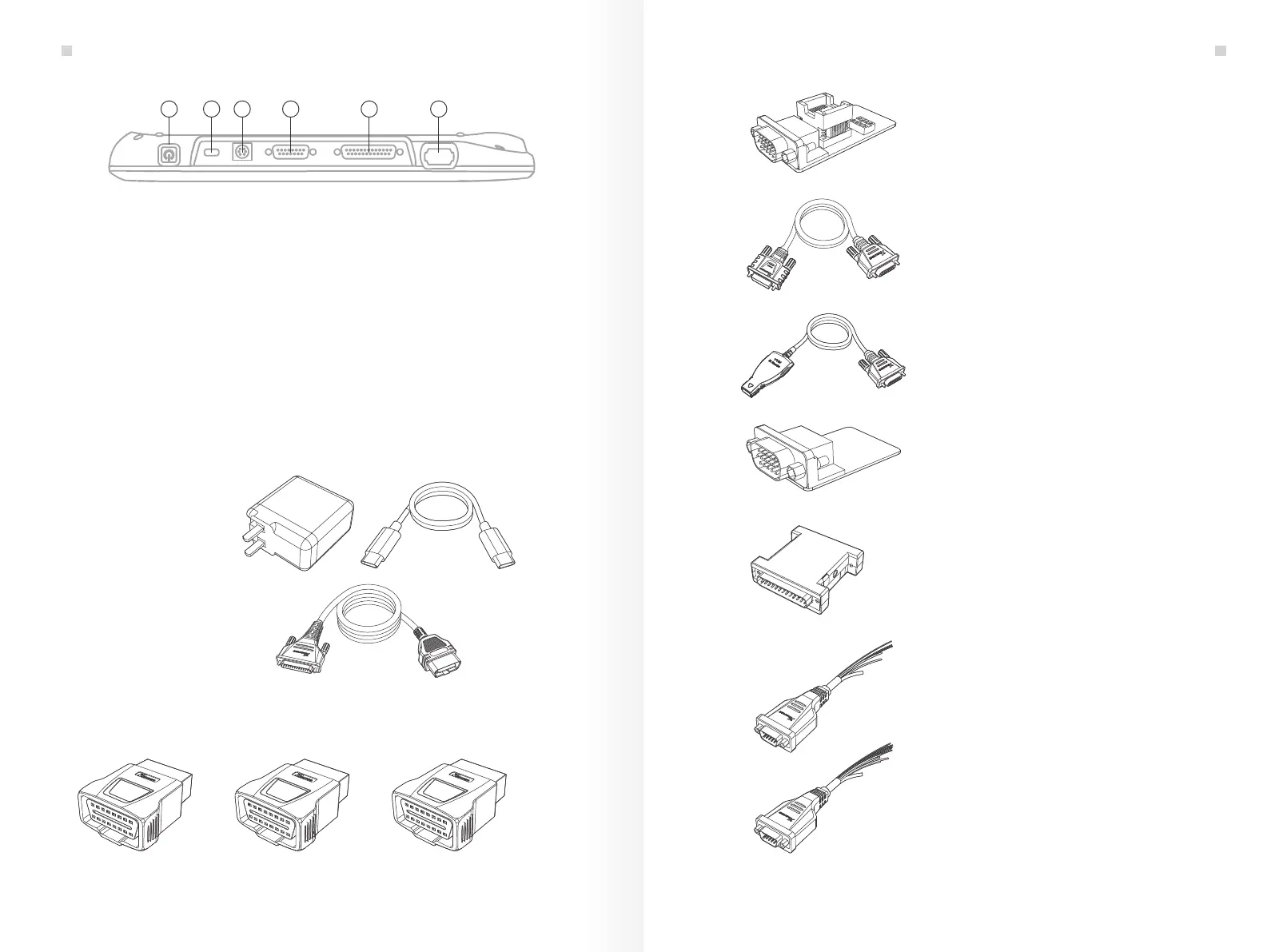

4.2.2 Accessories
10 11 12 13 14 15
⑩ On / Off / Screen Lock
⑪ USB charging port----support standard fast charge adapter and standard
Type-C port DC-5V input
⑫ PS2 port for remote generation
⑬ DB15 port----support standard & optional programming adapters with DB15 port
⑭ DB25 port for OBD immo programming
⑮ Benz Infrared (IR) port----support IR read Benz FBS3 & FBS4 smart key
----support Benz IR reader
① Charger & USB cable
② OBD_DB25 cable
apply for connecting
vehicle OBD port
⑧ BENZ_power adapter----BENZ non-removal adapter
③ OBD connector
apply for connecting non-OBD II vehicle choose the fitting connector depending
on the car models and interface
④ EEPROM adapter----Adapter for programming
⑤ DB15_15 connector----Connector for programming
⑥ Benz IR reader----Infrared data collection adapter
⑨ 9s12xE----Cable for reading and writing
Motorola 9S12 series chip
⑦ Benz adapter----NEC adapter
NEC adapters----We provide 3 different
adapters depending on the versions of
Benz NEC smart remote.
⑩ MCU----Cable for reading
and writing MCU chip
KIA 10 pinKIA 20 pin KIA 3 pin
KEY TOOL PLUS Overview
11 12
KEY TOOL PLUS Overview
