Unpacking and Installation, TWTA Octagon CPU
MNC-0300-003 10 of 22 Revision N
Power and Interface Interconnections
When performing the procedures in this section refer to the
Wiring and Interconnect Drawings for your specific amplifier.
These drawings are located in the appendix titled Interconnect
Drawings.
Prime Power Connections
The AC Prime Power receptacle is located on the amplifier front
panel. Nominal line voltage is 100 to 260 VAC (180 to 260 VAC
on some high power units), 47-63 Hz, single phase. The
amplifier will operate when the AC line voltage is anywhere in
the specified range. Figure 3 , Connector J2 Pinout for Standard
Unit shows the pinouts for standard ODU. If you have an EIK
(Extended Interactive Klystron) refer to Figure 4 , Connector J2
Pinout for EIK Unit.

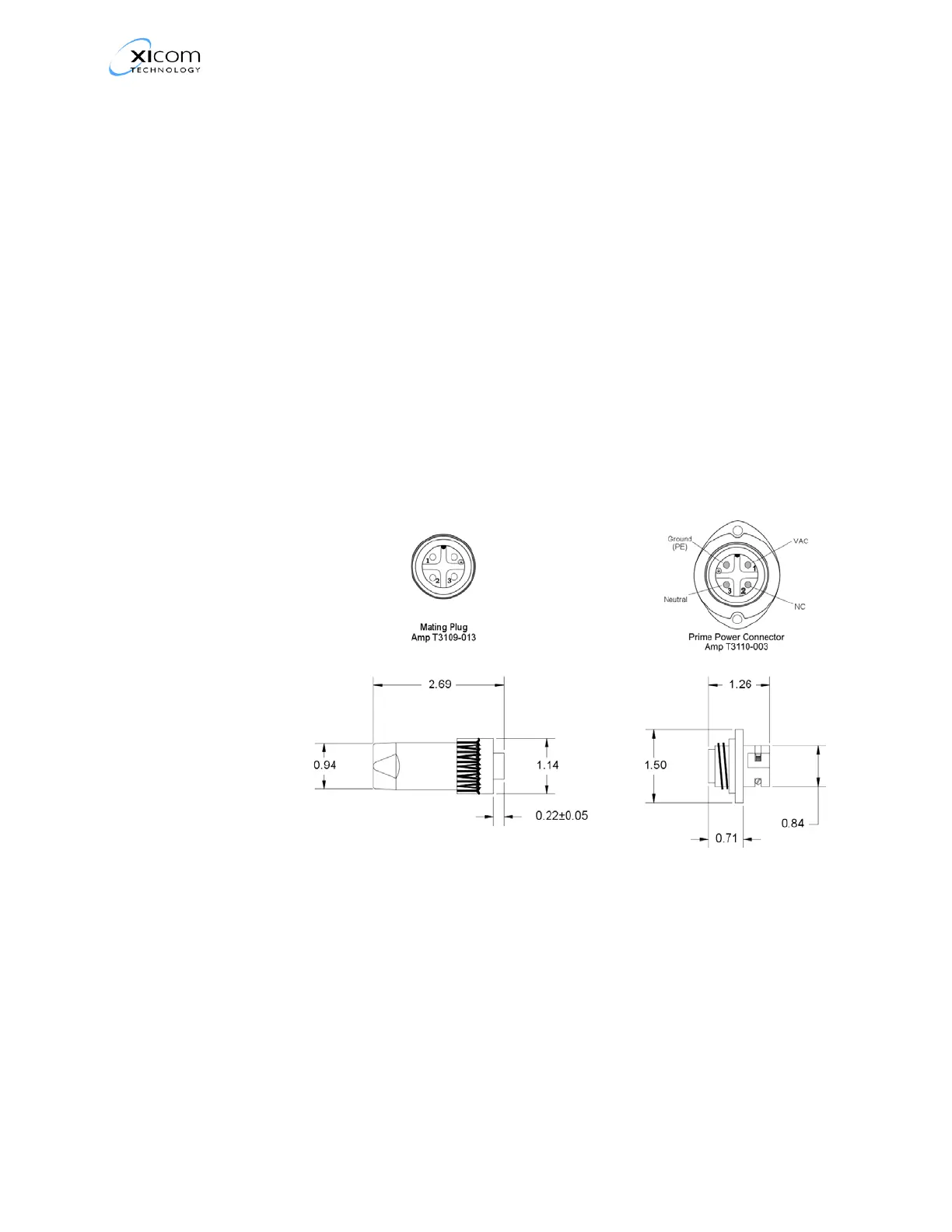

Figure 3, Connector J2 Pinout for Standard Unit
To Next Page
