Xilinx Alveo U50 User Manual

Creating an RTL Project Based on the U50
Board File
For designers using RTL ow, use the following steps to create an RTL project using the U50
board le.
1. Launch Vivado tools.
2. Create a new project by clicking on File → Project → New. Click Next.
3. Add a project name and click Next.
4. Select RTL Project as the Project Type and click Next.

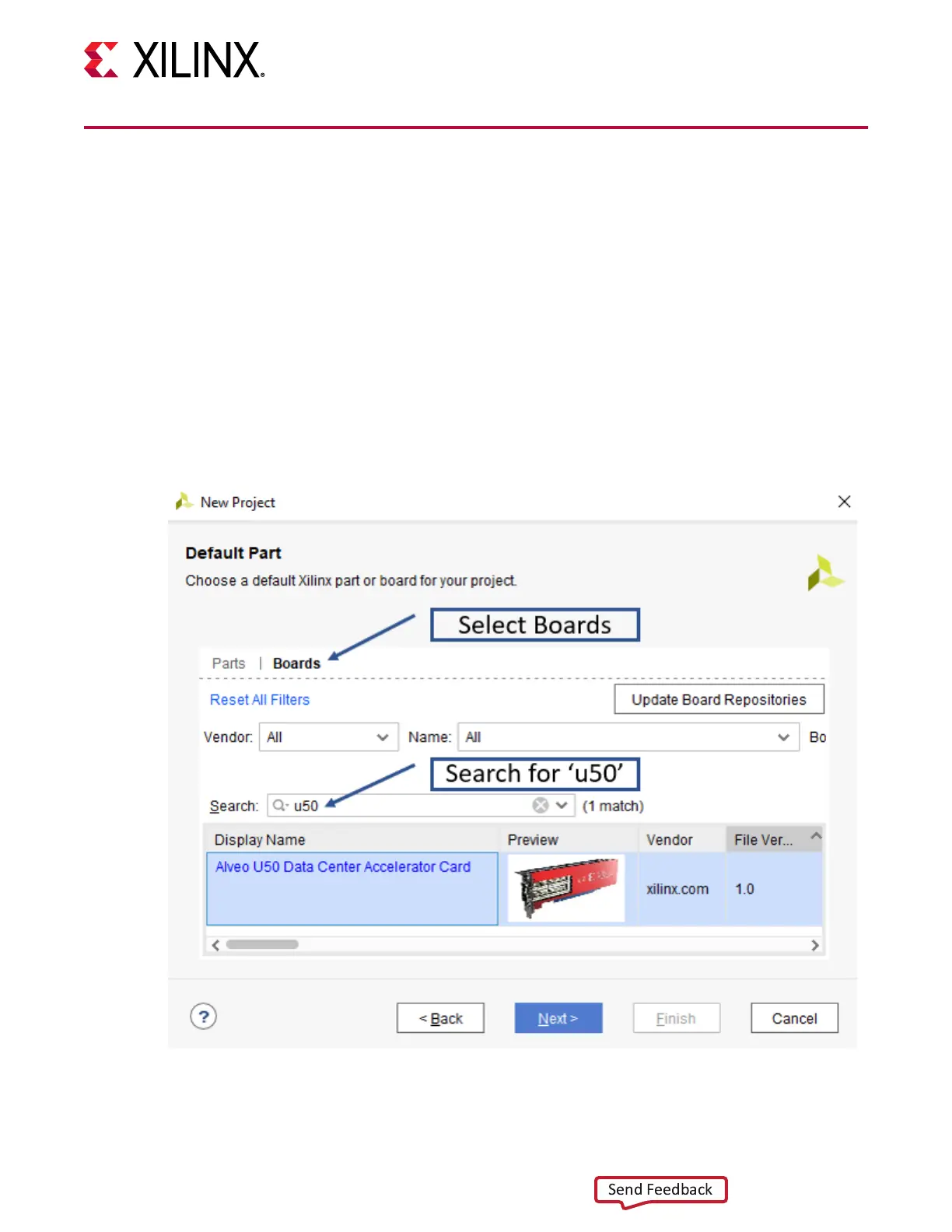

5. Within the Default Part window, select Boards and enter u50 in the search tab. Select the
U50 card and click Next as shown in the following gure.
This will create a new RTL project based on the Alveo U50 accelerator card.
Chapter 2: Vivado Design Flow
UG1371 (v1.2) December 18, 2019 www.xilinx.com
Alveo U50 Accelerator Card User Guide 11
Send Feedback
