Xinje DS5F-21P5-PTA User Manual

23

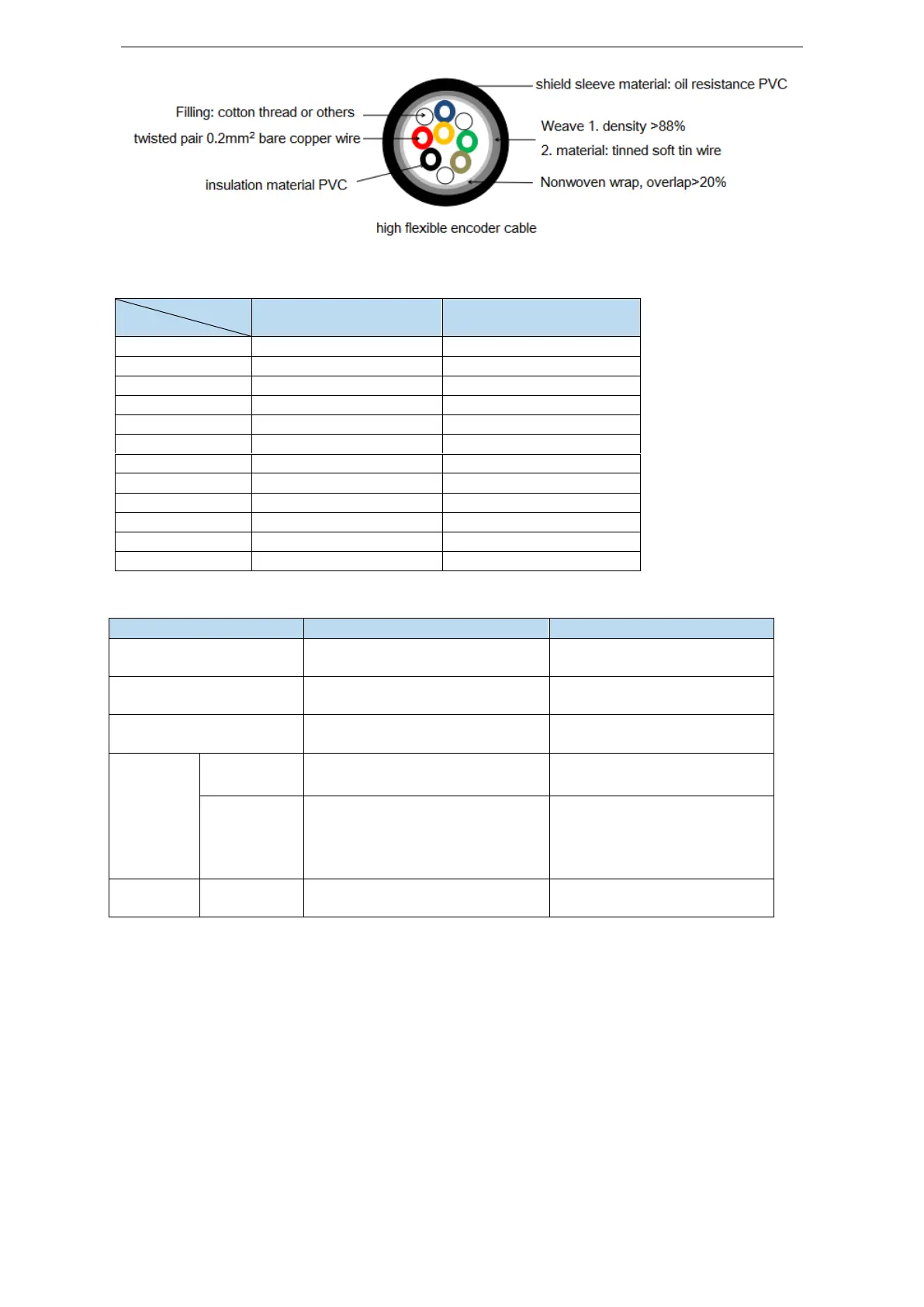

2. Cable diameter specification
type
power
Encoder cable
Power cable
100W
4*0.2mm²+2*0.3mm²
4*0.75mm²
200W
4*0.2mm²+2*0.3mm²
4*0.75mm²
400W
4*0.2mm²+2*0.3mm²
4*0.75mm²
750W
4*0.2mm²+2*0.3mm²
4*0.75mm²
1.5KW
4*0.2mm²+2*0.3mm²
4*1.5mm²
3.0KW
4*0.2mm²+2*0.3mm²
4*2.5mm²
5.5KW
4*0.2mm²+2*0.3mm²
3*6.0mm²+1*2.5mm²
7.5KW
4*0.2mm²+2*0.3mm²
3*6.0mm²+1*2.5mm²
11KW
4*0.2mm²+2*0.3mm²
3*6.0mm²+1*2.5mm²
15KW
4*0.2mm²+2*0.3mm²
3*6.0mm²+1*2.5mm²
22KW
4*0.2mm²+2*0.3mm²
3*8mm²+1*4mm²
32KW
4*0.2mm²+2*0.3mm²
3*12mm²+1*4mm²
3. Cable performance specification
Performance
Normal cable
High flexible cable
Ordinary temperature
resistance
-20℃~80℃
-20℃~80℃
Encoder cable withstand
voltage
1000V/min
1000V/min
Power cable withstand
voltage
3000V/min
3000V/min
Mobile
installation
Bending
radius
Travel ＜10m，7.5*D；
Travel ≥10m，10*D；
Travel ＜10m，7.5*D；
Travel ≥10m，10*D；
Bending
resistance
times
Travel ＜10m, ≥1 million times；
Travel ≥10m, ≥2 million times；
Travel ＜10m, ≥3 million
times；
Travel ≥10m, ≥5 million
times；
Fixed
installation
Bending
radius
5*D
5*D
Note: D represents the finished product cable diameter.
