XP3 PLC/HMI Hardware Manual Page 24 of 42 LMAN007_R2V2
Note:
Use tools to edit the picture ensuring the proper size and contrast, and then add to the project
screen.
Normally, to OP series operate panel, the size is not larger than 180×60 pixels.
Regarding LOGO pictures, the size is not larger than 35×35 pixels.
Regarding the pictures, the size is not larger than 60×60 pixels.
2-4-11 Touch

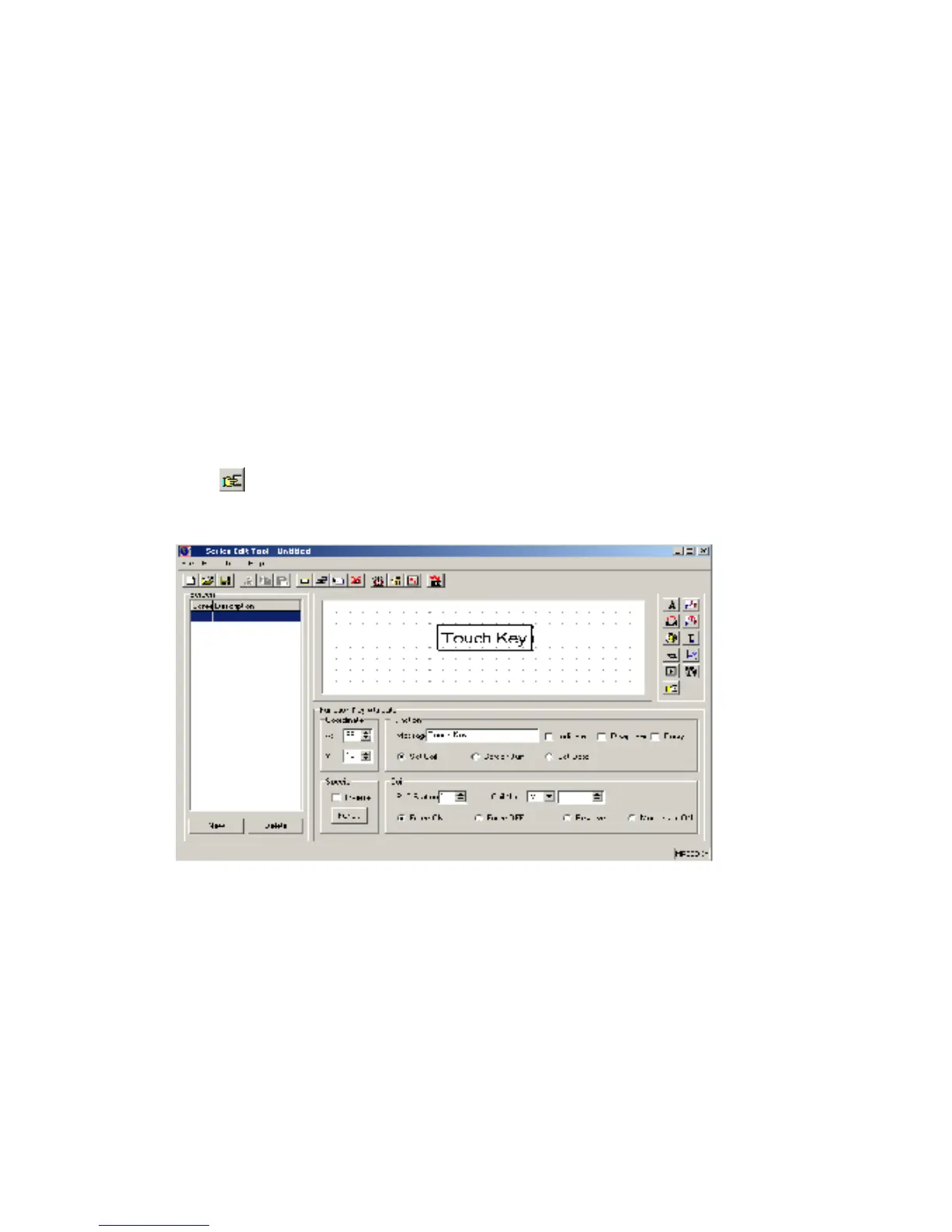

Press key and place it in the display area. This unit is the same with the function key. The
difference is: this unit is a vector key. The font and size can be changed; it also supports touch
function.
Function: Please refer to the function key.
Coil: please refer to the function key.
