XM SureConnect - Option 2: Internal On-Glass FM Antenna Installation Guide; Identifying the Internal On-Glass FM Antenna

single
contact
dual contact
open ends vertical
element
non-uniform
spacing
uniform spacing
FM Antenna
Rear Window
(may be hidden)
(may be hidden)
DO NOT PLACE ON DEFOGGER
Identifying the OnGlass FM Antenna in Your Vehicle
UUsseeffuull IInnffoorrmmaattiioonn ffoorr SStteepp 11::
CCAAUUTTIIOONN::
Do not attach the On-Glass Antenna Bracket to the rear defog-
ger elements. In some vehicles they look similar to the FM Antenna.
You can distinguish the FM Antenna Elements from the Defogger Elements

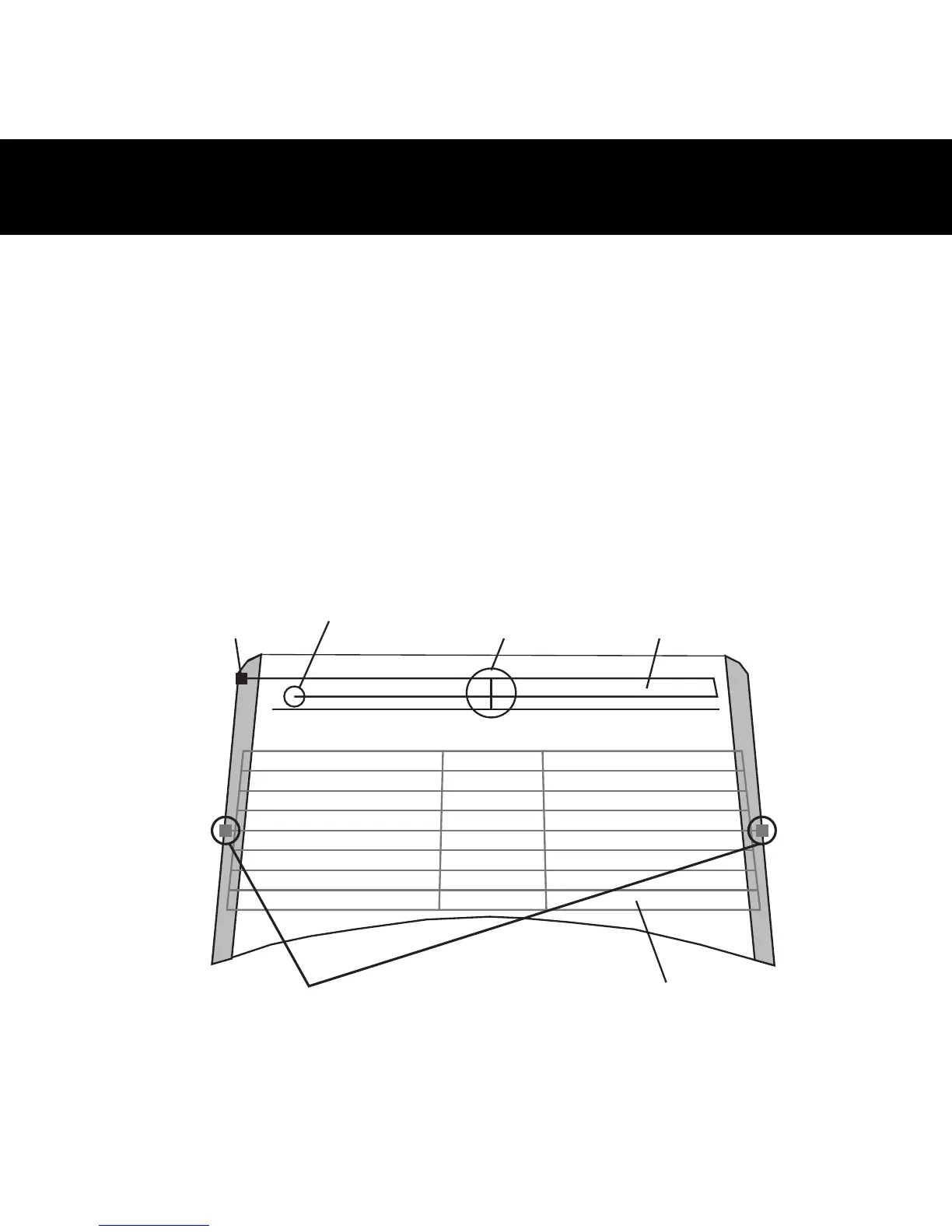

by several key features. See Figure 5.
Option 2: Internal OnGlass FM Antenna Installation
10
Option 2 (continued)
Figure 5
