Step 2:
In the rear, route the XM
SureConnect output cable from
the antenna element, along the
window edge, down to the win-
dow liner. From the rear passen-
ger compartment tuck the cable
under the carpet or door jam
trim until you reach the front
dash area, ending at the XM

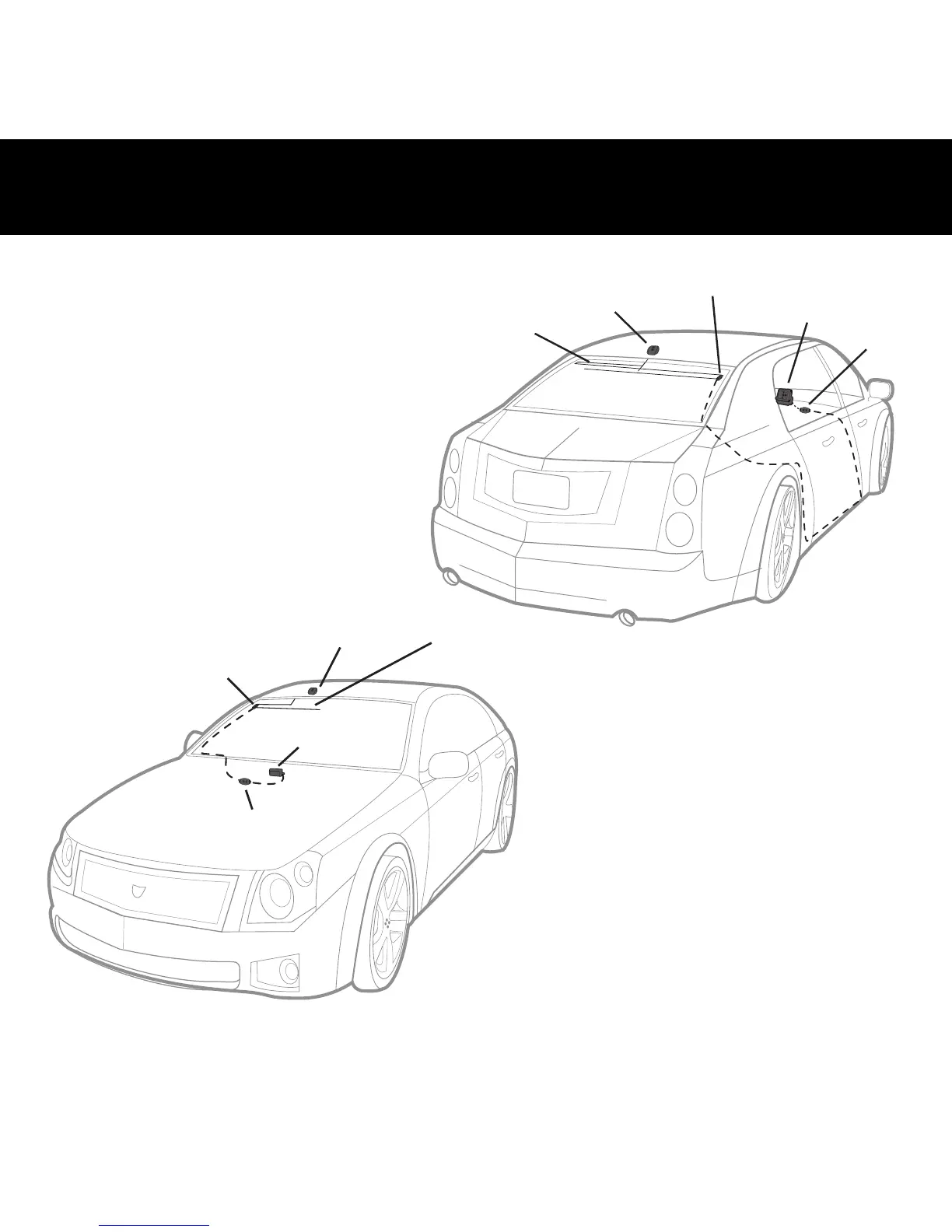

Receiver. (See Figure 7.)
In the front, route the XM
SureConnect output cable from
the antenna element, along the
windshield edge, down to the
window liner along the floor and
up to the dash as shown in
Figure 8.
Figure 7
Figure 8
14
NNoottee::
XM antenna cables are not illustrated.
To Next Page
