XM SureConnect - Page 13

Internal OnGlass FM Antenna OnGlass Antenna Bracket
Installation
OnGlass Antenna Bracket and Coupling Clip Installation (cont.)
13
contact strip
adhesive pads
antenna element in
glass
no boot
required
(a)
(b)
(c)
(d)

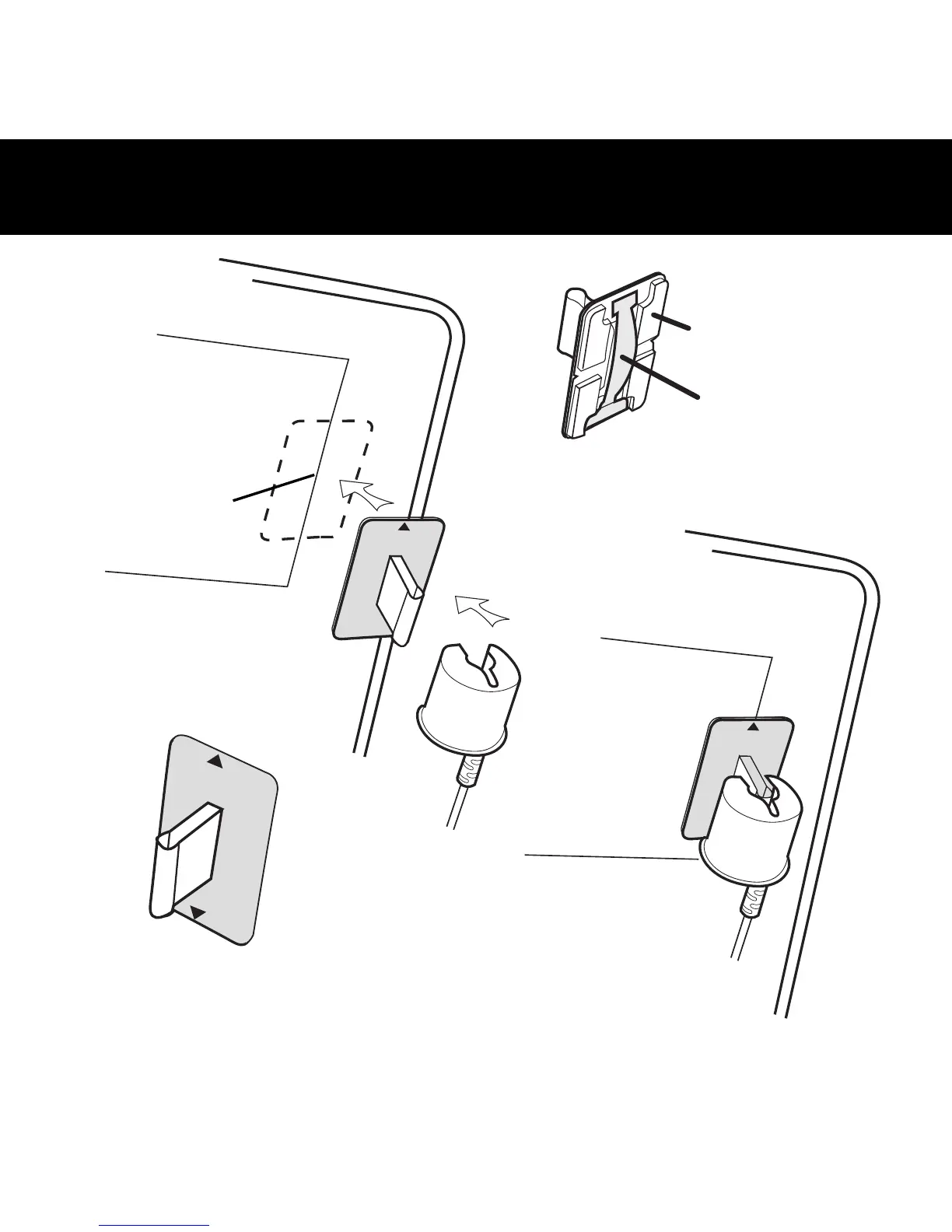

On-Glass Contact Bracket
with arrows for alignment
Figure 6
Clean this area.
Must be dry.
