Brake Switch
BMW 5 Series (F10)
BMW 5 Series (F10)
Pin 6 - White/Blue
Pin 7 - Black/White
Pin 8 - Orange
PTS Wires
Can H - Yellow/Red
Can L - Yellow/Brown

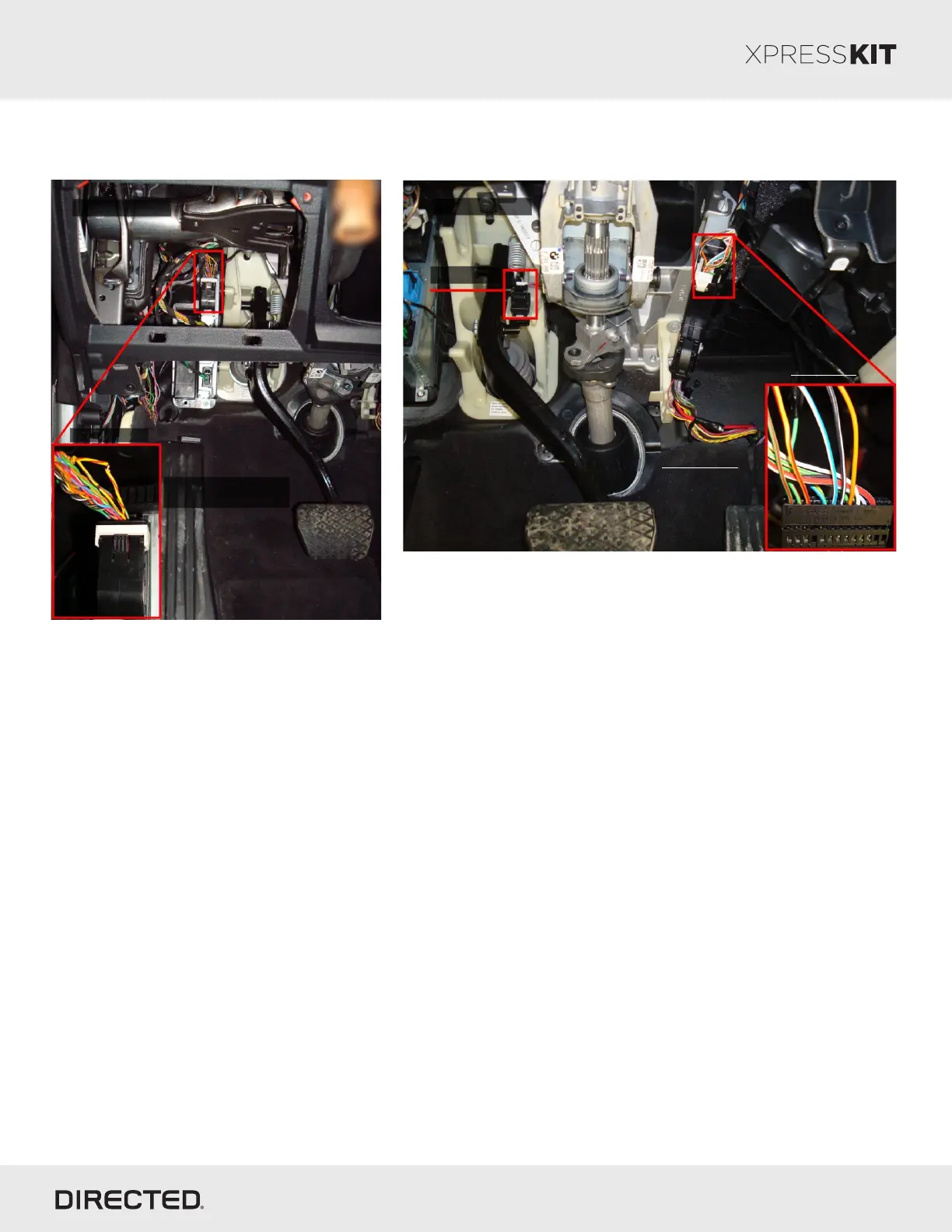

Locating components in the vehicle
CAS Plug
Can Gateway
NOTE: Pictures above are representative for BMW 5 Series.
For other models it is possible to differ the location of modules and wires color (except CAN wires)
