Remote
Starter
10
Programming button
LED
14
122
5: Orange/Green: FT CAN High
6: Orange/Brown: FT CAN Low
7: Brown: NO Relay1
10: Orange/Red: NC Relay2
8: Yellow: COM Relay1
11: Yellow/Red: COM Relay2
9: Orange/Yellow: NC Relay1
RF Loop connector
Twisted pair in driver kick panel
CAN High: Orange/Green
CAN High: Black
CAN Low: Green
OR
CAN Low: Yellow
5 Series, 6 Series
1 Series, 3 Series,
X1, X5, X6, Z4
7: Gray/Black: (+) Ignition Status Output
Purple/White
Blue/Red
Blue/Red
Brown/Gray
Brown/Gray
Brown/Black
BCM
CUT
CUT
Located at
brake pedal
Brake switch
1
2
3
4
Wire Side View
11: Orange/Black: (-) KIBMW5 Output
12: Blue/Red: (-) KIBMW5 Output
3: Green/White: (-) KIBMW5 Output
4: Red/Black: (-) KIBMW5 Output
10: Yellow/Black: (+) KIBMW5 Output
P#: XKD2D65
D2D
D2D
5: Violet/White: (AC) Tach Output
Connect the KIBMW5 Cable to the Key barrel
after programming the DB-ALL module

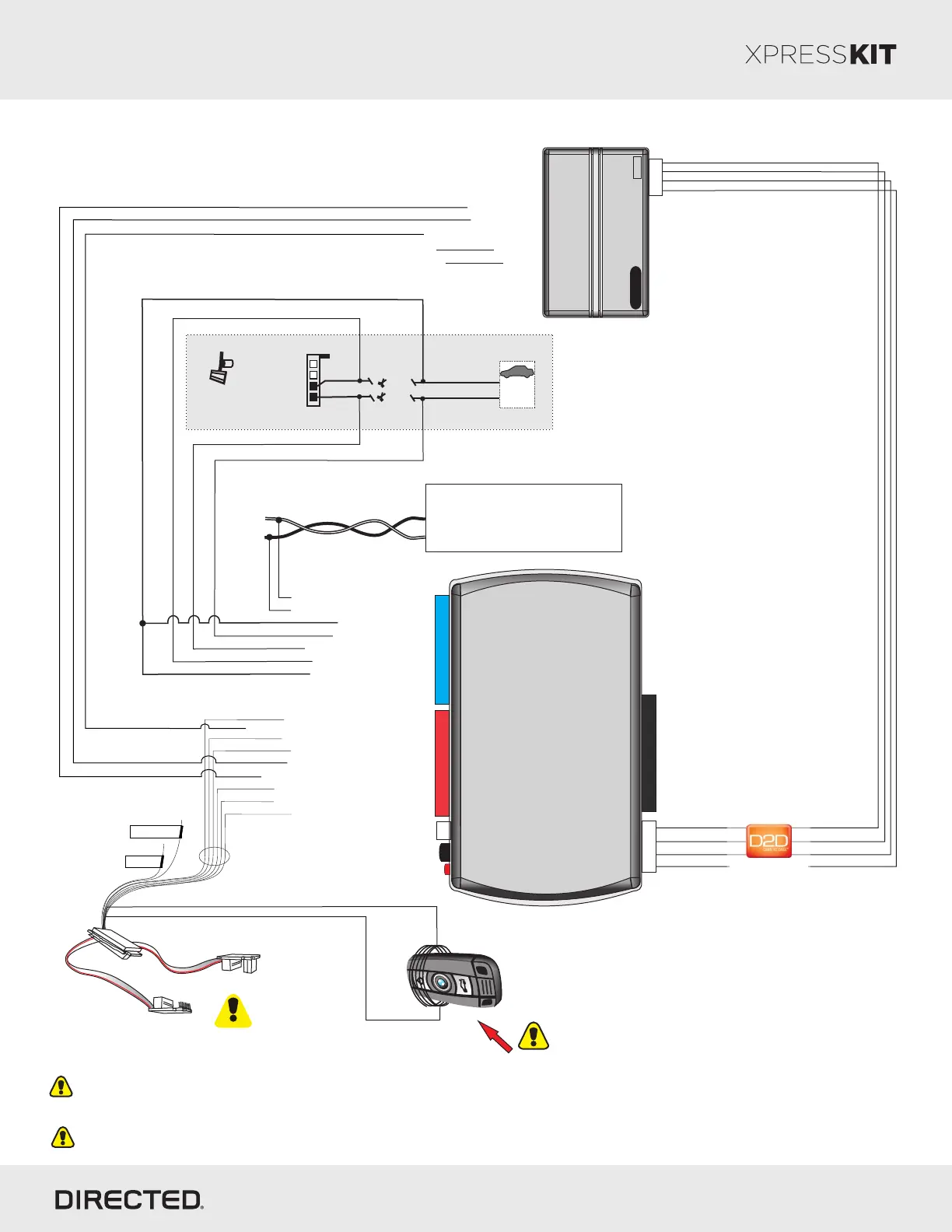

INSTALLATION - TYPE 2 (Automatic Transmission)
(AC) Tach Input
(+) Ignition Input
(-) Ground
(-) Ground
(+) 12V
(+) 12 V
Wires are listed by pin numbers. This display is not representative of connector pin layouts, which are often stacked.
With the exception of the OBII Diagnotistic plug, all connectors are displayed from the wire side.
Connections between
DBALL and KIBMW5
module are ready-made
KIBMW5 MODULE
(+) 12v
(-) Ground
12
turns
Make 12 loops and place them around
the front of the plastic body
of the vehicle’s coded key as shown.
1: Black/White: (-) KIBMW5 Output
Remove battery from
OEM Remote Control
Page 6
DBALL/
DBALL2
(-) Handbrake Status Input*
2: Green/Black: (-) Handbrake Status Output*
* Handbrake connection is mandatory on Automatic and Manual Transmission cars
You must set “wait to start” feature menu at 10 seconds on your remote starter unit.
To Next Page
