Important! The Hood Pin and Remote Start Safety Override Switch are mandatory safety devices, but are NOT supplied with the DBALL.
Mini-relay is recommended, but is not supplied.
Rev.: 20160608
Platform: DBALL/DBALL2
Firmware: CHRYSLER3 Remote Start Ready (RSR) Installation
© 2016 Directed. All rights reserved.
Keyless Ignition Node
(Black 6-pin conn.
at PTS switch)
123456

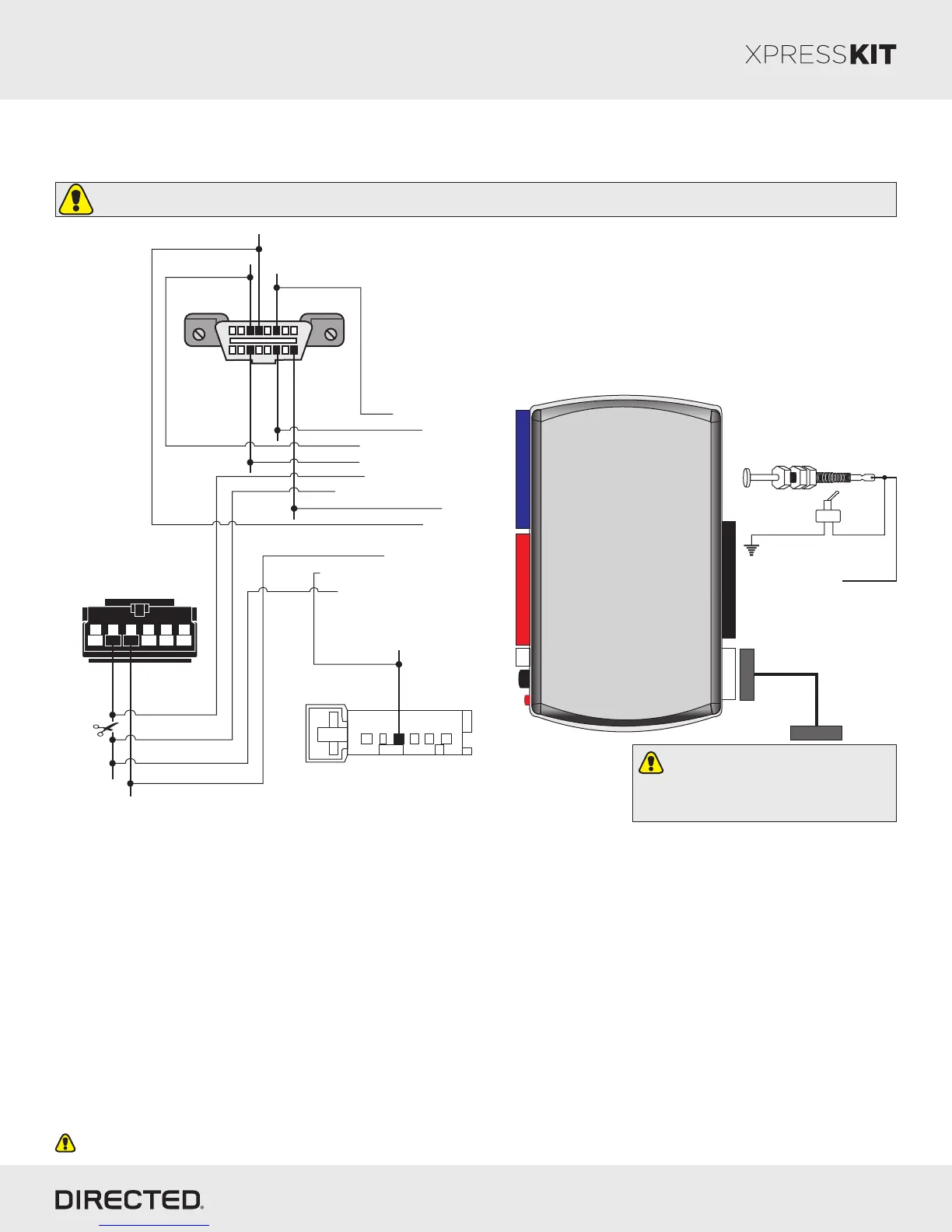

Type 1 Installation without T-harness
Page 3
10
DBALL/
DBALL2
RF
Programming button
LED
4
14 12 2
Immo. Data:
White/Lt. Green,
pin 5
(+) PTS: pin 4
6: White/Black: (-) Hood
Hood Pin
Required only when factory
hood pin is not available.
Remote Start Safety
Override Switch [1]
[1] If grounded, the vehicle will NOT start.
(-) Ground: Black, pin 4
(+) 12V:
Red, pin 16
1 8
169
HS CAN High:
Gray/White, pin 6
HS CAN Low:
Yellow, pin 14
OBDII
Diagnostic
Connector
Immo. Data (veh. side): Yellow/Black: 10
(+) PTS Output: Gray/Black: 7
(MUX) Parking Lights Output: Violet/Brown: 9
Immo. Data (conn. side): Yellow: 8
HS CAN High: Tan/Black: 3
HS CAN Low: Tan: 4
Immo. Data (veh. side): Orange/Yellow: 9
(-) Ground: Black: 14
(+) 12V: Red: 13
You can connect to either a XL202
RFTD OR a SmartStart module.
Refer to the SmartStart/XL202
Installation Notes for more information.
HS CAN2 High:
Gray, pin 3 [2]
DBALL2 ONLY
HS CAN2 Low:
White, pin 11 [2]
DBALL2 ONLY
[2] HS CAN2 Low: Orange/Brown: 6
[2] HS CAN2 High: Orange/Green: 5
[2] DBALL2 Only. Required for heated seats. Do NOT connect on DBALL.
With the exception of the OBDII Diagnostic connector, all adapters are displayed from the wire side (unless specified otherwise).
Refer to "Vehicle Wiring Reference Charts" section on page 5 for more information on vehicle-specific connections.
Parking Light (MUX):
White/Brown or
White/Lt. Green, pin 3
1 2 3 4 5 6
Black Connector
(at Headlight Switch)
