Xray T4'21 - Page 10

10

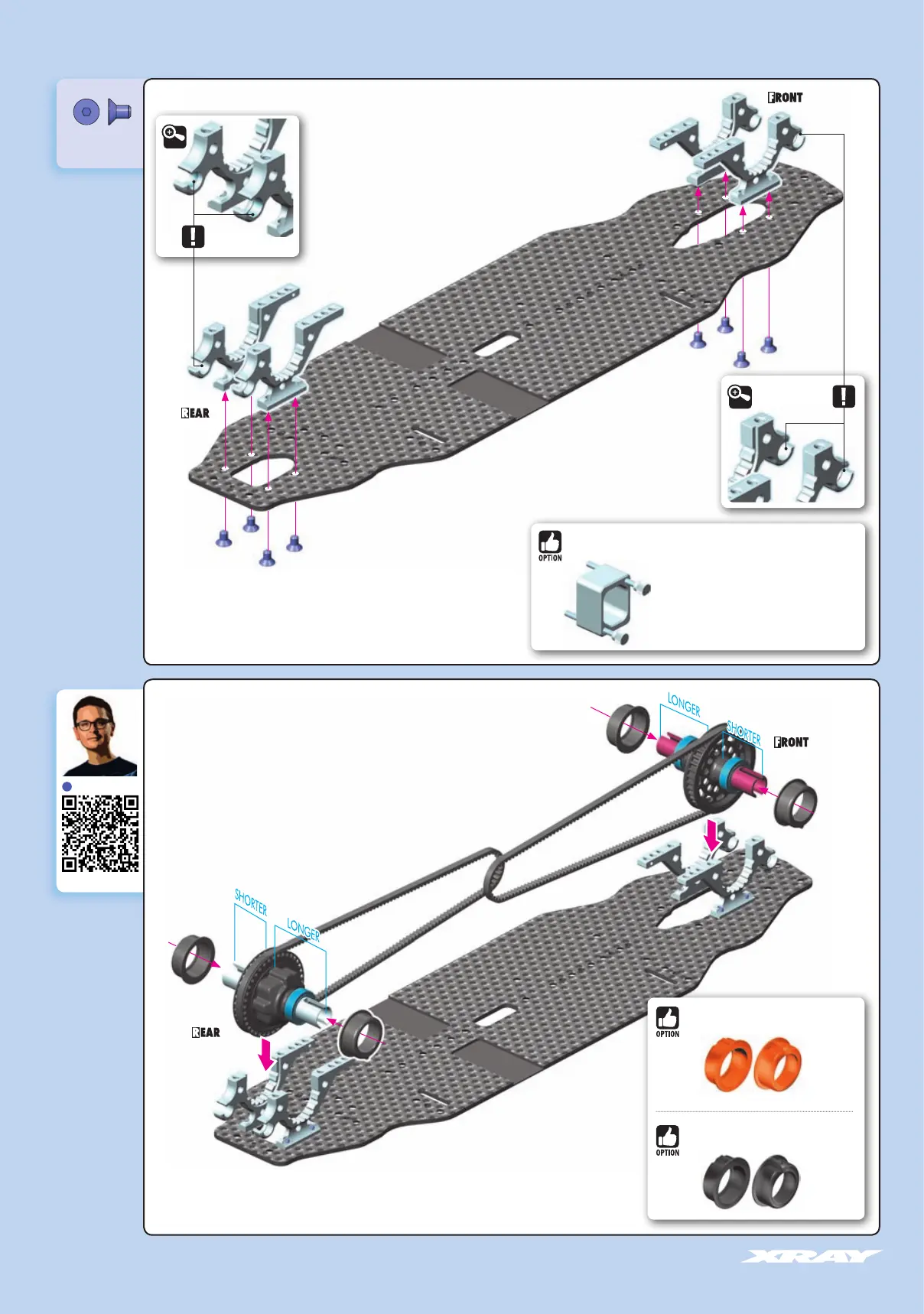

T4 BELT TENSION
VIDEO TECH TIP
▶
903305
SFH M3x5
#183001
HUDY PROFESSIONAL BULKHEAD ALIGNMENT TOOL 17MM
To align the bulkheads straight, we suggest using
the HUDY Professional Bulkhead Alignment tool.
See page 13
2. CENTRAL TRANSMISSION
SOLID AXLE
GEAR DIFF
#302063 OR #302063-K
ALU ADJUSTMENT BALL-BEARING HUB (2)
#302063 OR #302063-K
ALU ADJUSTMENT BALL-BEARING HUB (2)
DETAIL
NOTE
ORIENTATION
DETAIL
NOTE
ORIENTATION
