11
902303
SH M3x4
970050
O 5x1
966081
CH-CLIP 8

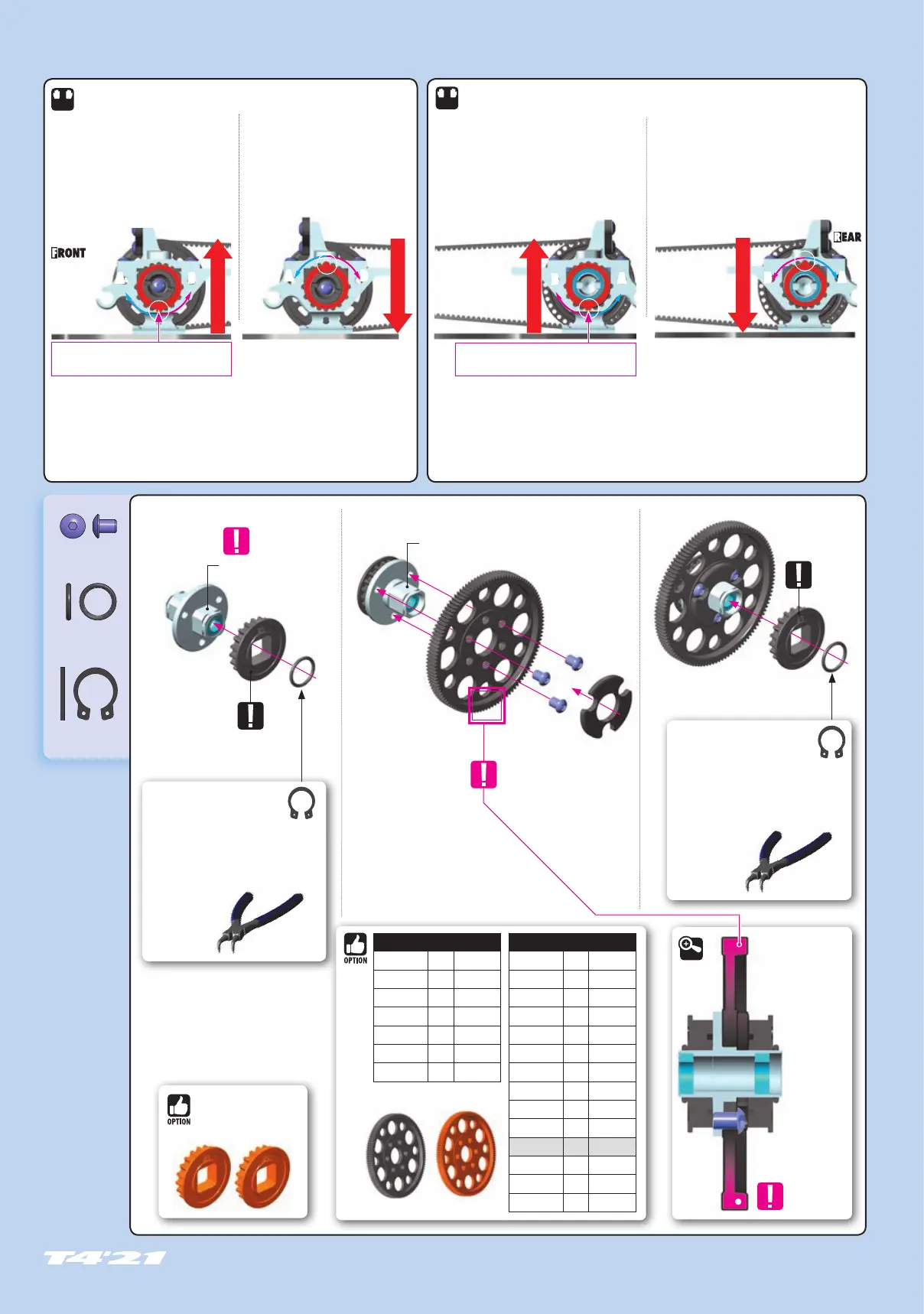

TO TIGHTEN FRONT BELT:
Rotate both front nylon hubs in arrow direction B
TO TIGHTEN REAR BELT:
Rotate both rear nylon hubs in arrow direction B
FRONT BELT TENSION ADJUSTMENT
A
B
REAR BELT TENSION ADJUSTMENT
B
A
L=R
L=R
A B
A
B
TO LOOSEN FRONT BELT:
Rotate both front nylon hubs in arrow direction A
TO LOOSEN REAR BELT:
Rotate both rear nylon hubs in arrow direction A
LOWER DIFF POSITION
UPPER DIFF POSITION
LOWER DIFF POSITION
UPPER DIFF POSITION
Front solid axle LOWER position - tab in top
notch - provides more front traction, but
makes the car push on-power.
Recommended for low-traction tracks.
Recommended for low-medium traction tracks.
Front solid axle UPPER position - tab in bottom
notch - provides more steering, but less front
traction
Recommended for medium-high traction
tracks and technical tracks.
Recommended for medium-high traction tracks.
Rear diff LOWER position - tab in top notch - provides
more rear traction (mainly on-power), makes the
car more stable in chicanes, but makes the car
push on-power.
Rear diff UPPER position - tab in bottom notch -
provides more on-power steering, but makes the
rear slightly more loose.
INITIAL POSITION for CARPET/ASPHALT
Place tab in this BOTTOM NOTCH
INITIAL POSITION for CARPET/ASPHALT
Place tab in this BOTTOM NOTCH
NOTE
ORIENTATION
NOTE
ORIENTATION
NOTE
ORIENTATION
SHORT side
LONG side
2. CENTRAL TRANSMISSION
1. 2. 3.
CUTAWAY VIEW
#305578-O
FIXED PULLEY 20T
GRAPHITE (2)
DETAIL
NOTE
ORIENTATION
NOTE
ORIENTATION
Snap Ring Pliers
#966081 CH-CLIP 8 (10)
INCLUDED IN THE LAST AID BAG
Another alternative to secure the pulley
on the layshaft is to use the Clip which is
included in the “Last Aid” Bag. To mount the
clip on the layshaft, you have to use special
Snap Ring Pliers.
Snap Ring Pliers
#966081 CH-CLIP 8 (10)
INCLUDED IN THE LAST AID BAG
Another alternative to secure the pulley
on the layshaft is to use the Clip which is
included in the “Last Aid” Bag. To mount the
clip on the layshaft, you have to use special
Snap Ring Pliers.
OFFSET SPUR GEARS 48P
#305772 72T OPTION
#305776 76T OPTION
#305778 78T OPTION
#305779 79T OPTION
#305781 81T OPTION
#305784 84T OPTION
#305784-O 84T OPTION
OFFSET SPUR GEARS 64P
#305860 90T OPTION
#305862 92T OPTION
#305866 96T OPTION
#305866-O 96T OPTION
#305869 99T OPTION
#305870 100T OPTION
#305870-O 100T OPTION
#305874 104T OPTION
#305876 106T OPTION
#305878 108T OPTION
#305880 110T INCLUDED
#305880-O 110T OPTION
#305882 112T OPTION
#305884 114T OPTION
