Xray T4'21 User Manual

13
902306
SH M3x6
902306
SH M3x6
902306
SH M3x6

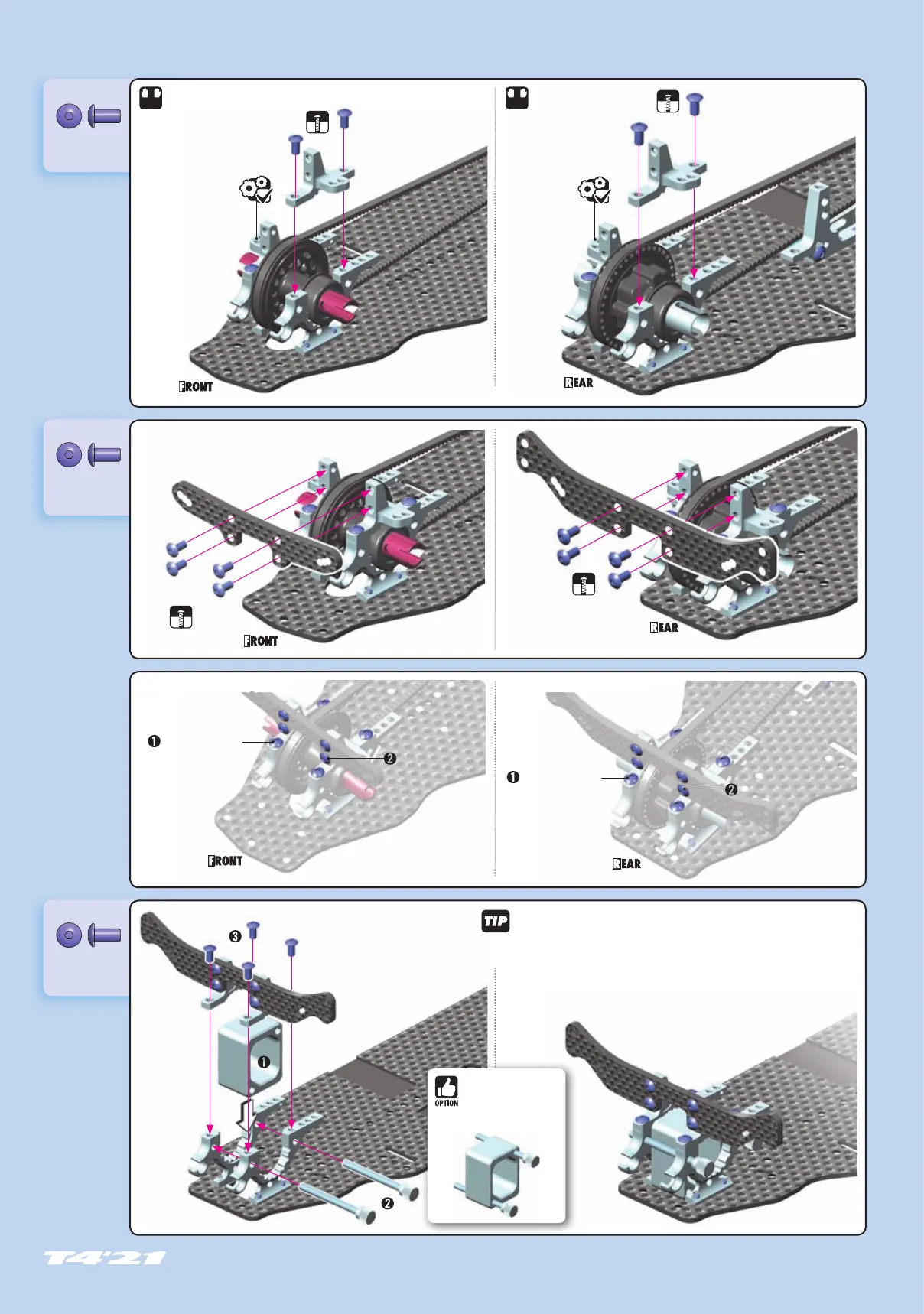

In order to have perfectly aligned bulkheads, we recommend using the
Hudy Professional Bulkhead Alignment tool.
#183001
HUDY PROFESSIONAL
BULKHEAD ALIGNMENT
TOOL 17MM
L=R L=R
DO NOT TIGHTEN FULLY
DO NOT TIGHTEN FULLY
DO NOT TIGHTEN FULLY
DO NOT TIGHTEN FULLY
FINISH TIGHTENING IN THIS ORDER. FINISH TIGHTENING IN THIS ORDER.
FULLY TIGHTEN
FULLY TIGHTEN
FULLY TIGHTEN
FULLY TIGHTEN
Shock tower screws (4)
Shock tower screws (4)
Bulkhead screws (4)
Bulkhead screws (4)
2. CENTRAL TRANSMISSION
