Xray X10 - Page 27

27
DETAIL

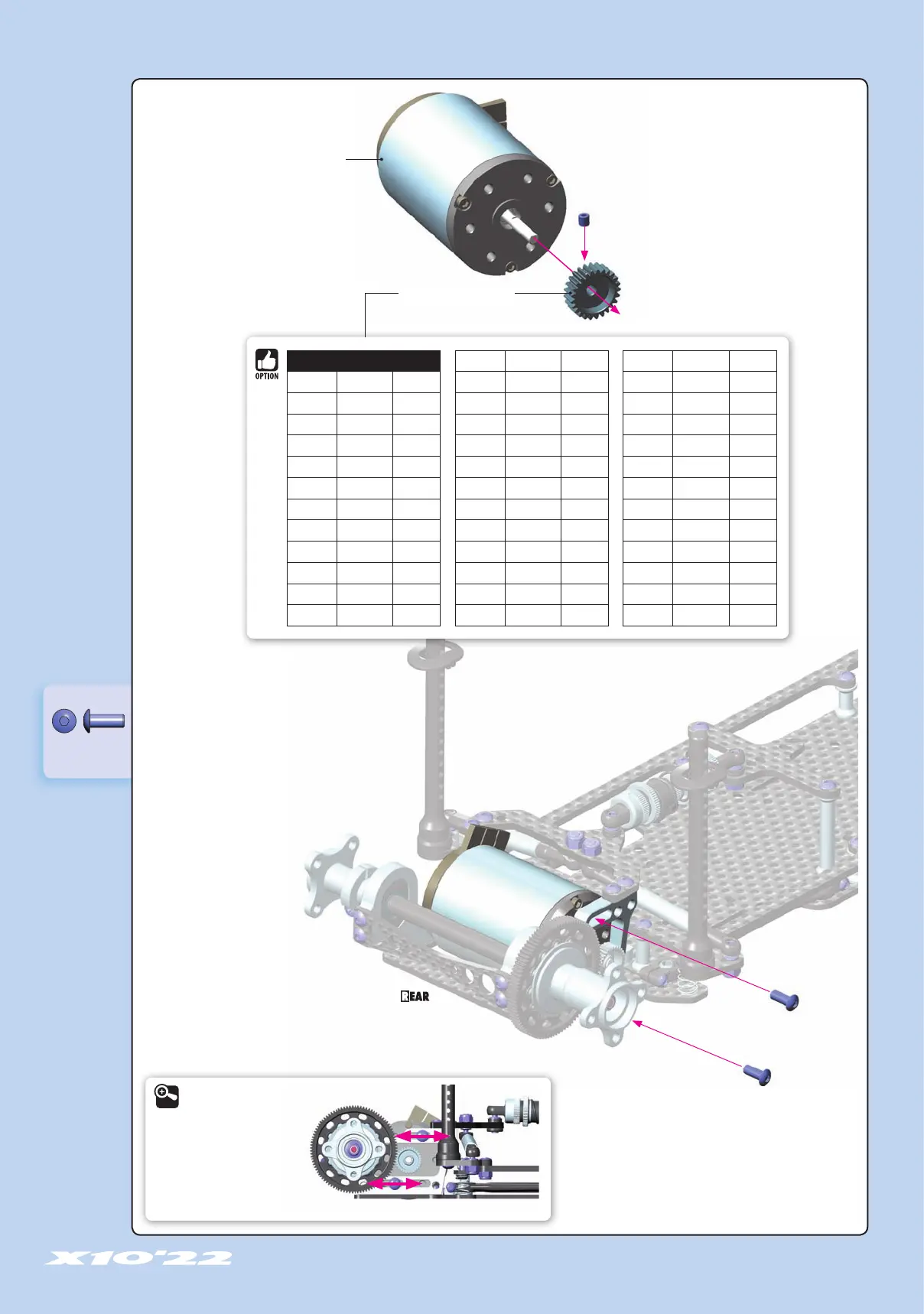

5. FINAL ASSEMBLY
Adjust the gear mesh so there
is appropriate space between
the spur gear and pinion teeth.
There should be a very small
amount of free play.
GEAR MESH
Motor
(NOT INCLUDED)
902308
SH M3x8
PINION GEARS ALU HARDCOATED
#305968 18T / 64P OPTION
#305969 19T / 64P OPTION
#305970 20T / 64P OPTION
#305971 21T / 64P OPTION
#305972 22T / 64P OPTION
#305973 23T / 64P OPTION
#305974 24T / 64P OPTION
#305975 25T / 64P OPTION
#305976 26T / 64P OPTION
#305977 27T / 64P OPTION
#294128 28T / 64P OPTION
#305979 29T / 64P OPTION
#294130 30T / 64P OPTION
#294131 31T / 64P OPTION
#305982 32T / 64P OPTION
#294133 33T / 64P OPTION
#305984 34T / 64P OPTION
#305985 35T / 64P OPTION
#294136 36T / 64P OPTION
#294137 37T / 64P OPTION
#294138 38T / 64P OPTION
#294139 39T / 64P OPTION
#294140 40T / 64P OPTION
#294141 41T / 64P OPTION
#294142 42T / 64P OPTION
Pinion (NOT INCLUDED)
Screw (NOT INCLUDED)
#294143 43T / 64P OPTION
#294144 44T / 64P OPTION
#294145 45T / 64P OPTION
#305996 46T / 64P OPTION
#294147 47T / 64P OPTION
#294148 48T / 64P OPTION
#294149 49T / 64P OPTION
#294150 50T / 64P OPTION
#294152 52T / 64P OPTION
#294154 54T / 64P OPTION
#294156 56T / 64P OPTION
#294158 58T / 64P OPTION
#294160 60T / 64P OPTION
