5. FINAL ASSEMBLY
903305
SFH M3x5
903305
SFH M3x5
Receiver
(NOT INCLUDED)
Receiver
(NOT INCLUDED)
Speed Controller
(NOT INCLUDED)
Speed Controller
(NOT INCLUDED)
Double-sided Tape
(HUDY #107875)
(NOT INCLUDED)
Double-sided Tape
(HUDY #107875)
(NOT INCLUDED)

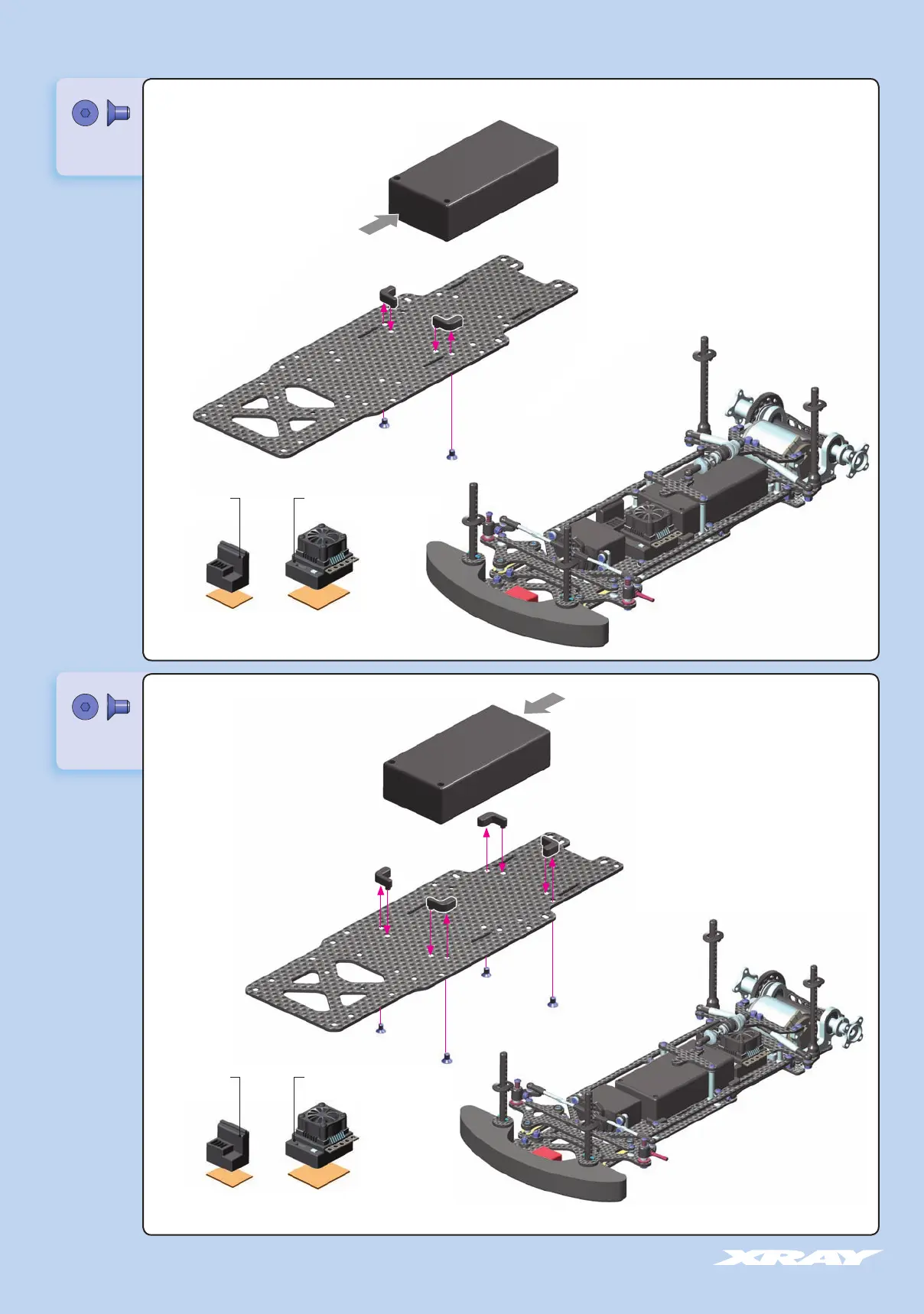

ELECTRONICS CONFIGURATION:
FORWARD POSITION
ELECTRONICS CONFIGURATION:
REARWARD POSITION (INITIAL POSITION)
Battery Pack
(NOT INCLUDED)
Battery Pack
(NOT INCLUDED)
When inserting or removing the battery pack,
remove the forward shock mount graphite plate.
When inserting or removing the battery pack,
remove the forward shock mount graphite plate.
