2. REAR TRANSMISSION
901504
SB M5x4
EXTREMELY IMPORTANT
Hub must be inserted in
groove and properly pressed
into bulkhead.
Check that left and right Diff Height Inserts
are installed in the same orientation.
The cover must be aligned
with Labyrinth Groove and
then pressed into place.

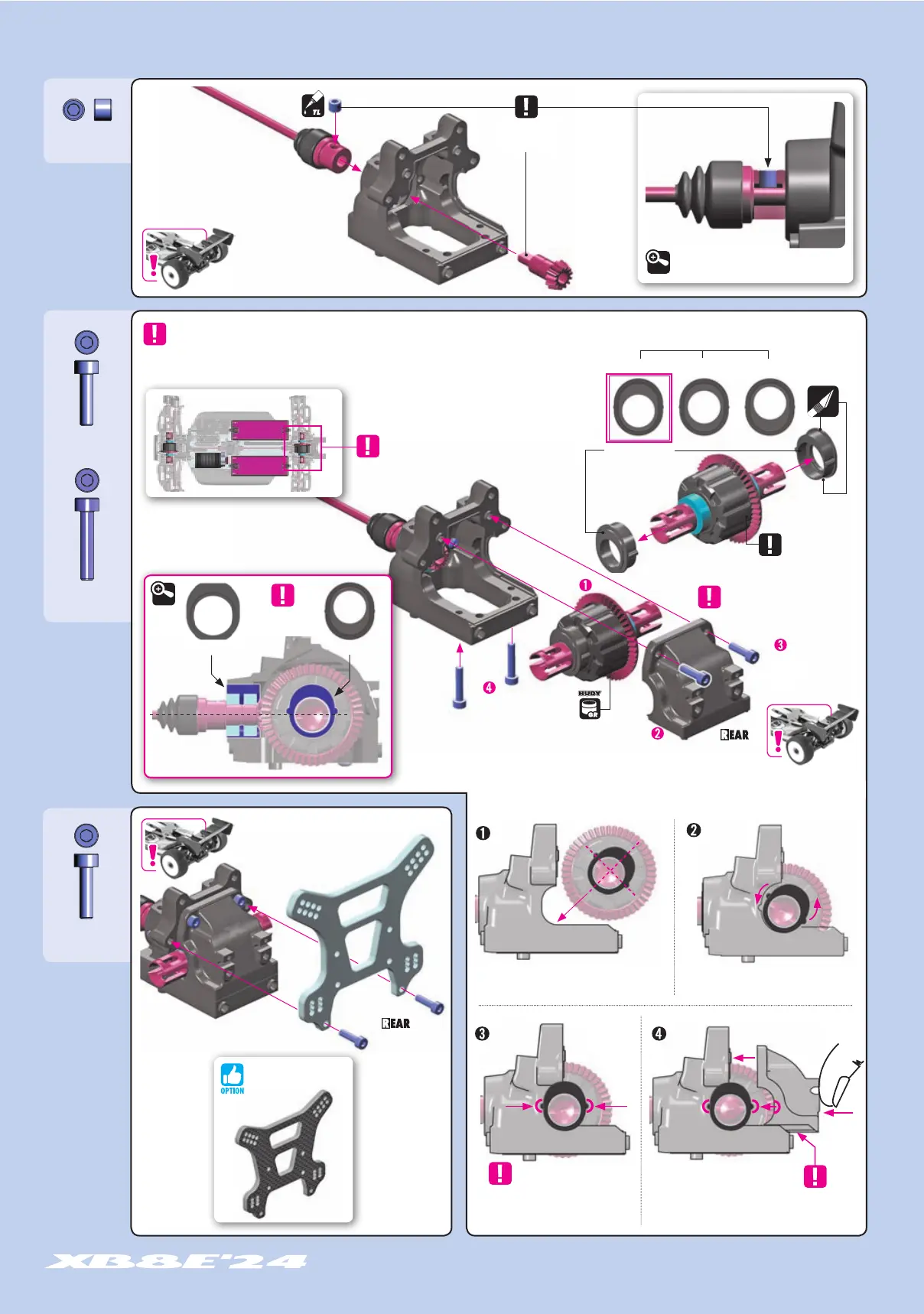

INSTALLING THE DIFFERENTIAL WHILE FIRST TIME BUILDING THE CAR
LOWER CENTER
BALL-BEARING HUB
POSITIONS
UPPER
INITIAL SETTING
TIGHTEN
3x12mm SCREWS
FIRST
TIGHTEN
3x16mm SCREWS
SECOND
LOWER
Bevel & Differential
LOWER LOWER
DETAIL
NOTE DIFF ORIENTATION
NOTE DIFF
ORIENTATION
➊
➌
REAR DIFF 3.000cSt
Graphite Grease
(HUDY #106210)
Push joint against gear to remove gap.
Tighten setscrew onto gear flat spot.
DETAIL
908312
SCH M3x12
STEP
DETAIL
➌
➋
NOTE
ORIENTATION
During initial assembly, there is no need to check gear mesh or diff play. Fitment should not be checked until
suspension holders are installed on the bulkheads and the complete assembly is mounted to the chassis. All parts
have specifically designed tolerances for proper operation once fully assembled. After assembly, check for free
rotation of all drivetrain parts and non-binding movement of the suspension.
908312
SCH M3x12
908316
SCH M3x16
Tighten 3x12mm screws first,
then tighten 3x16 screws.
1x
2x
2x
2x
#353055
GRAPHITE REAR SHOCK
TOWER 4mm
Cut off burr
