Xray XB8E User Manual

8
BAG 01.1.9
46T - Modul 1
355072
940816
903312
355056
971061
355031
355031
355031
964030
971061
355023
940816
355092
964060
964060
964030
355031
980261
355082
355072
BAG 00.9
BAG 00.9

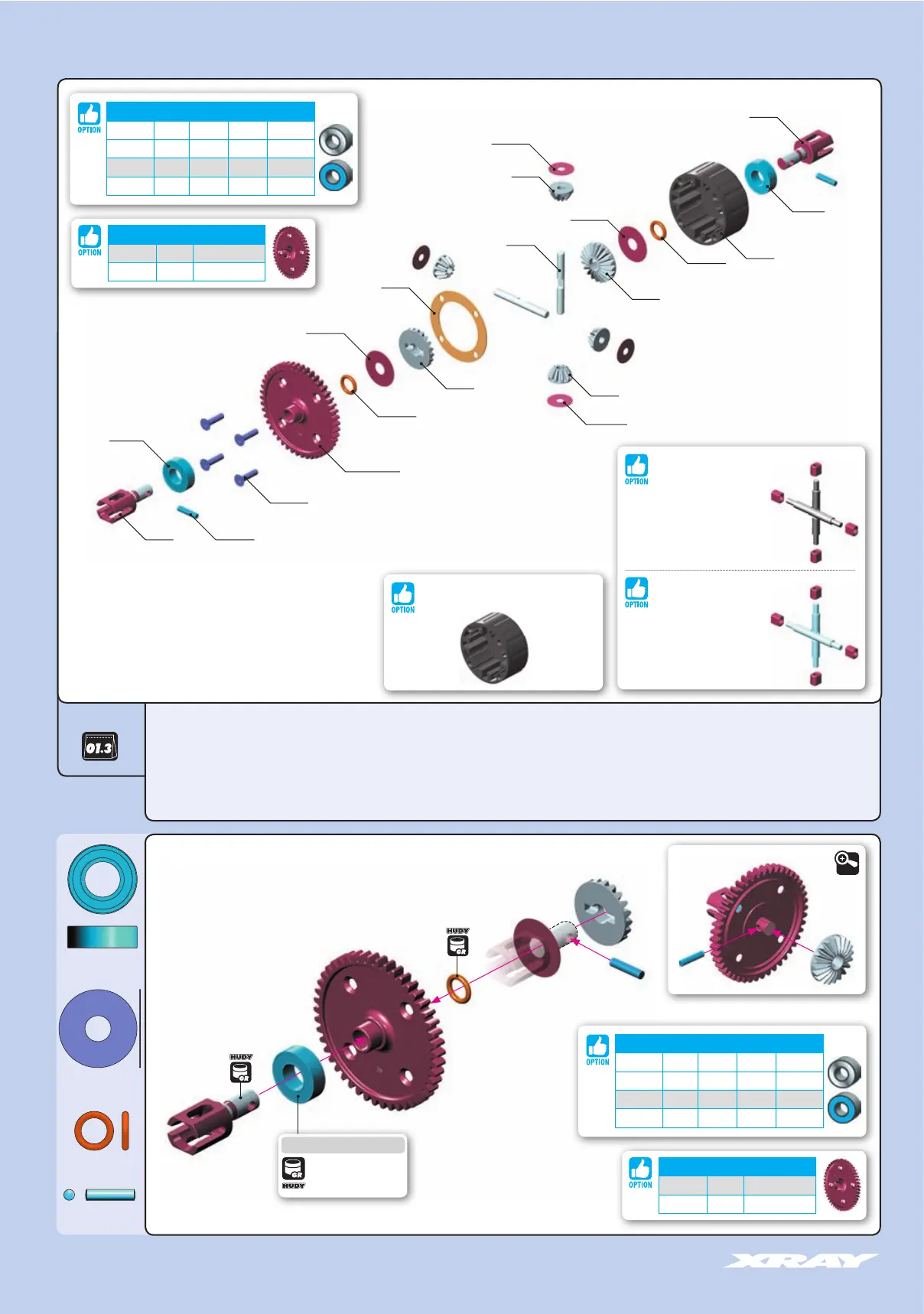

1. CENTER DIFFERENTIAL
940816
BB 8x16x5
971061
O 6x1.55
964060
S 6x18x0.2
980261
P 2.5x11.5
XRAY BALL-BEARINGS
#930816 8x16x5 GREASE STEEL OPTION
#930817 8x16x5 OIL STEEL OPTION
#940816 8x16x5 GREASE RUBBER INCLUDED
#940817 8x16x5 OIL RUBBER OPTION
CENTER DIFF SPUR GEARS - LARGE
#355056 46T INCLUDED
#355057 47T OPTION
#355023-G
CENTER DIFFERENTIAL CASE - V2 - GRAPHITE
#355087
HEAT-RESISTANT CENTER ALU DIFF
PINS + INSERTS (SET)
#355083
HEAT-RESISTANT CENTER STEEL DIFF
PINS + INSERTS (SET)
1x
1x
1x
1x
BAG
355013 CENTER DIFFERENTIAL - LARGE - SET - V2
355023 CENTER DIFFERENTIAL CASE - V2
355031 STEEL DIFF BEVEL & SATELLITE GEARS - V2 (2+4)
355056 CENTER DIFF SPUR GEAR 46T - LARGE
355072 LARGE CENTER DIFF OUTDRIVE ADAPTER - HUDY STEEL (2)
355082 CENTER DIFF PIN (2)
355092 CENTER DIFF GASKET (2)
903312 HEX SCREW SFH M3x12 (10)
940816 BALL-BEARING 8x16x5 RUBBER SEALED - GREASE (2)
964030 WASHER S 3.5x12x0.2 (10)
964060 WASHER S 6x18x0.2 (10)
971061 SILICONE O-RING 6x1.55 (10)
980261 PIN 2.5x11.5 (10)
➊
➋
➌
➍
➎
➏
STEP DETAIL
➎
➏
➏➎
DETAIL
BAG 01.1.9
BAG 01.1.9
BAG 01.1.9
BAG 01.1.9
BAG 01.1.9
BAG 01.1.9
BAG 01.1.9
XRAY BALL-BEARINGS
#930816 8x16x5 GREASE STEEL OPTION
#930817 8x16x5 OIL STEEL OPTION
#940816 8x16x5 GREASE RUBBER INCLUDED
#940817 8x16x5 OIL RUBBER OPTION
CENTER DIFF SPUR GEARS - LARGE
#355056 46T INCLUDED
#355057 47T OPTION
Graphite Grease
(HUDY #106210)
Graphite Grease
(HUDY #106210)
Use HUDY Ball-Bearing Grease
#106220 - STANDARD
#106221 - BLUE
#106222 - RED
46T - Modul 1

Xray XB8E Specifications

General

Chassis	7075 T6 Aluminum
Drivetrain	4WD
Shock Type	Big Bore
Motor	Not included
Battery	Not included
