9
DIFFERENTIAL OIL
➎
971061
O 6x1.55
964060
S 6x18x0.2
940816
BB 8x16x5
➊
➋
➍
➎
➏
➌
Graphite Grease
(HUDY #106210)
Graphite Grease
(HUDY #106210)
32.3~32.5 mm
After assembly the differential
should have a length of 32.3~32.5
mm measured from the ends of
the installed ball-bearings. If the
differential is longer, check that the
gear is properly seated on the case
and retigthten the 4 screws while
holding the spur gear.

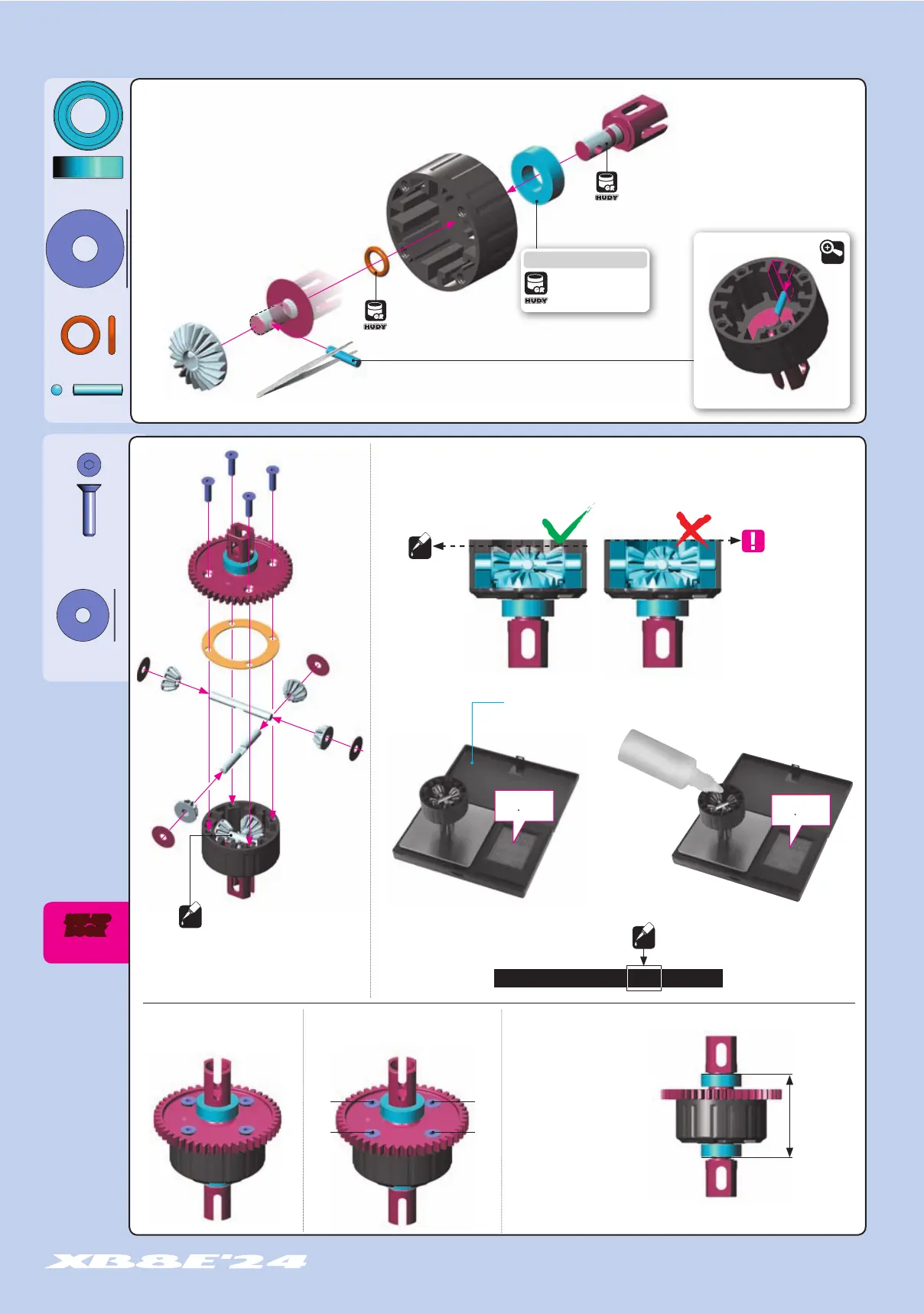

1. CENTER DIFFERENTIAL
964030
S 3.5x12x0.2
903312
SFH M3x12
Tighten the screws equally. Finish tightening in this order:
➊
➋
➌
➍
STEP DETAIL
Use the following silicone oil included in the kit for initial setting:
Center diff: 7.000cSt
DETAIL
BOOK
SET-UP
OIL
Fill the differentials
with oil just above the
satellite gears.
IMPORTANT!
VERY IMPORTANT!
OIL
INCORRECT
CORRECT
DO NOT overfill the differential.
If there is too much oil in the
differential, it may leak after it
cools down after use.
Center diff:
Silicone oil 7.000cSt
Fill to just above the satellite gears.
980261
P 2.5x11.5
#107865 HUDY Ultimate Digital Pocket Scale 300g±0.01g
1. Put the diff (without oil) on the scale and
check the weight (approximately 42.97g).
2. Slowly pour oil into the diff and watch the
weight. Add 5.20g of oil into the diff. The
approximate weight of the diff+oil is 48.17g.
To ensure you have the same amount of oil from rebuild to rebuild, do the following:
OIL
42.97g + 5.20g = 48.17g
CENTER DIFF
Center diff 7.000cSt
g
48.17
g
42.97
Use HUDY Ball-Bearing Grease
#106220 - STANDARD
#106221 - BLUE
#106222 - RED
1x
1x
1x
1x
4x
4x
