Xray XB8E User Manual

14
BAG

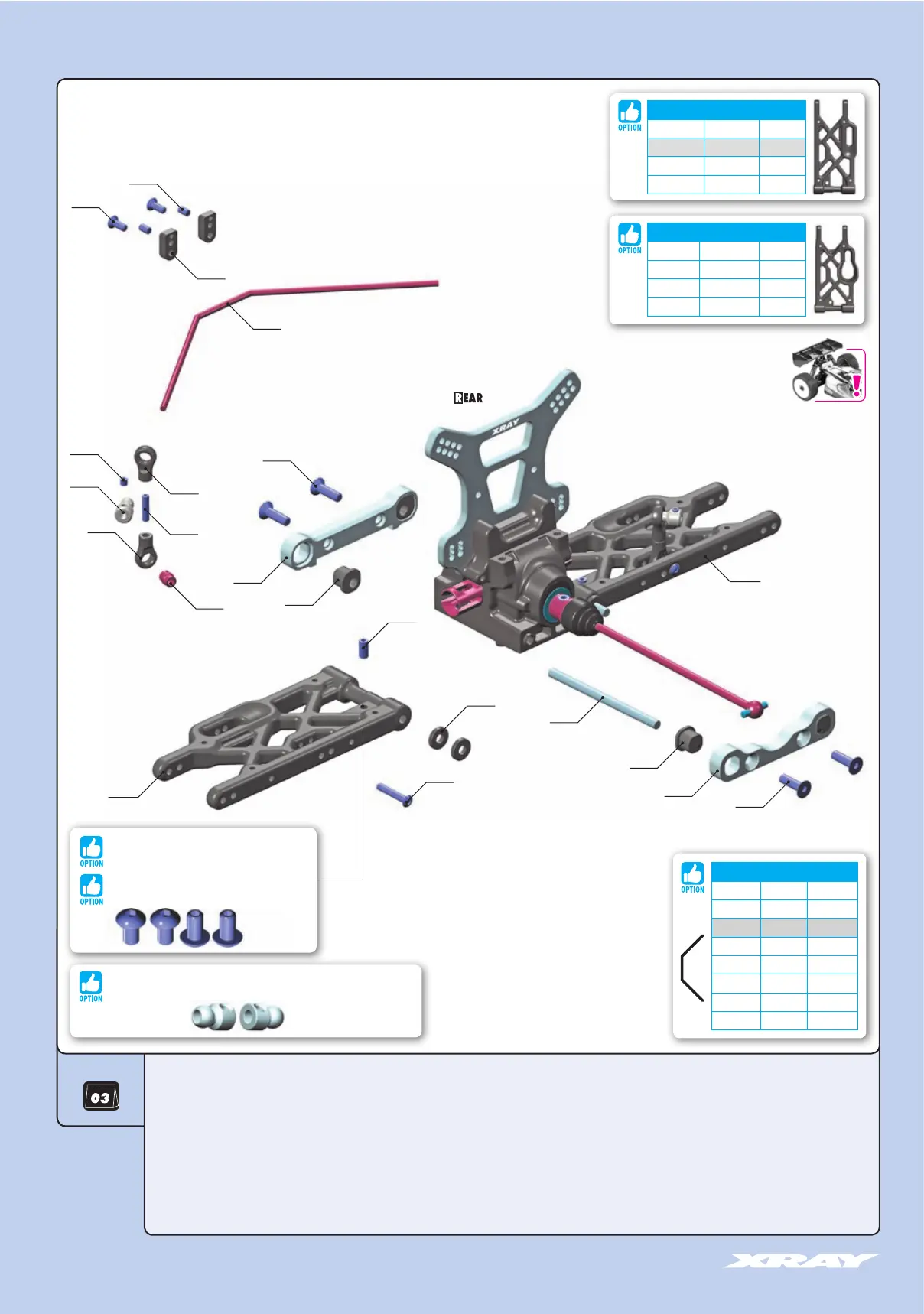

3. REAR SUSPENSION
353424
353334
352314
353371
352009
903416
353333
352314
357212
902318
353116
901305
901303
333450
352470
901312
352470
352460
333450 ANTI-ROLL BAR BALL JOINT 5.8mm (2)
352009 SEMI-SPLIT DIFF BULKHEAD BLOCK SET FRONT/REAR
352314 COMPOSITE ECCENTRIC BUSHINGS - V2 (2)
352460 PIVOT BALL 5.8 (10)
352470 BALL JOINT 5.8 (8)
353116 COMPOSITE REAR LOWER SUSPENSION ARM - HARD
353333 ALU REAR LOWER SUSP. HOLDER FOR SEMI-SPLIT BULKHEAD - FRONT
353334 ALU REAR LOWER SUSP. HOLDER FOR SEMI-SPLIT BULKHEAD - REAR
353371 SET OF COMPOSITE LOWER ARM SHIMS
353424 REAR ANTI-ROLL BAR 2.4mm
357212 LOWER INNER PIVOT PIN F+R (2)
903308
903416
901408
353116
901303 HEX SCREW SB M3x3 (10)
901305 HEX SCREW SB M3x5 (10)
901312 HEX SCREW SB M3x12 (10)
901408 HEX SCREW SB M4x8 (10)
902318 HEX SCREW SH M3x18 (10)
903308 HEX SCREW SFH M3x8 (10))
903416 HEX SCREW SFH M4x16 (10))
FLAT - REAR SUSPENSION ARMS
#353115 MEDIUM OPTION
#353116 HARD INCLUDED
#353116-XH X-HARD OPTION
#353116-G GRAPHITE OPTION
LSM - REAR SUSPENSION ARMS
#353124-H HARD (R) OPTION
#353125-H HARD (L) OPTION
#353124-G GRAPHITE (R) OPTION
#353125-G GRAPHITE (L) OPTION
#902407
HEX SCREW SH M4x7 WITH HEX FROM BOTTOM (4)
#902409
HEX SCREW SH M4x10 WITH HEX FROM BOTTOM (4)
#333451
ALU ANTI-ROLL BAR PIVOT BALL 5.8mm - SWISS 7075 T6 - HARDCOATED (2)
REAR ANTI-ROLL BARS
#353420 ø2.0mm OPTION
#353422 ø2.2mm OPTION
#353424 ø2.4mm INCLUDED
#353425 ø2.5mm OPTION
#353426 ø2.6mm OPTION
#353428 ø2.8mm OPTION
#353430 ø3.0mm OPTION
#353432 ø3.2mm OPTION
